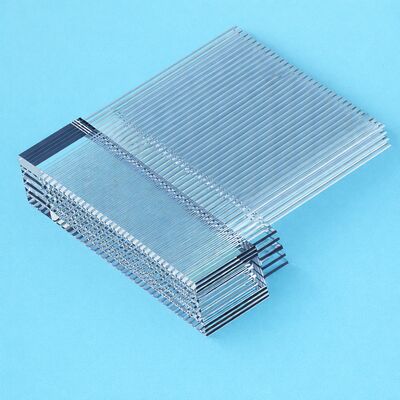

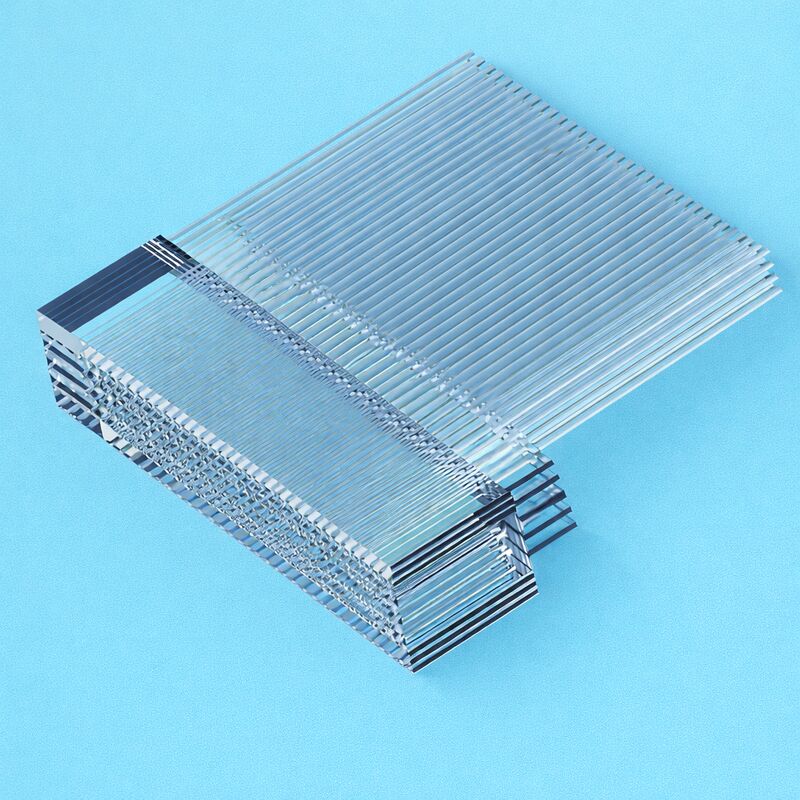

2D FA (Two-Dimensional Fiber Array) — 16-Channel To 1024-Channel Configurations For Optical Interconnects, Silicon Photonics, And High-Density Optical Packaging
This 2D FA is a two-dimensional fiber array assembly designed for high-density optical interconnects and advanced photonic packaging applications. It supports various high-channel configurations—including 16, 32, 64, 128, 256, 512, and 1024 channels—and operates within the 1260–1650 nm wavelength range. Constructed using glass or ceramic materials, the product features a 2D matrix array structure with a core pitch of 127 μm. The core pitch tolerance is strictly controlled to within ±1 μm, making it ideally suited for applications demanding high array precision, channel uniformity, and high-density spatial arrangement. The device exhibits an insertion loss of ≤0.8 dB (with a typical value of 0.5 dB) and a return loss of ≥40 dB for UPC and ≥50 dB for APC, thereby enhancing system coupling efficiency and transmission stability.
| Parameter | Unit | 16 | 32 | 64 | 128 | 256 | 512 | 1024 | |
|---|---|---|---|---|---|---|---|---|---|
| Wavelength | nm | 1260–1650 | |||||||
| Materials | - | Glass / Ceramic | |||||||
| Geometry | 2D Matrix | ||||||||
| CorePitch | - | 127um | |||||||
| Core Pitch Tolerance | μm | ±1 | |||||||
| Insertion Loss | dB | ≤0.8 (typical 0.5) | |||||||
| Return Loss | dB | UPC ≥40, APC ≥50 | |||||||
| Fiber Type | - | OM1/OM2/OM3/OM4/OM5/G67A1/ A2/ B3 or Customized | |||||||
| Fiber Coating | um | 250 µm / 350 µm | |||||||
| Fiber Type Length | cm | 100+/-10 or customized | |||||||
| Connector | - | FC/LC/SC/E2000/MT/MPO/MMC | |||||||
| Operation Temperature | °C | -5~65 | |||||||
| Storage Temperature | °C | -40~85 | |||||||
