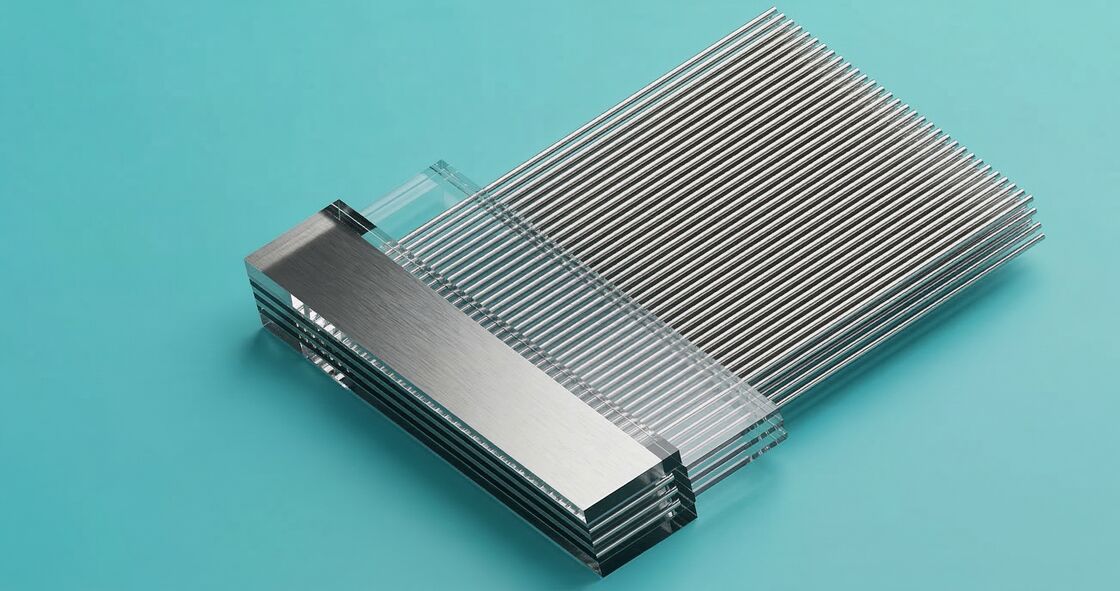

Ultra High Density 2D Fiber Array Unit 16 Channels To 1024 Channels

Ultra High Density 2D Fiber Array Unit 16 Channels To 1024 Channels

Brand Name: Gracyfiber
MOQ: 100pcs
Payment Terms: L/C,T/T
Supply Ability: 100,000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong , China
Certification:
ISO9001 , ROHS
Fiber Pitch:
250 µm Standard
Operating Temperature:
-40°C To 85°C
Connector Type:
FC, SC, LC, MPO (customizable)
Operating Wavelength:
1260 Nm To 1625 Nm
Return Loss:
> 55 DB
Insertion Loss:
< 0.3 DB
Supply Ability:
100,000 pieces per month
Highlight:

High Density 2D Fiber Array

,

2D Matrix Fiber Array Unit

,

2D Fiber Array Unit

Product Description

Ultra-High Density 2D Fiber Array - 16 To 1024 Channels

1. Product Overview

  GRACYFIBER's 2D Fiber Array (FA) is a high-precision optical interface component designed to break through I/O bottlenecks in AI computing infrastructure and high-performance computing (HPC).

2. Product Features
Parameter Unit 16 32 64 128 256 512 1024
Wavelength nm 1260–1650
Materials - Glass / Ceramic
Geometry
2D Matrix
CorePitch - 127um
Core Pitch Tolerance μm ±1
Insertion Loss dB ≤0.8ypical 0.5)
Return Loss dB UPC≥40, APC≥50
 Fiber Type - OM1/OM2/OM3/OM4/OM5/G67A1/ A2/ B3 or Customized
Fiber Coating um 250 µm / 350 µm
 Fiber Type Length cm 100+/-10  or customized
Connector - .FC/LC/SC/E2000/MT/MPO/MMC
Operation Temperature °C -5~65
Storage Temperature °C -40~85


Features: Matrix architecture and ultra-high channel density (16 to 1024 channels)


Features: Micron-level alignment control and superior channel-to-channel uniformity


Features: Extremely low optical crosstalk and ultra-low insertion loss (≤ 0.8 dB, typical 0.5 dB)


Features: Precision substrate material (glass / ceramic)


Features: Comprehensive fiber compatibility (supports SM, MM, PM)


3. Applications
  1. AI/GPU Optical Interconnects
  2. Co-Packaged Optics (CPO)
  3. 800G/1.6T and higher speed optical modules
  4. Silicon Photonics Packaging
  5. High-Performance Computing (HPC)
  6. Optical Engines
