2D PM Fiber Array High Precision Fiber Array Matrix Quartz Silicon For WSS OXC MEMS Switch 2D Collimator And Optical Sensing

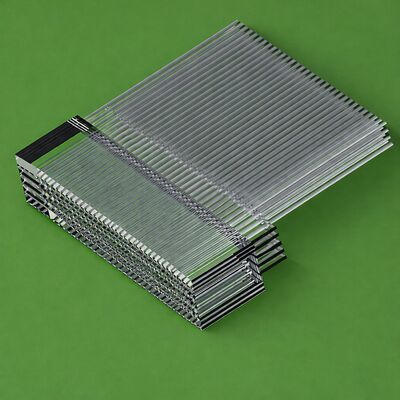

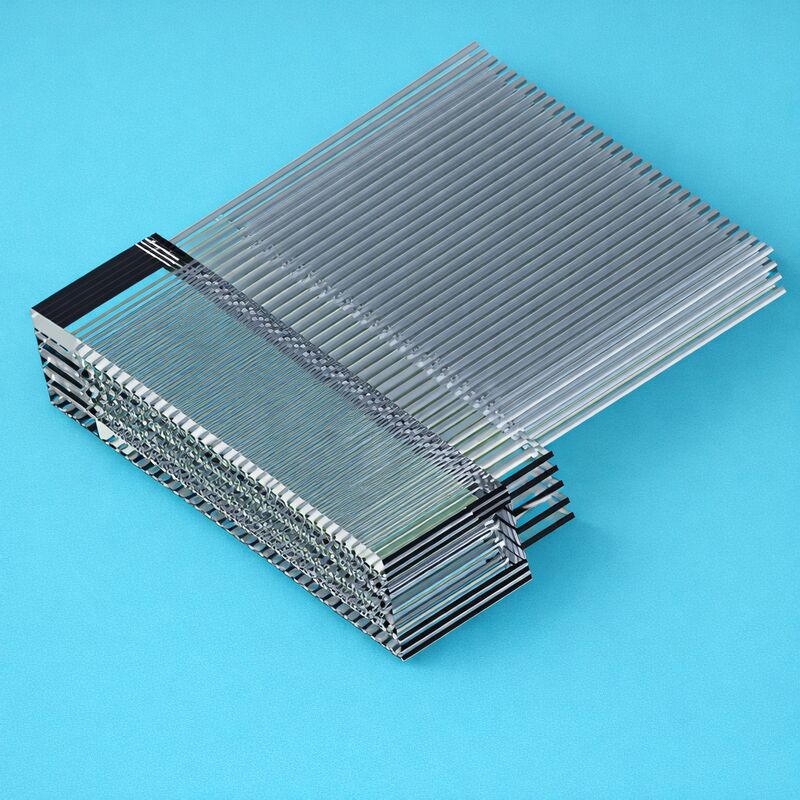

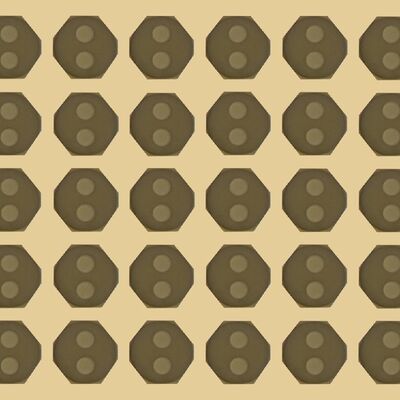

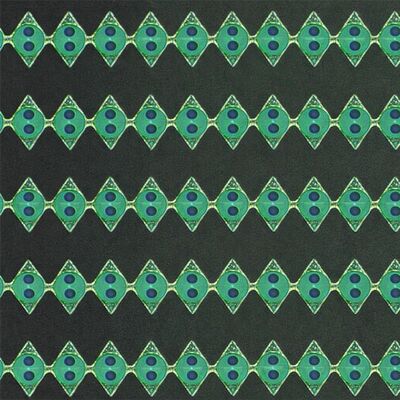

A high-quality 2D fiber array is a high-precision component that arranges optical fibers in a matrix (M * N) configuration. This product typically uses glass or ceramic as the faceplate to fix the fiber positions.
Key Features:
Matrix Arrangement: Supports M * N matrix arrangements (where M, N < 30), or arbitrary pattern arrangements according to customer requirements.
High-Precision Positioning:
Glass Faceplate: Tolerance < 1μm.
Ceramic Faceplate: Tolerance < 2μm.
Diverse Fiber Options: Supports single-mode (SM), multimode (MM), and polarization-maintaining (PM) fibers.
Flexible Configuration:
Fiber Pitch: Standard 250μm or 500μm, also customizable to customer specifications.
High Reliability and Low Cost: Providing a cost-effective solution while ensuring 2D alignment accuracy.
|

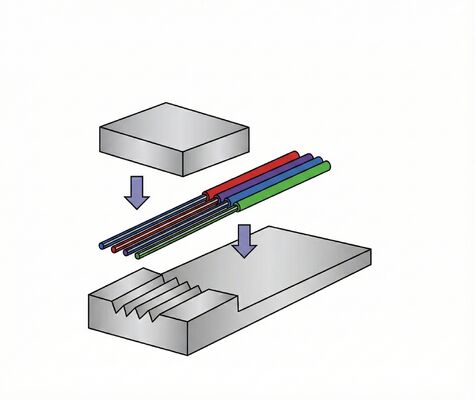

Material |
Quartz& Silicon |
|||||||
|
V-groove core pitch |
μm |
127/250/500(±0.5)or customer specified |
||||||
|
wavelength |
|
460 780 980 1060 1310 |
||||||
|
Polishing angle |
degree |
90°(±0.3°) |
||||||
|
Number of channels |
1 |
2 |
4 |
8 |
16 |
32 |
64 |
|
|
Channel spacing |
μm |
|
250 |
127 |
127 |
127 |
127 |
127 |
|
Package |
mm |
6x2.5x2.5 |
10x2.5x2.5 |
10x2.5x2.5 |
10x2.5x2.5 |
12x3.5x2.5 |
12x5.7x2.5 |
12X9.7X2.5 |
|
Extinction ratio |
dB |
≥25 |
≥25 |
≥23 |
≥21 |
≥20 |
≥16 |
≥15 |
|
PM Fiber Alignment |
PM orientation Ⅱ |
|||||||
|
Fiber Type |
Corning PM15-U25D |
|||||||
|
Fiber Length |
1+/-0.1m |
|||||||
|
Connector |
FC/APC(Slow Axis Alignment Key) |
|||||||
|
Operating Temperature (℃) |
-5～65 |
|||||||
|
Storage Temperature (℃) |
-40～85 |
|||||||
2D fiber optic arrays are key components for realizing massively parallel optical transmission and switching, primarily used in:
Wavelength Selective Switches (WSS): Core components in ROADM systems.
Optical Cross Connects (OXC): Enable dynamic routing in all-optical networks.
2D Collimator Arrays: The basic component of collimator arrays.
MEMS Switches: Used in conjunction with MEMS micromirror arrays.
Fiber Optic Sensor Systems: Used for imaging or distributed sensing.
