1x2 2x2 Fused Polarization Maintaining Fiber Coupler FBT Splitter Combiner 1310nm 1550nm 980nm 1064nm 780nm

At the application level, the Fused PM Fiber Coupler primarily serves various polarization-sensitive fiber optic systems. In EDFA fiber amplifiers, it can serve as a splitter/combiner on the input or output side for signal splitting, cascade amplification, or online power monitoring. In fiber optic instruments, it can act as an internal fixed coupler for building interferometric optical paths, coherent detection links, or polarization correlation measurement channels. In coherent communication systems, it can distribute the input signal to the local oscillator, monitoring, or backup branches according to a set splitting ratio, making it a crucial basic component of the front-end optical path. In power monitoring and fiber optic sensing systems, it is often used to extract a small portion of power from the main channel for real-time monitoring or to excite sensing probes, improving system observability and security without significantly impacting the main service link.

In terms of performance indicators, this series of polarization-maintaining fused couplings combines advantages such as low insertion loss, high extinction ratio, high return loss, and high directivity. Typical excess loss is ≤0.6dB for P-class and ≤0.8dB for A-class, maintaining overall loss control across various splitting ratios. At operating wavelengths of 1310/1550nm and 980/1064nm, the polarization extinction ratio can reach ≥20dB (P-class) / ≥18dB (A-class), ensuring good polarization selectivity in the polarization-maintaining link. Return loss is ≥55dB, and directivity is ≥55dB, effectively suppressing interference from end-face reflections and crosstalk on the pre-amplifier, amplifier, and high-sensitivity detector. Regarding splitting ratios, the insertion loss is ≤3.6dB for 50/50 P-class and ≤7.8/1.6dB for 20/80 splitting ends, respectively. Clear upper limits for insertion loss are also given for 15/85, 5/95, and 1/99, facilitating link budgeting and performance simulation by engineers. Power handling capacity is available in 1W, 3W, 5W, and 10W options, with an operating temperature range of -5～+65℃ and a storage temperature range of -40～+80℃, making it suitable for long-term stable operation in communication equipment rooms, laboratories, and even some industrial environments.

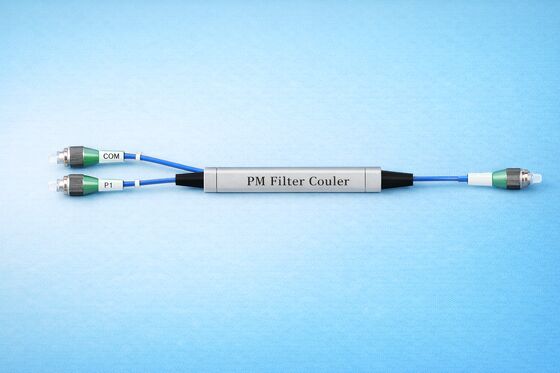

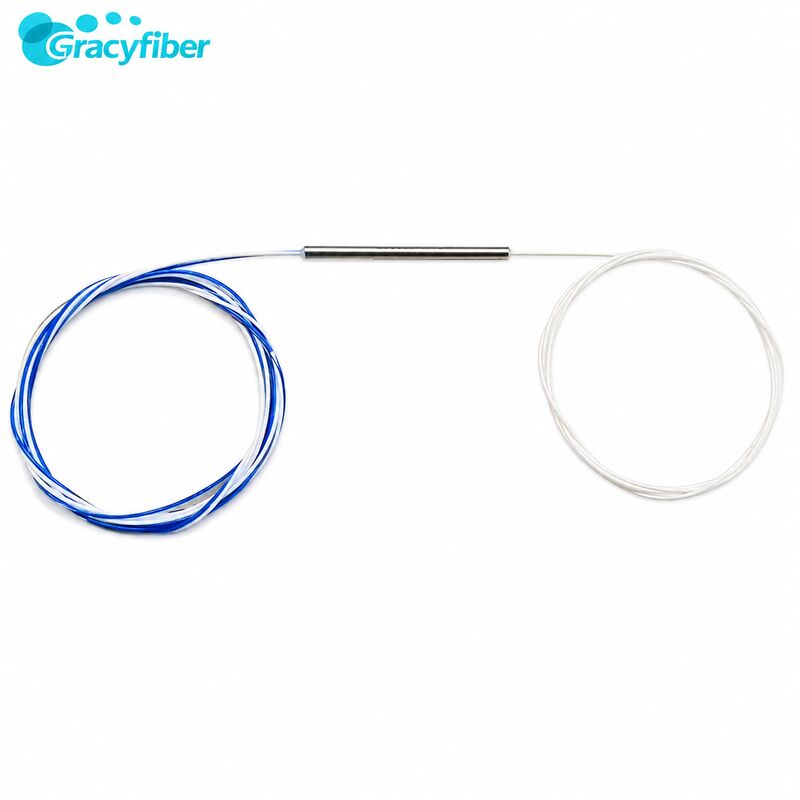

From a system integration and engineering implementation perspective, this 1*2 / 2*2 Fused PM Fiber Coupler is ideally suited as a polarization-maintaining power distribution/combining node within modules or at the chassis level. Depending on the packaging, options include: 250μm bare fiber with a φ3.0*45mm steel tube (ST1), and 0.9mm loose sleeve with a φ3.0*54mm steel tube (ST2), suitable for installation inside optical modules or compact instruments; the 2.0/3.0mm sheathed version uses a 90*20*10mm box package (SB), more suitable for mounting on 1U/2U chassis or experimental optical circuit boards. A 1*2 structure allows for splitting or combining single-channel signals, while a 2*2 structure can be used for bidirectional links, coupled/disconnected combinations, or ring topologies. With different splitting ratio configurations, such as 50/50 for dual-channel equal-power output, 20/80 or 5/95 for "service + monitoring" structures, and 1/99 for micro-sample monitoring, various system solutions can be flexibly deployed without changing the main frame.

Compared to ordinary single-mode fused couplers, the Fused PM Fiber Coupler's advantages are primarily reflected in its superior polarization maintenance capability and parameter controllability. The product uses Panda polarization-maintaining fiber, and the default connector key alignment with the slow axis allows engineers to clearly identify the polarization direction during splicing, wiring, and installation, effectively reducing the impact of random polarization drift on power, phase, and measurement stability. Simultaneously, the device offers P-class and A-class accuracy specifications, allowing users to flexibly choose according to different system requirements for insertion loss and cost. Multiple operating wavelengths, splitting ratios, and package sizes enable the same product series to cover a wide range of applications, from communication amplifiers and coherent receivers to laser systems and sensing systems, reducing model fragmentation. The specifications also clearly state that with the connector, insertion loss increases by approximately 0.3dB, return loss decreases by approximately 5dB, and extinction ratio decreases by approximately 2dB, providing transparent and reliable parameter boundaries for link design and simulation, facilitating accurate modeling and risk assessment during the solution phase.

In summary, the 1*2 / 2*2 Fused PM Fiber Coupler is a core component for polarization-sensitive applications such as EDFA, fiber optic instruments, coherent communication, power monitoring, and fiber optic sensing. Through FBT fusion processing + Panda polarization-maintaining fiber + multiple splitting ratios and packaging options, it achieves a good balance between low insertion loss, high extinction ratio, high return loss, high directivity, and high power handling capacity. It meets the stability and consistency requirements of mass-produced equipment while providing flexible and reconfigurable optical path nodes for experimental platforms. For equipment manufacturers and system integrators who want to achieve high-quality polarization-maintaining power distribution and combining within limited space while reducing system complexity and maintenance costs, this polarization-maintaining fusion coupler is undoubtedly a top priority when building high-performance fiber optic solutions.
