| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |

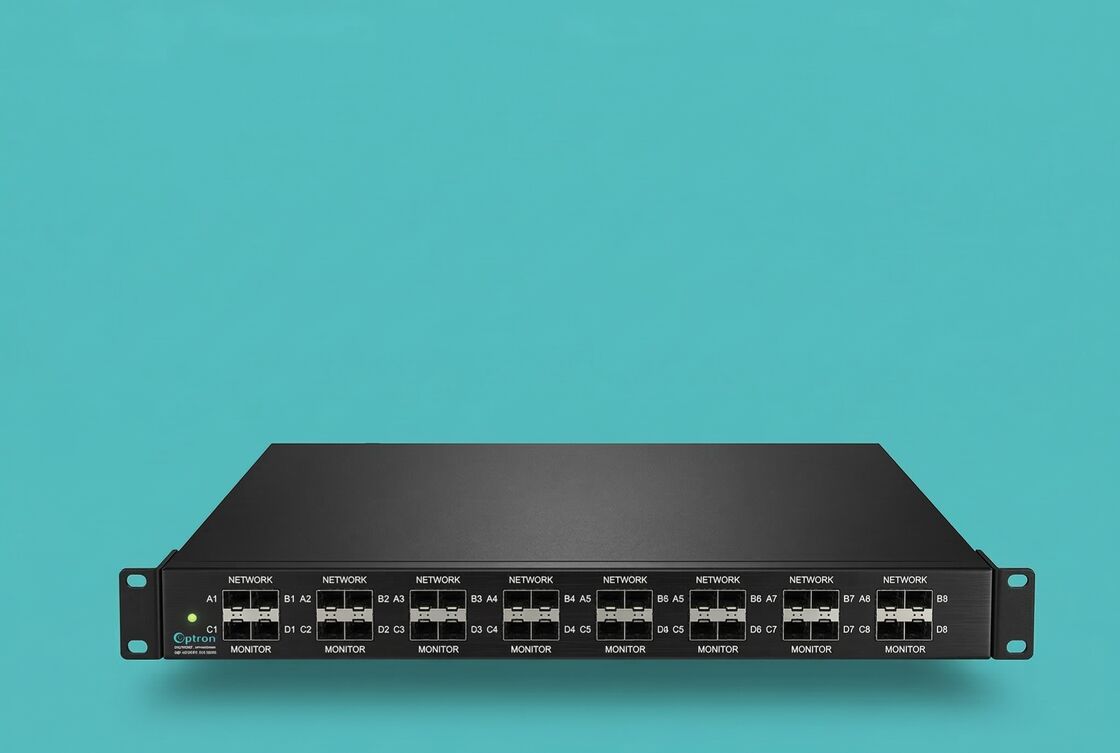

GRACYFIBER's 32-channel and 64-channel rack-mount TAP monitoring systems are designed to meet the extreme network visibility requirements of ultra-large-scale, high-capacity networks. Utilizing a high-specification rack-mount chassis with a standard 19-inch 1U height (482 × 230 × 44 mm) and fully loaded with high-density MTP®/MPO interfaces, the system can perform real-time, lossless signal sampling of dozens of core channels without any interruption to backbone real-time services. Fully compatible with single-mode (1260–1650 nm) and multi-mode (850 ± 50 nm, OM3/OM4/OM5) platforms, with its ultra-low main link loss and extremely stable splitting ratio, it is the ultimate optical monitoring cornerstone supporting the smooth evolution of hyperscale cloud computing data centers, AI/HPC computing clusters, and 400G/800G/1.6T telecom backbone networks.
| Parameter | Unit | Value | |||||
| Fiber Type | nm | Single-mode | Multi-mode | ||||
| Wavelength | nm | 1260~1650 | 850±50 | ||||
| Port Configuration | - | 32CH | 64CH | 32CH | 64CH | ||
| Insertion Loss | Tap Ratio | 5% | dB | 14.8 | 15.1 | 15.3 | 15.7 |
| 95% | dB | 1.3 | 1.4 | 1.5 | 1.7 | ||
| Tap Ratio | 20% | dB | 8.70 | 8.85 | 8.80 | 8.95 | |
| 80% | dB | 2.45 | 2.55 | 2.50 | 2.60 | ||
| Tap Ratio | 30% | dB | 6.9 | 7.2 | 6.8 | 7.1 | |
| 70% | dB | 2.8 | 3.1 | 2.9 | 3.2 | ||
| Tap Ratio | 40% | dB | 5.6 | 5.8 | 5.5 | 5.8 | |
| 60% | dB | 3.6 | 3.8 | 3.5 | 3.8 | ||
| Tap Ratio | 50% | dB | 4.7 | 4.8 | 4.6 | 4.8 | |
| 50% | dB | 4.7 | 4.8 | 4.6 | 4.8 | ||
| Return Loss | dB | ≥50 | ≥25 | ||||
| Directivity | dB | ≥50 | ≥25 | ||||
| Power Handing | mW | 300 | 500 | ||||
| Fiber Type | - | G67A1/ A2/ B3 or SMF-28 | OM3/OM4/OM5 | ||||
| Fiber Coating | um | 250 µm / 900 µm loose tube | |||||
| Conector | - | MPO/MTP® | |||||
| Package Size | mm | 482*230*44 | |||||
| Operation Temperature | °C | -5~65 | |||||
| Storage Temperature | °C | -40~85 | |||||
(Designed to overcome the space anxiety and massive parallel monitoring pain points of hyperscale data centers)
Feature: Ultra-high density 32CH/64CH 1U rack architecture
Pain points solved/value: Achieves integration of up to 64 independent optical taps (TAPs) within a standard 19-inch 1U rack space (482 × 230 × 44 mm). This not only helps hyperscale data centers save extremely expensive U-space but also enables centralized and modular management of all network monitoring nodes, significantly reducing operational complexity.
Feature: Extremely rich fixed splitting ratios (5/95% to 50/50%) and ultra-low insertion loss
Pain points solved/value: With an ultra-low splitting ratio of 5/95%, the insertion loss of the single-mode 95% main link is as low as an astonishing 1.3 dB, and the multi-mode main link is as low as 1.5 dB. This allows network architects to seamlessly integrate with network packet brokers while reserving ample optical power for primary service links, completely eliminating concerns about link attenuation caused by monitoring.
Features: Native MTP®/MPO interface and full fiber readiness (SM & OM5 support)
Pain points addressed/value: Perfectly adapts to parallel optical transmission networks based on SR8, DR4, and DR8. Supports G67A1/A2/B3, SMF-28, and the latest generation OM5 multimode fiber, enabling plug-and-play compatibility with mainstream 400G/800G optical modules, completely eliminating redundant patch cord conversions.
Features: High isolation, high return loss (RL ≥ 50 dB) non-invasive design
Solved Pain Points/Value: The single-mode system provides up to ≥ 50 dB of return loss and directivity, completely blocking back reflections from damaging the highly sensitive coherent transceivers. The purely passive operating mechanism ensures zero single point of failure; even during a power outage in the data center, the main data flow remains uninterrupted.
Features: Superior optical power handling capabilities and industrial-grade wide-temperature operation
Solved Pain Points/Value: Easily handles high input optical power surges of 300 mW for single-mode and 500 mW for multimode, maintaining absolute stability of optical performance in complex data center hot aisle environments ranging from -5°C to 65°C.
