| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |

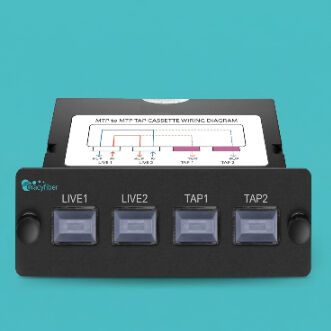

High-Density LGX TAP Monitoring Patch Panels (4CH / 8CH LGX TAP Modules)
GRACYFIBER's 4-channel and 8-channel high-density LGX TAP modules provide intelligent, non-intrusive optical signal access solutions for your high-speed network environments. Featuring a compact rack-compatible design (109 × 118 × 35 mm) and original equipment manufacturer (OEM) MTP®/MPO interfaces, these modules enable multi-channel concurrent signal monitoring without impacting real-time backbone services. This series fully supports single-mode (1260–1650 nm) and multimode (850 ± 50 nm) fiber platforms, offering extremely precise splitting ratios, ultra-low main link loss, and highly consistent optical performance, making it ideal for achieving scalable network visibility in modern 100G/400G/800G data centers, 5G infrastructure, and high-speed enterprise backbones.
| Parameter | Unit | Value | |||||
| Fiber Type | nm | Single-mode | Multi-mode | ||||
| Wavelength | nm | 1260~1650 | 850±50 | ||||
| Port Configuration | - | 4CH | 8CH | 4CH | 8CH | ||
| Insertion Loss | Tap Ratio | 5% | dB | 14.8 | 15.1 | 15.3 | 15.7 |
| 95% | dB | 1.3 | 1.4 | 1.5 | 1.7 | ||
| Tap Ratio | 20% | dB | 8.70 | 8.85 | 8.80 | 8.95 | |
| 80% | dB | 2.45 | 2.55 | 2.50 | 2.60 | ||
| Tap Ratio | 30% | dB | 6.9 | 7.2 | 6.8 | 7.1 | |
| 70% | dB | 2.8 | 3.1 | 2.9 | 3.2 | ||
| Tap Ratio | 40% | dB | 5.6 | 5.8 | 5.5 | 5.8 | |
| 60% | dB | 3.6 | 3.8 | 3.5 | 3.8 | ||
| Tap Ratio | 50% | dB | 4.7 | 4.8 | 4.6 | 4.8 | |
| 50% | dB | 4.7 | 4.8 | 4.6 | 4.8 | ||
| Return Loss | dB | ≥50 | ≥25 | ||||
| Directivity | dB | ≥50 | ≥25 | ||||
| Power Handing | mW | 300 | 500 | ||||
| Fiber Type | - | G67A1/ A2/ B3 or SMF-28 | OM3/OM4/OM5 | ||||
| Fiber Coating | um | 250 µm / 900 µm loose tube | |||||
| Conector | - | MPO/MTP® | |||||
| Package Size | mm | 109*118*35 | |||||
| Operation Temperature | °C | -5~65 | |||||
| Storage Temperature | °C | -40~85 | |||||
(Designed to solve your rack space constraints and high-density optical network monitoring pain points)
Pain Points Solved/Value Boost: Designed for standard 1U/4U high-density patch panels (ODFs). By highly integrating 4 or 8 independent TAP channels into a single compact enclosure, it allows network engineers to deploy massive numbers of monitoring nodes with extremely high space utilization, completely eliminating the cable clutter problems caused by traditional single-channel TAPs.
Pain Points Solved/Value Boost: Offers a full range of split ratio options from 5/95%, 20/80%, 30/70%, 40/60% up to 50/50%. For example, at a 5/95% ratio, the insertion loss of the main service link can be as low as 1.3 dB (single-mode 95% end). This allows you to extract high-quality sampled signals for analysis while ensuring absolute security of the main network's optical power budget.
Pain points addressed/value: Perfectly matches next-generation network architectures based on parallel optics (such as SR4, SR8). Fully compatible with OM3/OM4/OM5 multimode fiber and G67 series single-mode fiber, allowing seamless, plug-and-play access to today's most advanced AI clusters or core switch architectures from a single patch panel.
Pain points addressed/value: Single-mode platforms offer ≥50 dB of high directivity and return loss, while multimode platforms offer ≥25 dB of superior performance. The pure physical layer beam splitting design completely blocks back reflection interference to active optical modules and requires no external power supply, achieving true "zero downtime risk" monitoring of the network.
Pain points addressed/value: It possesses optical power handling capabilities of up to 300 mW (single-mode) and 500 mW (multi-mode), and maintains stable operation in environments ranging from -5°C to 65°C. This ensures that the device maintains an ultra-long lifespan and excellent reliability even when facing high-power coherent signals or high-heat, high-density cabinets.
