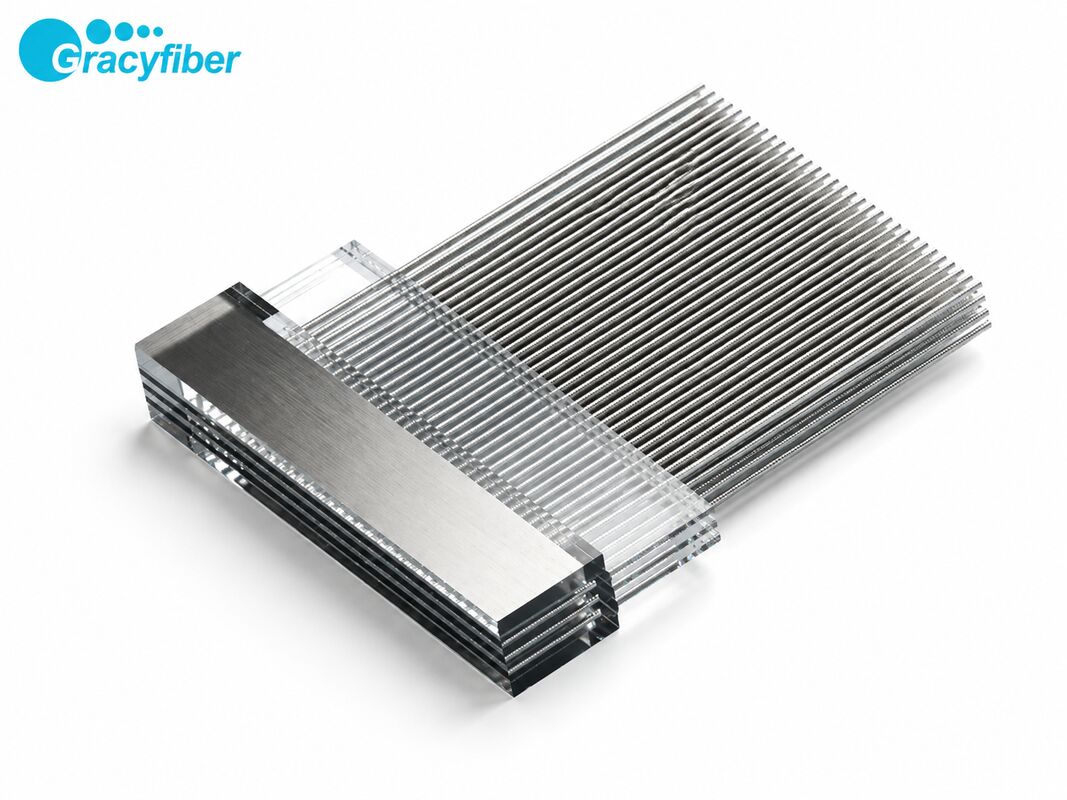

Ultra-High Density 2D Fiber Array Unit 16 Channels to 1024 Channels

Ultra-High Density 2D Fiber Array Unit 16 Channels to 1024 Channels

Detail Information
Product Description
Detail Information
Channel Count:
16CH To 1024CH
Core Pitch:
127µm ±1µm
Insertion Loss:
0.5dB
Return Loss:
UPC ≥40dB, APC ≥50dB
Substrate Material:
Glass Or Ceramic
Fiber Options:
Customized
Product Description

Ultra-High Density 2D Fiber Array Unit 16 Channels to 1024 Channels

1. Product Introduction


The Ultra-High Density 2D Fiber Array Unit is a high-precision optical fiber interface solution designed for next-generation AI computing, high-performance computing, silicon photonics, and co-packaged optics applications.

2. Features

  • Ultra-high-density 2D matrix fiber array design
  • Scalable channel count from 16CH to 1024CH
  • 127µm core pitch with ±1µm pitch tolerance
  • Low insertion loss, typical 0.5dB
  • High return loss: UPC ≥40dB, APC ≥50dB
  • Glass or ceramic substrate with customized fiber options

3. Applications

  • AI/GPU optical interconnects
  • Co-packaged optics, CPO, and NPO systems
  • 800G / 1.6T and higher-speed optical modules
  • Silicon photonics packaging
  • High-performance computing optical networks
  • Compact multi-channel optical engines

Ultra-High Density 2D Fiber Array Unit 16 Channels to 1024 Channels 0

Tags:

Fiber Optic Array

Optical Fiber Array

V Groove Fiber Array
