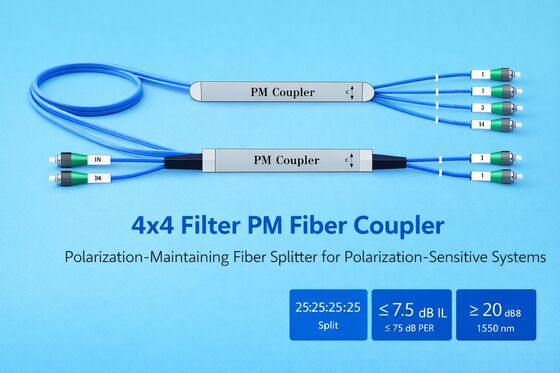

4x4 Filter PM Fiber Coupler 1550nm Polarization Maintaining Fiber Splitter 25:25:25:25

4x4 Filter PM Fiber Coupler 1550nm Polarization Maintaining Fiber Splitter 25 25 25 25 For EDFA Coherent Communication Power Monitoring And Fiber Sensing

Product Overview

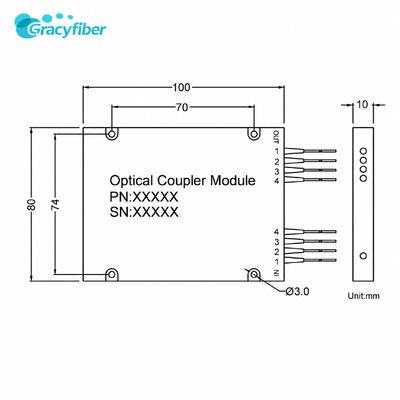

The 4*4 Filter PM Fiber Coupler is a multi-port power distribution device specifically designed for polarization-sensitive systems. It employs a 4-input/4-output symmetrical structure with a standard splitting ratio of 25:25:25:25, enabling uniform coupling and stable transmission of four signals in the 1550 nm band. The device operates at a center wavelength of 1550 nm and has a bandwidth of ±15 nm, offering good compatibility in typical C-band applications. The insertion loss per port is no higher than 7.5 dB, and the additional loss is no higher than 1.2 dB. Combined with Corning Panda polarization-maintaining fiber and high-reliability packaging technology, the product features low loss, high stability, and polarization maintenance. The standard fiber length is 1.0±0.1 m, and the module dimensions are 100*80*10 mm ABS box package. Multiple connector types are available, including FC/UPC and FC/APC, making it suitable for integration into various chassis, modules, and experimental platforms.

In terms of application scenarios, the 4*4 polarization-maintaining coupler is suitable for deployment in various multi-port optical power distribution and combining systems. For EDFA fiber optic amplifiers, they can equalize and distribute multiple input signals before amplification, or distribute amplified signals to multiple output ports for multi-node downlink or multi-port testing. In fiber optic instruments, they can serve as an "optical power distribution hub" for internal optical paths, distributing the same light source or signal proportionally to multiple measurement channels. In coherent communication and multi-channel experimental systems, the 4*4 structure is ideal for building multi-arm interferometry, coherent detection matrices, or multi-channel local oscillator configurations. In power monitoring and fiber optic sensing platforms, they can distribute the main link signal to multiple monitoring or sensing channels, enabling multi-point synchronous detection and status monitoring.

From a parameter perspective, this 4*4 Filter PM Coupler possesses comprehensive characteristics such as low loss, high extinction ratio, high return loss, and high reliability. At a standard 25:25:25:25 splitting ratio, insertion loss (including losses from coupling and splitting) is no higher than 7.5 dB, and maximum additional loss is no higher than 1.2 dB; extinction ratio ≥20 dB, ensuring good selectivity for polarization state in polarization-maintaining systems; return loss ≥50 dB and directivity ≥50 dB, effectively suppressing interference from reflected light and crosstalk signals to front-end devices. The device's maximum optical power handling capacity ≤300 mW, meeting the needs of most medium-power amplification and sensing applications; operating temperature range -5～+75 ℃, storage temperature -40～+85 ℃, suitable for long-term stable operation in computer rooms, laboratories, and some industrial environments. All ports use Corning Panda polarization-maintaining fiber, with connector keys aligned with the slow axis to ensure consistency and controllability of polarization direction.

From a system integration and optical path design perspective, the 4*4 PM coupler is ideally suited for use as a multi-port optical path matrix or power distribution node. In a complete system or submodule, it can be installed after a common light source to distribute a single laser or signal optical path to four functionally different sub-channels, such as four sets of test circuits, four sensor probes, or four different amplification stages. In multi-node systems, signals from different directions or nodes can be converged to the coupler and then distributed proportionally to multiple detection or monitoring ports, serving as an "optical convergence + distribution" hub. In a laboratory environment, it can be used to build four-arm interferometer structures, multi-path phase comparison systems, four-channel power balancing platforms, etc., facilitating the study of complex optical path topologies and polarization-dependent effects. Engineers can also select 250 μm bare fiber, 0.9 mm tubing, or 2.0/3.0 mm sheaths, as well as different connector types, to better adapt to chassis space and field installation conditions, depending on actual wiring requirements.

Compared to traditional 1*N single-mode couplers or non-polarization-maintaining 4*4 couplers, this 4*4 Filter PM Coupler offers several advantages. First, it utilizes panda-type polarization-maintaining fiber, and the connector key alignment with the slow axis ensures greater consistency and predictability of polarization state transmission across multiple ports, making it ideal for polarization-sensitive coherent, sensing, and interferometric systems. Second, the 4*4 symmetrical structure and 25:25:25:25 splitting ratio make it more direct for building multi-port power equalization networks, eliminating the need for multiple 1*2 or 1*4 cascades, thus reducing splice points and cumulative insertion loss. Third, the specifications clearly state a power limit of 50 mW with connectors, an increase in insertion loss of 0.3 dB, a reduction in return loss of 5 dB, and a reduction in extinction ratio of 2 dB, allowing engineers to accurately consider these factors during link budgeting and simulation modeling, reducing design uncertainty. With clear order codes (selectable wavelength, structure, sheath size, fiber length, and connector types at both ends), users can quickly complete project selection and batch configuration, achieving an optimal balance between performance, cost, and ease of use.

In summary, the 4*4 Filter PM Fiber Coupler is a high-performance multi-port polarization-maintaining coupler designed for polarization-sensitive applications such as EDFA amplification systems, fiber optic instruments, multi-channel coherent communication, power monitoring, and fiber optic sensing. It provides a reliable foundation for power distribution and polarization management in complex optical paths through its 1550 nm operating wavelength, 25:25:25:25 symmetrical beam splitting, low insertion loss, high extinction ratio, high return loss, and stable polarization-maintaining characteristics. Whether used as a fixed power distribution unit in mass-production equipment or as a flexible optical path "distribution hub" on experimental platforms, this product effectively improves system polarization stability, test repeatability, and overall optical performance. For equipment manufacturers and system integrators seeking solutions with high consistency, high reliability, and easy integration, this 4*4 PM coupler is one of the key components for building high-quality polarization-maintaining fiber solutions.
