Optical Instrument In Line Fiber Polarizer 1310nm 1550nm 1064nm 980nm 850nm High Extinction Ratio

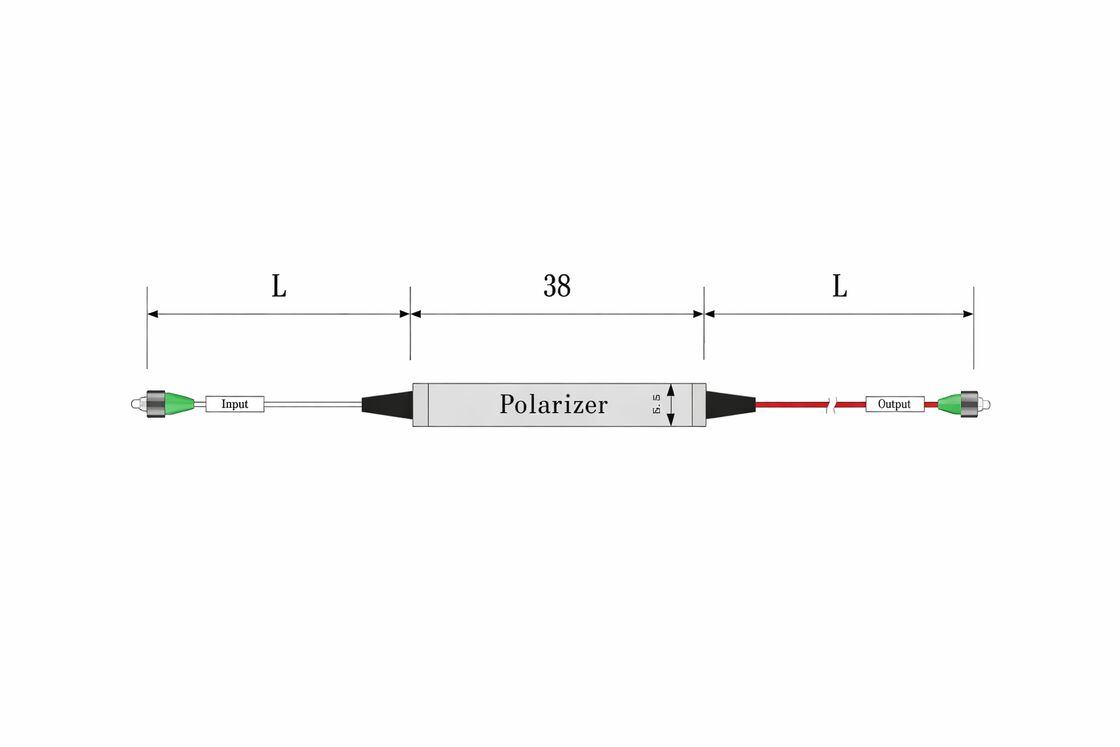

The In-Line Polarizer is a high-performance passive device that achieves polarization state filtering and control via direct fiber optic connection. It is used to select specific polarization directions and suppress unwanted polarization components in fiber optic links, thereby obtaining a high extinction ratio and stable polarization output. This product offers multiple operating wavelength series, including 1310nm, 1550nm, 1064nm, 980nm, and 850nm, with different bandwidth configurations for different bands, adapting to various application requirements in both communication and laser bands. The device uses panda-type polarization-maintaining fiber or single-mode fiber as input and output pigtails. The standard steel tube package size is approximately Φ5.5*L35mm, with a pigtail length of approximately 1.0m. It can be used with FC/APC connectors for easy integration into modules, chassis, or experimental platforms.

Functionally, the In-Line Polarizer is mainly used in various fiber optic systems that are highly sensitive to polarization states, serving as a crucial fundamental device for achieving polarization control and improving measurement resolution. In optical testing instruments, it can serve as a polarization selection element for establishing polarization-related test links, such as interferometers, polarization analyzers, and coherent detection systems. In fiber optic sensing systems, by confining the probe light to a specific polarization state, it can reduce measurement errors introduced by polarization fluctuations and improve the detection sensitivity and repeatability of parameters such as stress, temperature, and refractive index. In laser systems and fiber amplifiers, the online polarizer can work with polarization-maintaining fibers to achieve single-polarization output or a stable polarization direction, providing reliable polarization conditions for subsequent nonlinear effect control, phase control, and polarization-sensitive devices.

In terms of device performance, this online polarization maintainer is characterized by "low insertion loss, high extinction ratio, high isolation, and high reliability." Typical insertion loss at different operating wavelengths can be controlled to less than 1 dB, and the maximum insertion loss at 23°C is also limited to a strict range, which helps to reduce the impact on the overall link power budget. Typical extinction ratios reach approximately 30 dB in the 1310/1550 nm band, with a minimum extinction ratio still not lower than approximately 28 dB. Extinction performance above 25 dB is maintained in the 980/850 nm band, significantly suppressing undesirable polarization components. The device has a return loss greater than 50 dB and a maximum optical power handling capacity of approximately 300 mW, meeting the needs of most medium-power applications. The operating temperature range is approximately -5 to +70°C, and the storage temperature is approximately -40 to +80°C. Combined with Telcordia specifications and RoHS compliant design, it demonstrates stable and reliable performance in long-term operation and environmental adaptability.

From a system integration perspective, the In-Line Polarizer can be used as a standalone device directly connected in series in fiber optic links, or as an embedded functional unit in OEM modules. For OEMs, it can be installed in key locations such as fiber optic sensor interrogators, spectrometers, polarization correlation measurement units, and coherent receiver front-ends to unify system polarization references. In research laboratories, it is often used to build polarization interference experiments, quantum optics experiments, or multi-level polarization cascade structures. By combining with polarization-maintaining couplers, polarization-maintaining circulators, and other devices, it enables more complex polarization control and path design. For portable devices requiring polarization filtering within limited space, such as handheld sensors or field test instruments, the small tubular package and customizable pigtail/connector forms of the in-line polarizer facilitate compact integration.

Compared to traditional bulk polarizers or polarization maintenance methods that rely solely on the polarization-maintaining fiber itself, the In-Line Polarizer offers significant advantages. First, it achieves polarization filtering with an all-fiber structure, eliminating the need for frequent coupling between the fiber and free space, reducing insertion loss, alignment errors, and the impact of environmental vibrations, making the system more compact and stable. Second, the device itself provides clear extinction ratio and return loss specifications, and indicates predictable performance changes by specifying "connector version IL slightly increases, RL slightly decreases, ER slightly decreases," facilitating link budgeting and simulation design for engineers. Third, the ordering information provides clear coding for operating wavelength, package size, input and output fiber types, pigtail length, sheath type, and connector type, allowing for easy selection and customization for different projects. For users who want to control system complexity and cost while ensuring polarization stability, this in-line polarization maintainer is a solution that achieves a good balance between performance, size, and maintainability.

Overall, the In-Line Polarizer is a key polarization management device for fiber optic instruments, fiber optic sensing, laser, and high-precision measurement systems, featuring low insertion loss, high extinction ratio, high return loss, and excellent environmental adaptability. By strategically deploying this device within the link, users can effectively purify the polarization state, suppress polarization noise, and improve the system's signal-to-noise ratio, repeatability, and long-term stability. Whether for system integration of new products or performance optimization of existing platforms, online polarization maintainers offer greater freedom and safety margins for overall optical design, making them an indispensable component in building high-quality polarization-maintaining fiber solutions.
