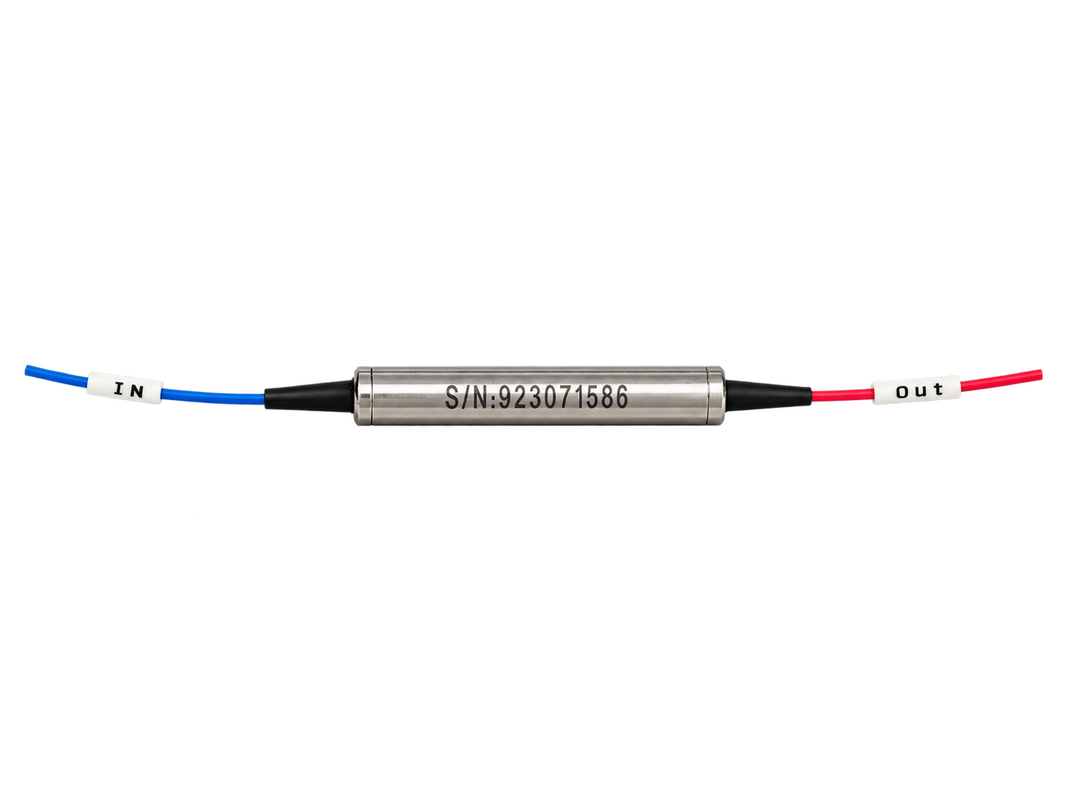

PM Fiber Polarizer – 780 to 1950 nm In-Line Polarization Maintaining Polarizer
GracyFiber PM Fiber Polarizer is a 1×1 in-line polarization device designed to provide controlled linear polarization across wavelength options from 780 nm to 1950 nm. The product combines low insertion loss with high polarization extinction, with the supplied product information specifying insertion loss as low as 0.3 dB and extinction ratio up to 30 dB.
The supplied product document specifically identifies high extinction ratio, low insertion loss, environmental stability, broad wavelength coverage, and multiple packaging formats.
These applications are directly listed in the supplied PM Fiber Polarizer documentation.
A PM Fiber Polarizer is an in-line fiber-optic component used to produce or maintain a defined linear polarization state in a polarization-sensitive optical system.
The GracyFiber product is a 1×1 device covering wavelength options from 780 nm to 1950 nm.
The supplied specification includes nominal wavelength options of:
The corresponding operating bandwidth depends on the selected wavelength.
The product description states an extinction ratio of up to 30 dB.
The detailed specification provides wavelength-dependent typical values ranging from 22 dB to 30 dB. One specification row is labeled inconsistently and should be confirmed before final website publication; see Information to Confirm below.
Insertion loss depends on operating wavelength. The supplied specification lists typical values from approximately 0.3 dB to 0.9 dB, with corresponding maximum limits from 0.5 dB to 1.1 dB for different wavelength groups.
The documentation includes:
The product overview also explicitly states that bare-fiber, loose-tube, and housed-module packaging is available.
| Parameter | Specification |
|---|---|
| Product Type | PM Fiber Polarizer |
| Port Configuration | 1×1 |
| Nominal Wavelengths | 780 / 850 / 980 / 1064 / 1310 / 1480 / 1550 / 1950 nm |
| Extinction Ratio | Up to 30 dB |
| Insertion Loss | As low as 0.3 dB |
| Return Loss | ≥50 dB |
| Power Handling Options | 0.3 / 1 / 3 / 5 W |
| Fiber Coating / Protection | 250 µm / 900 µm / 2.0 mm / 3.0 mm |
| Loose Tube Color | Red / Black |
| Fiber Length | 100 cm |
| Connector | FC/APC / FC/UPC / Customized |
| Operating Temperature | -5°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Nominal Wavelength | Operating Bandwidth | Typical IL | Maximum IL | Typical ER | ER Limit in Source* |
|---|---|---|---|---|---|
| 780 / 850 nm | ±30 nm | 0.6 dB | 1.0 dB | 28 dB | 25 dB |
| 980 / 1064 nm | ±30 nm | 0.4 dB | 0.6 dB | 30 dB | 28 dB |
| 1310 nm | ±50 nm | 0.3 dB | 0.5 dB | 30 dB | 28 dB |
| 1480 nm | ±30 nm | 0.3 dB | 0.5 dB | 30 dB | 28 dB |
| 1550 nm | ±50 nm | 0.3 dB | 0.5 dB | 30 dB | 28 dB |
| 1950 nm | ±30 nm | 0.9 dB | 1.1 dB | 22 dB | 20 dB |
*The source spreadsheet labels the second ER row “Max. Extinction Ratio,” although its numerical values are lower than the typical ER values. This terminology should be confirmed before publication.
| Wavelength Group | Input Fiber | Output Fiber |
|---|---|---|
| 780 / 850 nm | 780-HP / PM780-HP | PM780-HP |
| 980 / 1064 nm | HI1060 / PM980 | PM980 |
| 1310 nm | SMF-28e / PM1300 / PM1550 | PM1300 |
| 1480 nm | SMF-28e / PM1300 / PM1550 | PM1550 |
| 1550 nm | SMF-28e / PM1300 / PM1550 | PM1550 |
| 1950 nm | SM1950 | PM1950 |
| Fiber / Protection Type | Package Dimensions |
|---|---|
| 250 µm Bare Fiber | Ø5.5 × 35 mm |
| 900 µm Loose Tube | Ø5.5 × 38 mm |
| 2 mm / 3 mm Tube | 90 × 20 × 10 mm / 100 × 80 × 10 mm |
The dimensional drawing on page 3 also shows a cylindrical package with a body diameter of approximately Ø5.5 mm, body length of approximately 35 mm, and a reference overall length of 55 mm for the illustrated configuration.
The supplied spreadsheet states that the listed optical specifications apply to devices without connectors.
For devices fitted with connectors:
The specification also states that the PM fiber and connector key are aligned to the slow axis, while the fast axis is blocked.
Available nominal wavelength options:
Wavelength-dependent options include:
Documented options:
Available:
Available:
Available formats include:
The product documentation explicitly identifies bare fiber, loose tube, and housed-module packaging.
The GracyFiber PM Fiber Polarizer is an in-line polarization component intended for optical systems in which a controlled linear polarization state is required. Its 1×1 configuration provides a direct fiber input-to-output optical path while suppressing the unwanted polarization component and transmitting the desired polarization state.
The product family covers a broad range of photonics wavelengths, from 780 nm through 1950 nm. Different optical and fiber configurations are therefore used according to wavelength. For example, the supplied specification identifies PM780-HP output fiber for the 780/850 nm group, PM980 for 980/1064 nm, PM1300 for 1310 nm, PM1550 for 1480/1550 nm, and PM1950 for the 1950 nm version.
Optical performance also varies by wavelength. The lowest documented typical insertion loss is 0.3 dB for the 1310–1550 nm configurations, while the typical extinction ratio reaches 30 dB for the 980/1064 nm and 1310–1550 nm wavelength groups. These values align with the product description's emphasis on low loss and high polarization purity.
The component can be supplied in different mechanical formats depending on integration requirements. Bare-fiber and 900 µm versions use compact cylindrical packages, while 2 mm and 3 mm tube configurations use larger protective housings.
Connectorized configurations are also supported. Because connectors affect insertion loss, return loss, and extinction ratio, the supplied specification provides separate adjustment values for connectorized versions.
These characteristics make the PM Fiber Polarizer applicable to laser systems, coherent communication, quantum optics, sensing, interferometry, and laboratory optical platforms where polarization purity is an important system parameter.
Fiber laser systems may require a defined linear polarization state within the optical path.
The PM Fiber Polarizer can be inserted into the fiber system to suppress the unwanted polarization component and provide a polarization-controlled output. Multiple wavelength options, including 980 nm, 1064 nm, 1550 nm, and 1950 nm, allow the configuration to be selected according to the laser system.
Fiber laser systems are specifically listed as a target application.
Quantum optical platforms can depend on stable and controlled polarization states for optical experiments and signal processing.
The PM Fiber Polarizer provides an in-line method of obtaining defined linear polarization while supporting wavelengths down to 780 nm in the supplied product family.
Coherent optical and interferometric systems may be sensitive to changes in polarization state.
The PM Fiber Polarizer can provide polarization cleanup within the optical path, with documented low insertion loss and high extinction characteristics for relevant wavelength configurations.
Coherent communication, interferometry, and precision measurement are explicitly listed in the product documentation.
GracyFiber provides passive optical components for polarization-sensitive, wavelength-management, optical communication, and photonics applications.
Relevant product capabilities include:
For this PM Fiber Polarizer family, the supplied specification provides multiple wavelength configurations, wavelength-matched PM fibers, power-handling options, fiber-protection formats, package types, and connector configurations.
| Related Product | Why It Is Related |
|---|---|
| PM Isolator | Used in polarization-maintaining optical systems where suppression of backward optical propagation is required. |
| PM Circulator | Provides directional optical routing while maintaining polarization. |
| PM Fiber Coupler | Provides optical power splitting or combining in PM fiber systems. |
| PM Fiber Collimator | Provides a polarization-maintaining fiber-to-free-space optical interface. |
| PM WDM | Combines or separates wavelength channels while maintaining polarization characteristics. |
| PM Fiber Array | Provides multi-channel polarization-maintaining fiber interfaces for photonic devices. |
Need a PM Fiber Polarizer for a laser, quantum, coherent, sensing, or measurement system?
Send GracyFiber your required:
GracyFiber can review the required PM Fiber Polarizer configuration before quotation.
