| Brand Name: | Gracyfiber |
| Model Number: | PMOS-16435PM0910-22(S5) |
| MOQ: | 1pieces |
| Price: | 10~1000usd/pcs |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

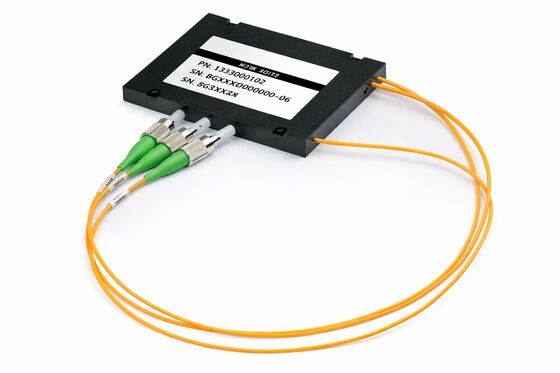

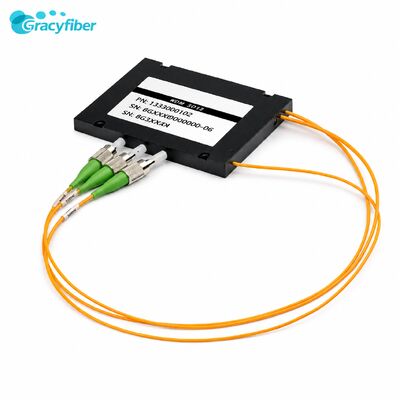

This 1*16 Fiber Coupler is a high-performance passive optical splitting device capable of uniformly distributing a single input optical signal across 16 output ports.
| Parameters | Unit | PM 1x16 | |
|---|---|---|---|
| Operating Wavelength | nm | 420-456 | |
| Typical Excess Loss | nm | ≤19 | |
| Polarization Extinction Ratio | dB | ≥12 | |
| Loss Uniformity | dB | ≤1.6 | |
| Return Loss | dB | ≥55 | |
| Power Handling | W | ≤0.3 | |
| Directivity | dB | ≥50 | |
| Operating Temperature | ℃ | -5~+65 | |
| Storage Temperature | ℃ | -40～+80 | |
| Port Type | / | 1x18 | |
| Fiber Type | / | Panda fiber | |
| Fiber Length | m | 1.0±0.1m,others on request | |
| Connector | / | FC/APC,others on request | |
| Package Dimension | 2mm/3mm Loose Tube |
mm | 120*80*18 |

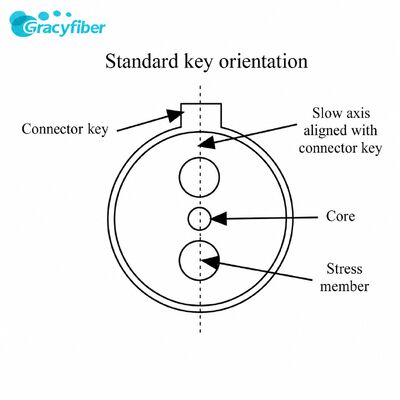

The default connector key is aligned to slow axis.
FAQ
Q1: What is the operating wavelength range of this product?
A: According to the specifications, the operating wavelength range of this 1×16 PM Fiber Coupler is 420–456nm, suitable for short-wavelength polarization-maintaining optical systems, optical test platforms, sensing systems, and special light source applications.
Q2: Does this product support customization?
A: Yes, it supports customization. Customers can customize the fiber length, connector type, packaging, and pigtail structure according to their actual system requirements.
