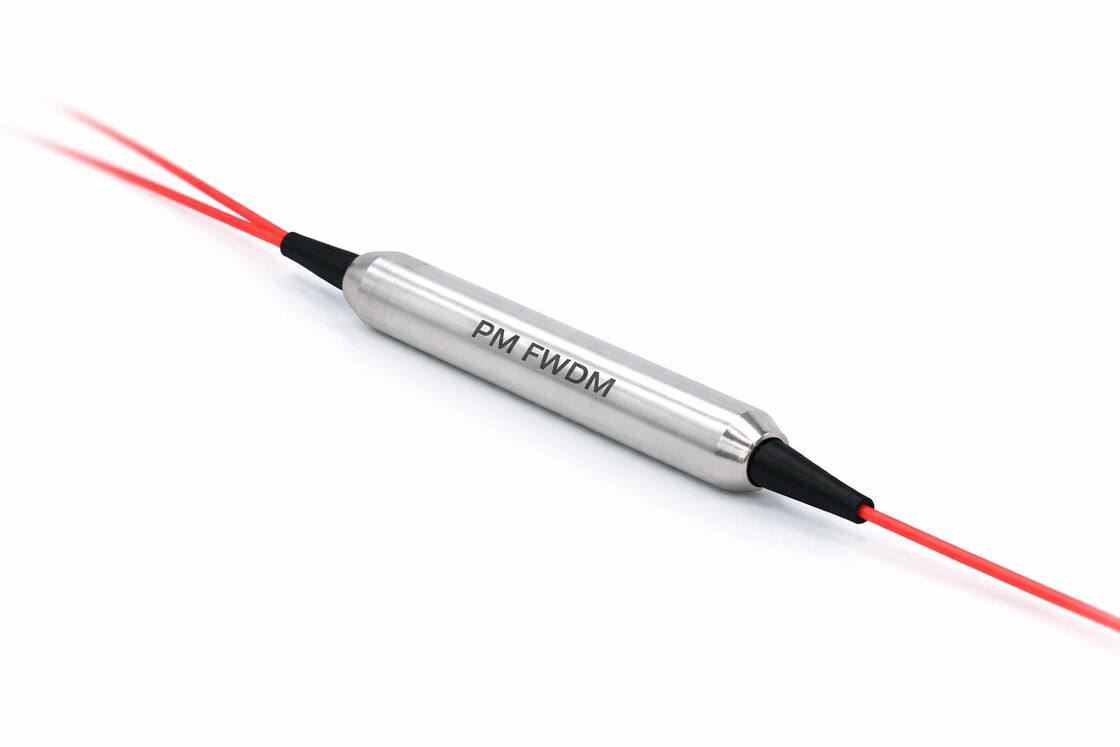

PM FWDM Device Polarization Maintaining FWDM Filter 1260nm 1620nm Low Insertion Loss High Isolation

PM FWDM (Polarization-Preserving Filter Wavelength Division Multiplexing) equipment is an important optical component used in fiber optic communication, widely applied for the separation and combining of multi-wavelength signals. Through efficient optical wavelength division multiplexing technology, this equipment provides low loss, high isolation, and high stability in the transmission of optical signals at different wavelengths, ensuring signal quality and transmission efficiency. PM FWDM equipment typically operates in the wavelength range of 1260nm to 1620nm, supporting precise management of multiple wavelength signals. It is an indispensable part of modern optical communication systems, especially widely used in ROADM (Reconfigurable Optical Add-Multiplexing Networks), CATV systems, CWDM systems, and PON networks.

PM FWDM equipment has a wide range of applications, mainly including the following areas:

• ROADM Systems: In Reconfigurable Optical Add-Multiplexing Networks (ROADM), PM FWDM equipment is used for the separation and combining of multi-wavelength signals, achieving efficient signal transmission and scheduling.
• CATV Systems: In cable television (CATV) systems, PM FWDM equipment helps optimize frequency allocation, ensuring high-quality television signal transmission and supporting parallel transmission of multiple channels.
• CWDM Systems: In coarse wavelength division multiplexing (CWDM) systems, PM FWDM equipment significantly increases network bandwidth, reduces the number of devices, and lowers costs through wavelength division multiplexing and wavelength combination (WDM) functions.
• PON Networks: In passive optical networks (PON), PM FWDM equipment efficiently allocates and manages wavelengths, ensuring efficient network operation and scalability.

Furthermore, PM FWDM equipment can be applied to other optical communication systems and experimental environments to meet the needs of multi-wavelength signal separation, combining, and modulation.

PM FWDM equipment has the following significant features:

• Low Insertion Loss: Insertion loss is less than 1.0 dB, ensuring that unnecessary losses are reduced during optical signal transmission and improving overall system efficiency.
• High Isolation: Offers greater than 30dB of isolation, preventing crosstalk between different wavelengths and improving signal clarity and stability.
• Compact Design: The device is small in size, easily integrated into various fiber optic communication systems, and does not occupy excessive space.
• Wide Operating Wavelength Range: Supports a wavelength range from 1260nm to 1620nm, meeting diverse communication needs.
• High Reliability and Stability: Possesses excellent temperature adaptability, operating within a temperature range of 0~70℃, ensuring stable operation in various environments.
• Low Ripple: Ripple value ≤0.4dB, ensuring stable signal quality without frequent fluctuations.

PM FWDM equipment performs exceptionally well in practical applications:

• Application in ROADM Systems: In ROADM systems, PM FWDM equipment optimizes signal transmission paths through precise wavelength allocation and merging, supporting flexible bandwidth scheduling and expansion.
• Application in CATV Systems: In CATV systems, PM FWDM equipment effectively reduces signal loss during transmission, ensuring high-quality signal transmission between channels.
• Application in CWDM Systems: In CWDM systems, PM FWDM equipment improves fiber bandwidth utilization through effective wavelength multiplexing, significantly reducing network construction and operation costs.
• Application in PON Networks: In PON networks, PM FWDM equipment ensures wavelength isolation between different users, providing efficient network bandwidth management.

Compared to traditional fiber wavelength division multiplexing equipment, PM FWDM equipment has the following advantages:

• High-Performance Wavelength Separation Capability: High isolation and low insertion loss enable PM FWDM equipment to perform excellently in signal processing, ensuring minimal interference between different wavelength signals.
• Wide Application Compatibility: Supports a wide wavelength range from 1260nm to 1620nm, compatible with multiple optical communication standards, and highly adaptable.
• Compact Design and High Integration: The compact form factor makes the device easier to integrate into existing fiber optic network systems, saving space and reducing installation costs.
• High Stability and Durability: It possesses strong resistance to environmental interference, adapting to different operating temperatures and environmental conditions, ensuring long-term stable operation.
• Reliable Cost-Effectiveness: While providing high performance, PM FWDM equipment offers high cost-effectiveness, providing an economical and effective solution for fiber optic network construction.

As an important optical device, PM FWDM equipment, with its low insertion loss, high isolation, and wide wavelength range, has become a key component of modern fiber optic communication systems. Whether in ROADM, CATV, CWDM, or PON networks, PM FWDM equipment can provide efficient wavelength separation and combining functions, ensuring high-quality signal transmission. With its high reliability, stability, and excellent performance, PM FWDM equipment not only meets current network needs but also provides sustainable support for future optical communication systems.
