Optical Fiber Array
>
90° Optical Path Turning Fiber Array (FA) for High-Density Optical Integration

90° Optical Path Turning Fiber Array (FA) for High-Density Optical Integration

Detail Information
Channel Count:
1-24CH
Operating Wavelength:
1310 Nm / 1550 Nm
Fiber Core Pitch:
250 µm / 300 µm / 500 µm
MT Polish Angle:
0° / 8°
Highlight:

90° optical path turning fiber array

,

high-density optical integration fiber array

,

custom fiber array with warranty

Product Description

1. Product Title

90° Optical Path Turning Fiber Array (FA) for High-Density Optical Integration


2. Product Overview

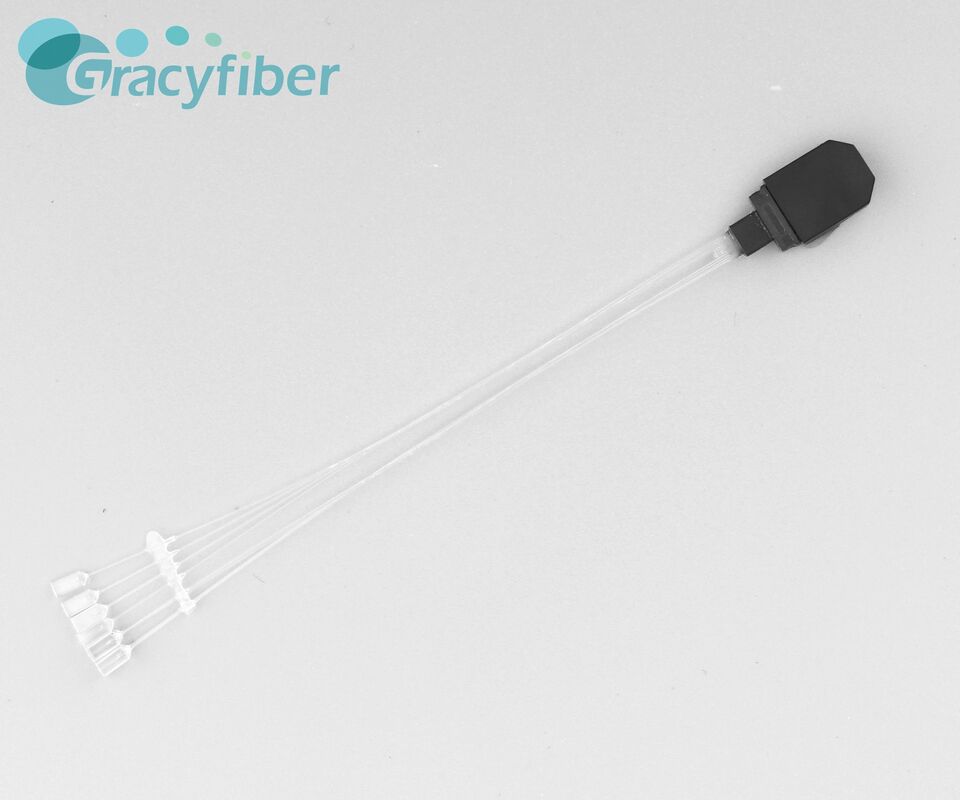

GracyFiber 90° Optical Path Turning Fiber Array is a specialized fiber array component designed for optical coupling and signal routing in space-constrained optical systems. By using a controlled fiber bending process, the product enables stable 90° optical path turning within a compact structure while reducing additional optical loss caused by fiber bending.



3. Key Features

  • 90° optical path turning design for compact optical integration
  • Supports 1–24CH channel configurations
  • Selectable fiber core pitch:
    • 250 µm
    • 300 µm
    • 500 µm
  • Supports 1310 nm / 1550 nm operating wavelengths
  • Compatible with compact optical coupling structures
  • Low MT insertion loss and high return loss
  • MT polishing angle options:
  • FA polishing angle options:
    • 12°
  • Stainless steel metal components for structural reliability
  • Integrated polishing process with controlled angle accuracy



4. Applications

  • High-density optical modules
  • Silicon photonics chip coupling
  • Optoelectronic integrated devices
  • Miniaturized optical communication modules
  • Multi-channel fiber array coupling
  • High-speed optical interconnects for data centers
  • Optical testing and packaging platforms
  • Space-constrained optical path connection systems



5. FAQ

What is a 90° Optical Path Turning Fiber Array?

A 90° Optical Path Turning Fiber Array is a fiber array component designed to change the optical routing direction by 90° within a compact package. It enables optical coupling and fiber routing where traditional straight fiber arrays may have space limitations.

What channel configurations are available?

The product supports 1–24CH channel customization according to the supplied product specifications.

Which wavelengths are supported?

The documented operating wavelengths are:

  • 1310 nm
  • 1550 nm


What fiber core pitch options are available?

The product supports selectable fiber core pitches:

  • 250 µm
  • 300 µm
  • 500 µm


Can the polishing angle be customized?

The supplied specifications list:

  • MT polishing angle: 0° / 8°
  • FA polishing angle: 4° / 6° / 8° / 12°

Other polishing configurations are [Need confirmation].


6. Technical Specifications

Parameter Specification
Product Type 90° Optical Path Turning Fiber Array
Optical Path Design 90° turning structure
Channel Count 1–24CH
Operating Wavelength 1310 nm / 1550 nm
Fiber Core Pitch 250 µm / 300 µm / 500 µm
MT Insertion Loss Low insertion loss [Specification value not provided]
Return Loss High return loss [Specification value not provided]
MT Polish Angle 0° / 8°
FA Polish Angle 4° / 6° / 8° / 12°
Metal Components Stainless steel
Fiber Array Structure Integrated polishing structure

The supplied document confirms the optical routing design, channel range, pitch options, wavelength range, polishing angles, and structural features. Specific numerical values for insertion loss, return loss, fiber type and temperature range are not provided.


7. Configuration & Customization Options

Available Options

Channel Configuration

  • 1CH
  • 2CH
  • 4CH
  • 8CH
  • 12CH
  • 16CH
  • 24CH

Fiber Core Pitch

Available options:

  • 250 µm
  • 300 µm
  • 500 µm

Operating Wavelength

Available:

  • 1310 nm
  • 1550 nm

MT Interface Polishing

Available:

FA Polishing

Available:

  • 12°

Structural Configuration

Available:

  • Stainless steel metal components
  • Integrated polishing structure



8. Detailed Product Description

The GracyFiber 90° Optical Path Turning Fiber Array is developed for optical systems where conventional straight fiber routing cannot meet packaging space requirements. By introducing a controlled fiber bending structure, the assembly allows the optical path to turn 90° while maintaining stable coupling performance.

In high-density optical modules and photonic integration systems, optical packaging space is becoming increasingly limited. Traditional fiber array structures may require additional routing space, creating challenges for compact system integration. The 90° optical path turning design addresses this challenge by redirecting the fiber path within a smaller mechanical footprint.

The product supports configurable channel counts from 1 to 24 channels, enabling adaptation to different optical interface requirements. Multiple core pitch options, including 250 µm, 300 µm, and 500 µm, allow designers to select the appropriate fiber arrangement according to the optical device structure.

For optical interface compatibility, the MT side supports 0° and 8° polishing angles, while the FA side supports 4°, 6°, 8°, and 12° polishing angles. These options provide flexibility when matching different optical coupling architectures.

The assembly uses stainless steel metal components and an integrated polishing process to improve structural reliability and control angular accuracy.

The 90° Optical Path Turning Fiber Array is suitable for compact optical modules, silicon photonics coupling systems, optoelectronic integrated devices, and high-speed optical interconnect applications where space-efficient fiber routing is required.


9. Application Scenario

Application 1 — High-Density Optical Modules

In high-density optical modules, internal optical routing space is limited and multiple fiber channels must be positioned within a compact package.

The 90° Optical Path Turning Fiber Array allows the fiber path direction to be changed within the module structure, helping reduce routing constraints while maintaining multi-channel optical coupling capability.


Application 2 — Silicon Photonics Chip Coupling

Silicon photonics packages require precise optical interfaces between fibers and photonic chips.

The 90° turning structure enables flexible fiber routing around the photonic package while supporting customized channel count, pitch and polishing-angle configurations.


Application 3 — Data Center Optical Interconnect

High-speed data center optical systems require compact and reliable optical packaging solutions.

The product provides a space-efficient fiber coupling approach for optical modules and interconnect assemblies where internal routing density is a key design consideration.


10. Why GracyFiber

GracyFiber provides passive optical components and precision fiber assembly solutions for optical communication and photonics applications.

Related capabilities include:

  • Fiber Array
  • FAU
  • Lensed Fiber Array
  • PM Fiber Array
  • MPO/MTP Connectivity
  • WDM / CWDM / DWDM Components
  • AAWG
  • PLC Splitter
  • FBT Coupler
  • Polarization Maintaining Components

For the 90° Optical Path Turning Fiber Array, GracyFiber provides configurable channel counts, pitch options, polishing configurations and compact optical routing structures based on the supplied product specifications.


11. Related Products

Related Product Relationship
Fiber Array (FA) The 90° Optical Path Turning FA is a specialized fiber array design optimized for optical path routing.
High-Density FAU Related for compact fiber coupling and photonic packaging applications.
Lensed Fiber Array Suitable for PIC edge coupling where beam shaping and mode matching are required.
SM/MM Fiber Array Standard multi-channel fiber interface solution for optical devices.
PM Fiber Array Related option for polarization-sensitive optical systems.
MPO/MTP Fiber Assembly Related high-density fiber connectivity solution for data center optical systems.

12. Call to Action

Looking for a compact 90° fiber array solution for optical packaging or photonic integration?

Contact GracyFiber with your requirements:

  • Channel count
  • Operating wavelength
  • Fiber core pitch
  • MT interface requirements
  • FA polishing angle
  • Fiber type
  • Fiber length
  • Optical application
  • Package constraints

Our engineering team can help evaluate the suitable fiber array configuration for your optical system.
