| Model Number: | 810108473 |
32F 4×MPO-12/APC Elite Male to 4×MPO-12/APC Elite Male Single-Mode Cable Assembly, G657A1, Method B

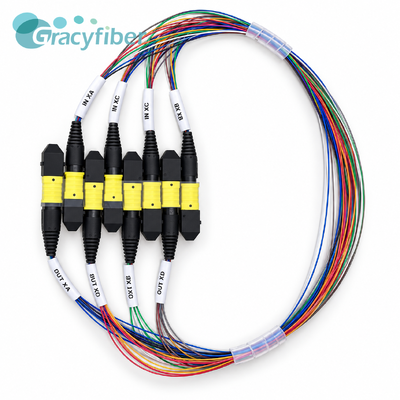

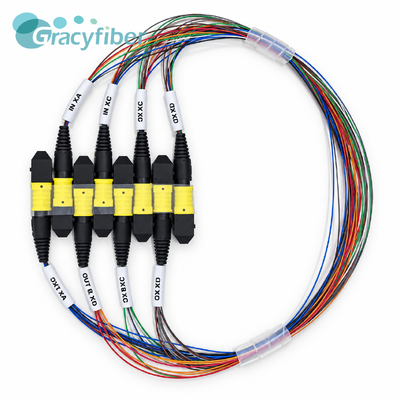

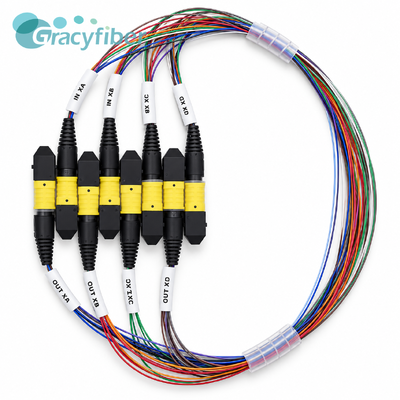

The GracyFiber 32F 4×MPO-12/APC Elite Male to 4×MPO-12/APC Elite Male Cable Assembly is a single-mode parallel fiber interconnect designed around G657A1 fiber and a compact Ø0.6 mm loose-tube structure. The assembly provides a total of 32 fibers through four MPO-12/APC male interfaces on each side and uses Method B polarity.
| Parameter | Specification |
|---|---|
| Product Configuration | 4× MPO-12/APC Elite Male to 4× MPO-12/APC Elite Male |
| Total Fiber Count | 32F |
| Fiber Type | Single-mode G657A1 |
| Connector Type | MPO-12/APC Elite Male |
| Connector Quantity | 4 input + 4 output |
| Polarity | Method B |
| MPO Key Orientation | Key UP on both ends |
| Test Wavelength | 1310 nm / 1550 nm |
| Insertion Loss | ≤0.35 dB |
| Return Loss | ≥60 dB |
| End-Face Angle | 8° ±0.2° |
| End-Face Geometry | Apex offset, radius of curvature and fiber height according to IEC 61755 |
| Cable / Loose Tube Diameter | Ø0.6 mm |
| Fiber Arrangement | 8-color fibers × 4 groups |
| Nominal Length | 500 mm, +50 / -0 mm |
| Operating Temperature | -20°C to +70°C |
| Material Compliance | RoHS 2.0 |
| Connector Housing / Boot | Yellow housing / black boot |
| Identification | IN XA–XD / OUT XA–XD marking |
| Item | Current Configuration |
|---|---|
| Connector | 4× MPO-12/APC Elite Male per side |
| Fiber Count | 32F |
| Fiber Type | G657A1 |
| Polarity | Method B |
| MPO Key Orientation | Key UP / Key UP |
| Cable Diameter | Ø0.6 mm |
| Length | 500 mm, +50 / -0 mm |
| Test Wavelength | 1310 / 1550 nm |
