1. Product Title

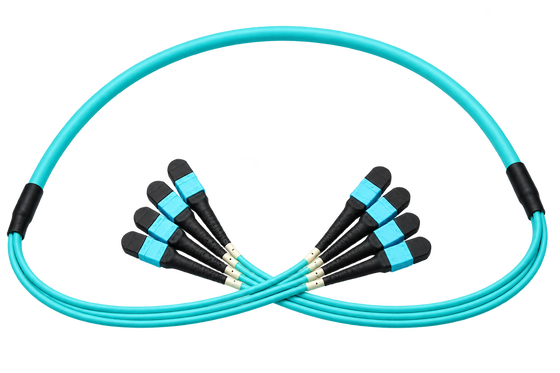

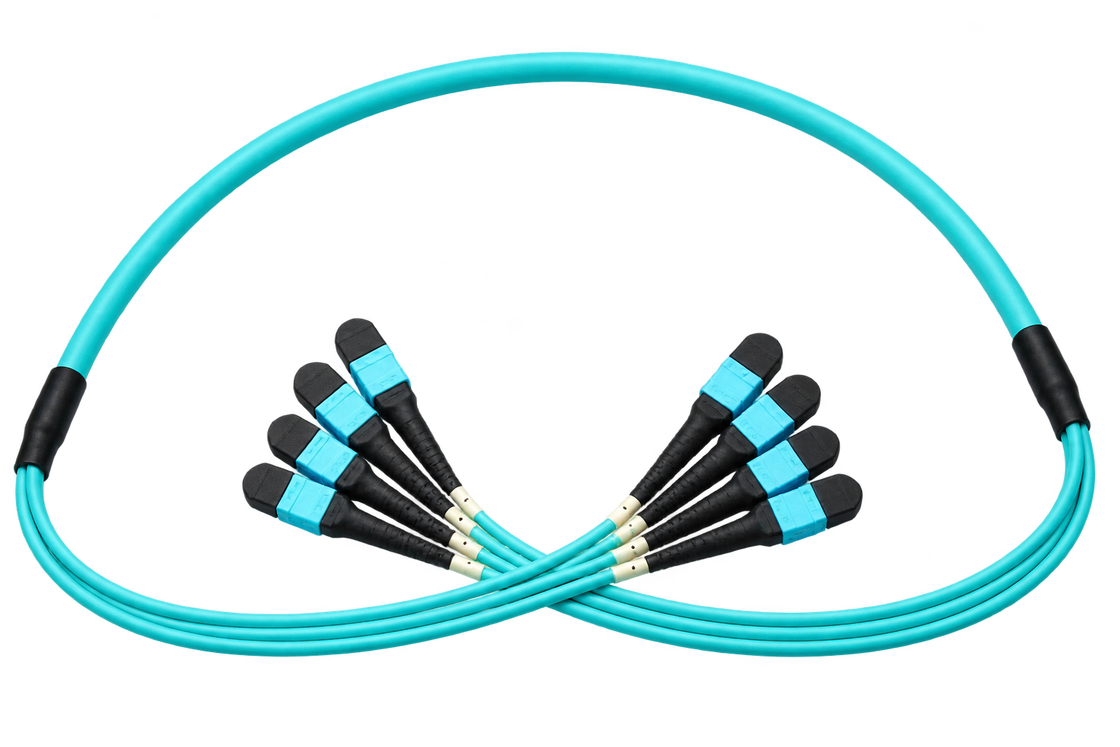

MTP®/MPO Trunk Cable for High-Density Data Center Connectivity

2. Product Overview

GracyFiber MTP®/MPO Trunk Cables are high-density, pre-terminated fiber optic assemblies designed for fast and scalable connectivity in modern data centers, enterprise networks, and high-speed communication infrastructures.

3. Key Features

• High-density pre-terminated MTP®/MPO fiber assembly
• 12F / 24F / 48F / 72F / 96F / 144F configurations
• Custom fiber-count configurations available
• 100% factory pre-terminated and tested
• LSZH / OFNR / OFNP jacket options
• Designed to reduce installation and deployment time
• Suitable for 40G / 100G network applications
• Applicable to higher-speed data center infrastructure

The supplied product information explicitly confirms factory pre-termination/testing, multiple jacket materials, configurable fiber counts, and rapid network deployment.

4. Applications

• Data Center Networks
• Enterprise Optical Networks
• Optical System Access Networks
• Storage Area Networks (SAN)
• Fiber Channel Infrastructure
• High-Density Fiber Architectures
• High-Speed Communication Infrastructure

The source specifically lists data center networks, optical-system access networks, storage-area-network fiber channels, and high-density architectures.

5. FAQ

What is an MTP®/MPO trunk cable?

An MTP®/MPO trunk cable is a pre-terminated high-density multi-fiber cable assembly used to connect optical distribution points, panels, cassettes, or other multi-fiber interfaces.

The supplied GracyFiber product is designed for rapid deployment in data centers, enterprise networks, and high-speed communication systems.

What fiber counts are available?

The supplied documentation lists:

• 12F
• 24F
• 48F
• 72F
• 96F
• 144F

Customized configurations are also stated as available.

Which cable jacket materials are available?

The listed jacket options are:

• LSZH
• OFNR
• OFNP

Is the MTP®/MPO trunk cable factory terminated?

Yes. The supplied documentation states that the cable is 100% pre-terminated and tested in the factory, which is intended to reduce field installation time.

Can the connector, polarity and fiber type be customized?

The current source confirms customizable fiber-count configurations but does not provide detailed connector gender, polish, polarity, or fiber-type options.

Please contact GracyFiber with the required configuration.

6. Technical Specifications

7. Configuration & Customization Options

Fiber Count

Confirmed configurations:

• 12F
• 24F
• 48F
• 72F
• 96F
• 144F
• Customized

Jacket Material

Available:

• LSZH
• OFNR
• OFNP

The document does not specify:

• MTP® or MPO exact interface
• Male / Female
• UPC / APC
• Standard / Elite performance grade

8. Detailed Product Description

The GracyFiber MTP®/MPO Trunk Cable is a pre-terminated multi-fiber optical assembly designed to simplify backbone and high-density fiber deployment.

Instead of terminating individual fibers at the installation site, the trunk cable arrives with the multi-fiber interfaces pre-terminated and factory tested. This construction can reduce installation steps and makes the assembly particularly relevant to structured cabling environments where a large number of optical fibers must be deployed between defined connection points.

The product family supports fiber counts from 12 fibers up to 144 fibers, providing different density levels for data center and network-infrastructure requirements. The supplied documentation also states that customized configurations are available.

Jacket options include LSZH, OFNR, and OFNP, enabling the cable construction to be selected according to the installation environment and project requirements.

The product description positions the trunk cable for 40G, 100G, 400G, and higher-speed optical infrastructure. However, the exact transceiver interface, fiber type, polarity method, and connector configuration must be selected according to the specific network architecture.

In a structured cabling system, the trunk cable commonly acts as the high-density backbone connection between optical distribution locations. Its pre-terminated format supports modular deployment and future network expansion without requiring individual field termination of every fiber.

9. Application Scenario

Application 1 — Data Center Backbone Cabling

In a data center, MTP®/MPO trunk cables can provide high-density fiber connectivity between distribution areas, patching locations, or equipment zones.

The multiple fiber-count options allow the backbone capacity to be selected according to the required network density. Data center networking is explicitly listed as an application in the supplied documentation.

Application 2 — Storage Area Network

Storage-area-network infrastructure may require dense optical links between servers, storage systems, and switching equipment.

The supplied document specifically identifies Storage Area Networking Fiber Channel as an application area.

Application 3 — High-Density Fiber Architecture

For facilities requiring large fiber counts in limited cabling space, 48F, 72F, 96F, or 144F trunk assemblies can consolidate multiple optical fibers into a pre-terminated cabling structure.

The product is explicitly positioned for high-density optical architectures.

10. Why GracyFiber

GracyFiber supplies passive fiber-optic connectivity products for data centers, optical communication, and high-density interconnection systems.

Related connectivity capabilities include:

• MTP®/MPO Trunk Cables
• MTP®/MPO Cassettes
• MTP®/MPO Harness Cables
• MTP®/MPO Branch Cables
• MTP®/MPO Patch Cords
• High-Density Fiber Patch Panels
• Fiber Arrays and optical interconnect assemblies

For a trunk-cable project, customers can provide the required fiber count, fiber type, connector configuration, polarity, jacket material, cable length, and optical-performance targets for technical evaluation.

11. Related Products

12. Call to Action

For an MTP®/MPO Trunk Cable quotation or technical evaluation, please provide:

• Fiber count
• Fiber type
• MTP®/MPO connector type
• Male / Female
• UPC / APC
• Polarity
• Standard or low-loss requirement
• Cable length
• Cable diameter
• Jacket material
• Pulling-eye requirement
• Target insertion loss / return loss
• Application and network architecture

GracyFiber can review the assembly configuration according to your high-density fiber connectivity requirements.
