1. Product Title

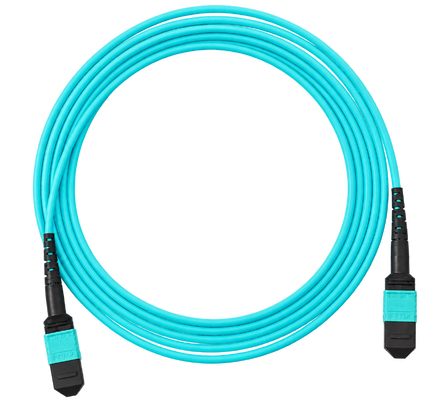

No-Contact MPO Patch Cord – High-Durability Multi-Fiber Optical Interconnect

2. Product Overview

GracyFiber No-Contact MPO Patch Cord is a multi-fiber optical interconnect designed for high-speed systems and applications requiring frequent mating cycles. Unlike a conventional MPO connection, its non-contact mating structure creates a micro air gap during connection, helping avoid physical friction between mating interfaces and reducing the risk of scratches and contamination caused by repeated insertion and removal.

The product is compatible with standard MPO interfaces and is intended for applications including 400G/800G optical modules, high-density data center cabling, optical test equipment, and high-reliability communication systems.

3. Key Features

• Non-contact MPO mating design
• Micro air gap during mating
• Helps reduce friction during repeated mating cycles
• Helps reduce scratching and contamination associated with repeated connection
• Stable insertion loss and return loss performance
• Designed for frequent mating applications
• Compatible with standard MPO interfaces
• Suitable for high-density multi-fiber optical interconnection

4. Applications

• 400G / 800G High-Speed Optical Modules
• Data Center High-Density Cabling
• Optical Testing & Instrumentation
• High-Reliability Communication Systems

5. FAQ

What is a No-Contact MPO Patch Cord?

A No-Contact MPO Patch Cord is a multi-fiber optical interconnect in which the mating structure creates a small air gap rather than relying on the same physical contact mechanism described for a standard MPO cable.

The supplied GracyFiber documentation states that this design helps avoid friction, scratches, and contamination associated with repeated mating.

What is the main advantage of the non-contact MPO design?

The main documented advantage is improved suitability for repeated mating. By avoiding repeated physical friction at the mating interface, the design is intended to reduce scratching and contamination while maintaining stable IL and RL performance.

Is the No-Contact MPO Patch Cord compatible with standard MPO interfaces?

Yes. The supplied product information specifically states that the product is compatible with standard MPO interfaces.

Can it be used for 400G and 800G applications?

The supplied documentation lists 400G/800G high-speed optical modules as an intended application. The exact fiber count, polarity, transceiver interface, and optical specification required for a specific 400G or 800G architecture should be confirmed before selection.

What insertion loss and return loss are specified?

The document states stable IL & RL performance, but it does not provide numerical insertion-loss or return-loss limits.

6. Technical Specifications

The current product file defines the mating concept, MPO compatibility, IL/RL stability, durability positioning, and applications, but it does not provide numerical optical or mechanical specifications.

7. Configuration & Customization Options

Connector Interface

Confirmed:

• MPO interface
• Compatible with standard MPO interface

8. Detailed Product Description

The GracyFiber No-Contact MPO Patch Cord is designed for multi-fiber optical systems where connectors may be mated and unmated repeatedly. Its defining feature is a non-contact mating architecture that creates a small air gap during connection rather than using the conventional physical-contact behavior described for standard MPO cables.

This structure is intended to address several practical issues associated with repeated connector use. Physical contact during frequent mating can expose optical interfaces to friction, scratching, and contamination. According to the supplied product documentation, the non-contact structure helps avoid these effects while providing stable insertion-loss and return-loss performance.

The product retains compatibility with a standard MPO interface, allowing it to be considered for systems already built around MPO-based multi-fiber connectivity.

Its intended applications include 400G and 800G optical modules, high-density data center cabling, optical testing and instrumentation, and other communication systems where connection reliability and repeated mating are important considerations.

For engineering selection, the No-Contact MPO Patch Cord should be specified according to the actual system interface. Parameters such as fiber count, fiber type, connector gender, polarity, wavelength, cable construction, insertion loss, return loss, and required mating-cycle durability are not defined in the current source material and should therefore be confirmed for each project.

9. Application Scenario

Application 1 — Optical Testing & Instrumentation

Optical test systems may require connectors to be repeatedly inserted and removed as different devices, modules, or channels are tested.

The non-contact MPO structure is designed for frequent mating while reducing friction, scratching, and contamination at the interface. This makes repeated connection an explicit use case for the product.

Application 2 — 400G / 800G Optical Module Testing and Interconnect

The supplied documentation identifies 400G/800G high-speed optical modules as a target application.

In these environments, the No-Contact MPO Patch Cord can provide a multi-fiber connection where repeated mating may occur during assembly, verification, or testing. The required fiber mapping and MPO configuration should be matched to the specific optical-module interface.

Application 3 — High-Density Data Center Cabling

MPO interfaces are used to consolidate multiple fiber channels into compact interconnect structures.

For high-density cabling systems where connections may be accessed repeatedly, the non-contact design provides an alternative MPO mating approach intended to reduce wear-related interface issues.

10. Why GracyFiber

GracyFiber provides passive optical components and multi-fiber connectivity products for optical communication, data center, and photonics applications.

Relevant product capabilities include:

• MPO/MTP Patch Cords
• No-Contact MPO Patch Cords
• MPO/MTP Trunk Cables
• MPO/MTP Harness / Branch Assemblies
• MPO/MTP Cassettes
• PM MT-MPO Assemblies
• Fiber Arrays and FAUs
• WDM Components
• PM Optical Components

For the No-Contact MPO Patch Cord, the supplied product information specifically addresses MPO interface compatibility, repeated mating, optical-performance stability, and applications in high-speed and high-reliability optical systems.

11. Related Products

12. Call to Action

Need a No-Contact MPO Patch Cord for repeated mating, optical testing, or high-density interconnection?

Send GracyFiber your required:

• Fiber count
• Fiber type
• MPO gender
• Connector polish
• Polarity / fiber mapping
• Operating wavelength
• Cable diameter
• Cable length
• Target insertion loss
• Target return loss
• Required mating-cycle durability
• Application
