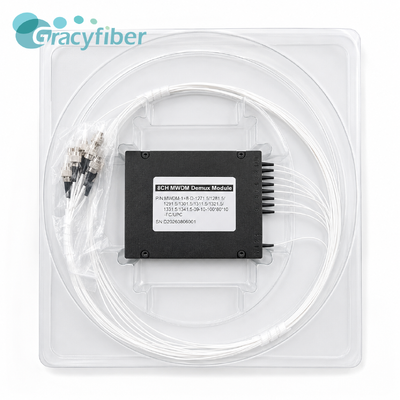

8CH MWDM Mux Module 1271.5 1341.5nm 10nm Spacing Low Loss Low PDL FC UPC 0.9mm Fiber ABS Box
The 8-Channel MWDM Mux Module is designed to combine eight O-band optical channels onto a common fiber for wavelength-division multiplexing systems. It supports channel wavelengths of 1271.5, 1281.5, 1291.5, 1301.5, 1311.5, 1321.5, 1331.5, and 1341.5 nm, with 10 nm channel spacing.
| Testing Data Sheet | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Product Name: | 8CH MWDM, 1271.5/1281.5/1291.5/1301.5/1311.5/1321.5/1331.5/1341.5nm , 100x80x10 Module with FC/UPC ,1.0±0.03m | |||||||||
| P/N: | MWDM-1x8-M-1271.5/1281.5/1291.5/1301.5/1311.5/1321.5/1331.5/1341.5-09-10-100*80*10-FC/UPC | |||||||||
| S/N: | M20260806001 | |||||||||
| Date: | 2026/8/6 | |||||||||
| Testing Data | ||||||||||
| Parameter | Units | Value | ||||||||
| Wavelength Range | nm | 1260~1380 | ||||||||
| Operating Wavelength | nm | 1271.5 | 1281.5 | 1291.5 | 1301.5 | 1311.5 | 1321.5 | 1331.5 | 1341.5 | |
| Insertion Loss | dB | 0.61 | 0.85 | 0.90 | 0.99 | 1.10 | 1.33 | 1.49 | 1.63 | |
| Isoation Adjacent | dB | ≥25 | ||||||||
| Isoation Non-Adjacent | dB | ≥35 | ||||||||
| Ripple | dB | ≤0.5 | ||||||||
| Directivity | dB | >50 | ||||||||
| Return Loss | dB | >45 | ||||||||
| PDL | dB | ≤0.1 | ||||||||
| PMD | ps | ≤0.10 | ||||||||
| Connectors | / | FC/UPC | ||||||||
| Fiber Type | / | 0.9mm loose tube ,G657A1 | ||||||||
| Fiber Length | m | 1±0.03 | ||||||||
| Power Handing(mW) | mW | 300 | ||||||||
| Operating Temperature | °C | -5 ~ +75 | ||||||||
| Storage Temperature | °C | -40 ~ +85 | ||||||||
| Dimensions (LxWxH) | mm | 100x80x10 | ||||||||
| * testing data include connectors | ||||||||||
| Test By: | ||||||||||
The module combines eight channels centered at 1271.5, 1281.5, 1291.5, 1301.5, 1311.5, 1321.5, 1331.5, and 1341.5 nm. The channel spacing is 10 nm, and the combined optical signal is routed through the common port.
The FC/UPC connector end faces are subjected to 100% 3D inspection as an internal quality-control process. The core area is required to be free of defects, while the cladding area is evaluated according to defined scratch and defect-size limits.
