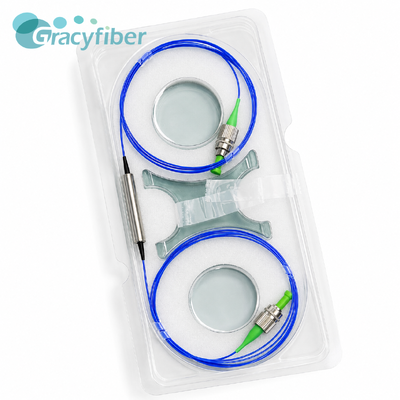

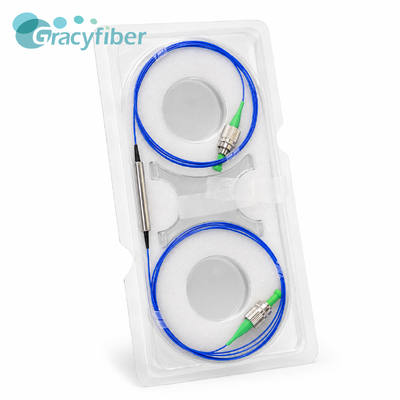

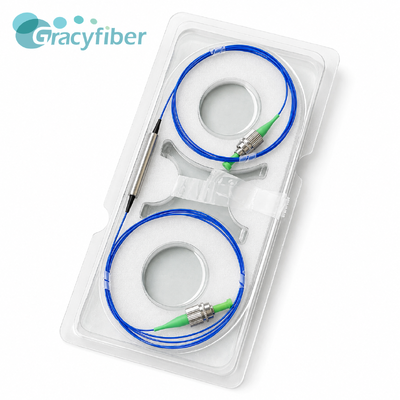

1550nm Dual Stage PM Fiber Isolator 500mW Corning PM1550 Slow Axis High Isolation Low Loss FC APC Steel Tube，Passive Optical Components

1550nm Dual Stage PM Fiber Isolator 500mW Corning PM1550 Slow Axis High Isolation Low Loss FC APC Steel Tube，Passive Optical Components

Model Number: 910001242-01
Detail Information
Product Description
Detail Information
Operating Wavelength:
1550±15nm
Insertion Loss:
≤0.9dB
Isolation:
≥45dB
Optical Power:
0.5W
Highlight:

1550nm PM fiber isolator high isolation

,

Corning PM1550 slow axis isolator

,

FC APC steel tube optical isolator

Product Description
1. Product Overview

This 1550nm dual-stage polarization-maintaining isolator uses Corning PM1550 polarization-maintaining fiber, operates at a wavelength of 1550±15nm, and supports 0.5W optical power.

2. Product Features

1550nm Dual Stage PM Fiber Isolator 500mW Corning PM1550 Slow Axis High Isolation Low Loss FC APC Steel Tube，Passive Optical Components

  • Dual-stage polarization-maintaining isolator structure
  • Operating wavelength range: 1550±15nm
  • Insertion loss IL≤0.9dB
  • Isolation ISO≥45dB
  • Polarization extinction ratio ER≥21dB
  • Return loss RL≥55dB
  • Optical power handling capacity: 0.5W
  • Uses Corning PM1550 polarization-maintaining fiber
  • Slow-axis operation, fast-axis blocking
  • Arrow on the steel tube surface for indicating the direction of optical signal transmission
  • Encapsulated in Ø5.5*38mm steel tube
  • Equipped with 0.9mm blue fiber optic sleeve
  • Total length including connector: 100±10cm
  • Equipped with FC/APC fan-port connector
  • Operating temperature range: -5～+70℃
  • Equipped with a number tube for easy product identification and management
  • Includes a neutral English test report
  • Packaged in a blister pack
3. Applications:
  • 1550nm polarization-maintaining fiber laser
  • Polarization-sensitive optical communication systems
  • Fiber optic amplifiers and laser optical paths
  • Coherent optics and interferometry systems
  • Fiber optic sensing and precision testing equipment
  • Reverse optical feedback suppression
  • Polarization-maintaining passive device testing
  • Optical instruments and system integration
