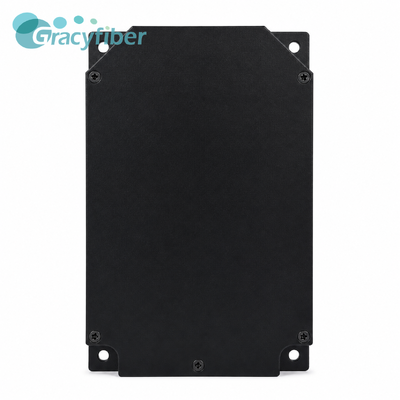

4CH 100GHz DWDM Mux Module C22 C34 C47 C59 Low Insertion Loss SMF-28e FC APC ABS Box Fiber Optic Multiplexer,Passive Optical Devices
The DWDM-1-M4C22PS2010-FAFA is a compact 100 GHz 4-channel DWDM Mux Module designed to combine or separate optical signals at ITU channels C59, C47, C34, and C22 over a single-mode fiber link.
| Performance Specifications | Unit | Value 1 | Value 2 |
|---|---|---|---|
| Channels | CH | 4 | 4 |
| Operating Wavelength | nm | C22/C34/C47/C59 | C31/C34/C36/C38 |
| Channel Spacing | GHz | 100G | 200G |
| Transmission Band | nm | ITU ±0.11 | ITU ±0.22 |
| DWDM Insertion Loss | dB | ≤1.8 | ≤1.8 |
| Min. Extinction Ratio at 23°C | dB | / | ≥16 |
| Isolation – Adjacent | dB | ≥28 | ≥28 |
| Isolation – Non-adjacent | dB | ≥40 | ≥40 |
| Ripple | dB | ≤0.5 | ≤0.5 |
| Directivity | dB | ≥50 | ≥50 |
| Return Loss | dB | ≥45 | ≥45 |
| Polarization Dependent Loss | dB | <0.2 | <0.2 |
| Work Axis | / | / | Slow Axis Alignment |
| Operating Temperature | °C | -5～65 | -5～65 |
| Storage Temperature | °C | -40～85 | -40～85 |
| Max. Optical Power | mW | 300 | 300 |
| Package Size (L*W*D) | mm | 100*80*10 | 100*80*10 |
| Fiber Length | m | 1.0±0.05 | 1.0±0.05 |
| Fiber Type | / | 2.0 mm Protective Cover (Yellow) | 2.0 mm Protective Cover (Blue) |
| Fiber Type | / | SMF-28e | PM1550 Fiber |
| Connector | / | FC/APC | FC/APC |
This 4-channel DWDM Mux Module supports ITU channels C59, C47, C34, and C22. These channels can be combined onto one common fiber or separated into individual wavelength ports, depending on the configured transmission direction.
Yes. Connector type, fiber length, tubing specification, package size, and DWDM channel combination can be configured according to the customer’s optical network requirements. Any customized insertion-loss or environmental requirements should be confirmed before production.
