1x2 Tap WDM MM T50 R50 850 950nm OM5 Multimode Fiber Coupler LC UPC Low Loss for Optical Monitoring

Detail Information

Product Description

Detail Information

Operating Wavelength:

850-950nm

Insertion Loss:

≤3.8dB

Fiber Length:

18-22cm

Package Dimension:

5.5 × 38mm

Highlight:

OM5 multimode fiber coupler LC UPC

1x2 tap WDM MM T50 R50

low loss optical monitoring coupler

Product Description

1. Product Overview

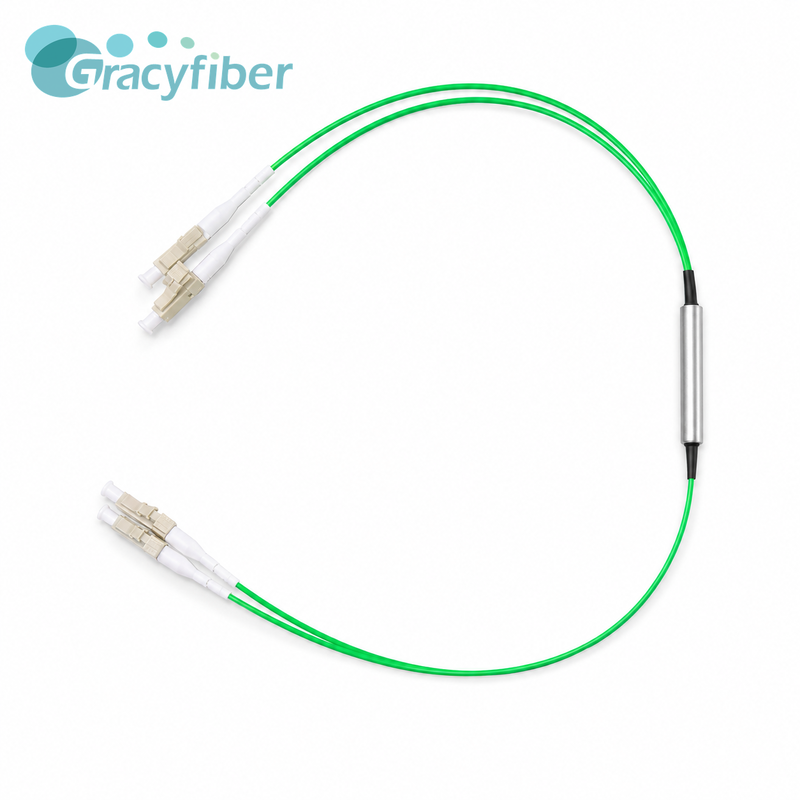

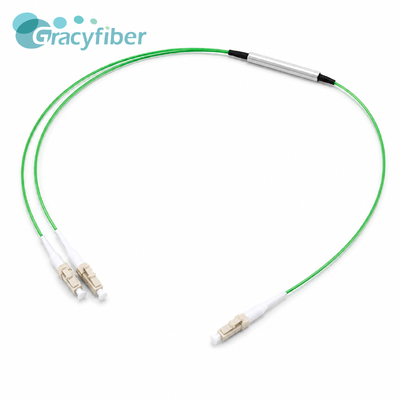

This 1×2 multimode Tap WDM uses OM5 Corning fiber and 0.9mm green loose tube packaging, supports operating wavelengths of 850~950nm, and has a splitting ratio of T50:R50.

2. Product Features

Parameters	T50R50
Operating Wavelength (nm)	850–950(LED light source)
Transmission Insertion (dB)	3.8
Reflection Insertion (dB)	3.8
Fiber Type	Corning OM5 of Green 0.9 mm loose tube
PDL (dB)	≤0.2
RL (dB)	≥20
Directivity (dB)	≥25
Maximum Optical Power (mW)	300
Fiber Length (cm)	18–22(Including Connector)
Operating Temperature (°C)	-5–75
Storage Temperature (°C)	-40–85
Package Dimension (mm)(Φ×L)	5.5 × 38
Connector	LC/UPC(MM)

1×2 multimode Tap WDM structure, supporting T50:R50 splitting ratio
Operating wavelength range 850~950nm, compatible with LED light source multimode systems
Uses Corning OM5 multimode fiber, suitable for high-speed short-distance transmission applications
Insertion loss at T50/R50 ends ≤3.8/3.8dB, stable optical power distribution
Return loss RL＞20dB, reducing the impact of reflection on the system
PDL≤0.2dB, providing good polarization stability
Directivity ≥25dB, improving link monitoring reliability
Maximum optical power handling 300mW
0.9mm green loose tube protection, easy to identify and cabling
Steel tube components with steel cap, package size Ø5.5×L38±1mm
Standard LC/UPC multimode connector, facilitating system integration
Operating temperature -5~75℃, storage temperature -40~85℃

3. Applications

Multimode optical link power monitoring
Data center short-distance optical communication systems
850nm multimode optical module testing
Optical network signal distribution and detection
Optical line protection monitoring
Multimode link performance testing platform
Optical communication laboratory and production testing
OM5 high-speed multimode cabling system
