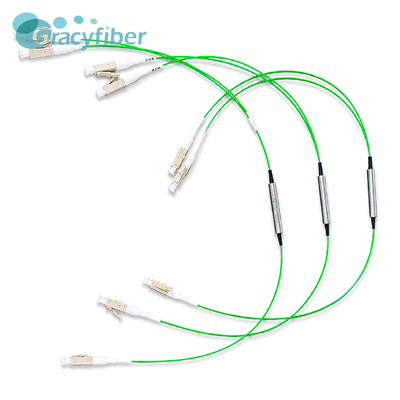

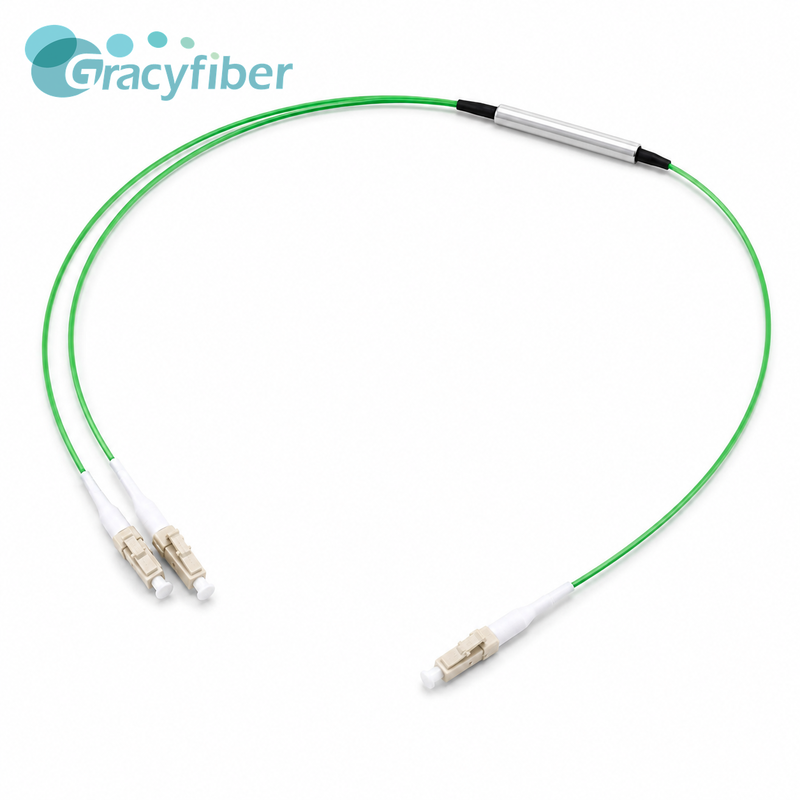

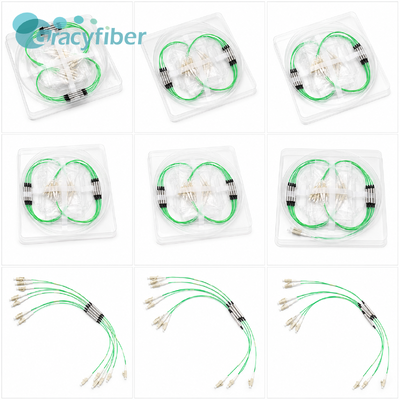

This 1×2 Tap WDM multimode module employs a T50:R50 split structure, operating at wavelengths from 850–950nm, and is suitable for LED light source applications.
| Parameters | T50R50 |
|---|---|
| Operating Wavelength (nm) | 850–950(LED light source) |
| Transmission Insertion (dB) | 3.8 |
| Reflection Insertion (dB) | 3.8 |
| Fiber Type | Corning OM5 of Green 0.9 mm loose tube |
| PDL (dB) | ≤0.2 |
| RL (dB) | ≥20 |
| Directivity (dB) | ≥25 |
| Maximum Optical Power (mW) | 300 |
| Fiber Length (cm) | 18–22(Including Connector) |
| Operating Temperature (°C) | -5–75 |
| Storage Temperature (°C) | -40–85 |
| Package Dimension (mm)(Φ×L) | 5.5 × 38 |
| Connector | LC/UPC(MM) |
