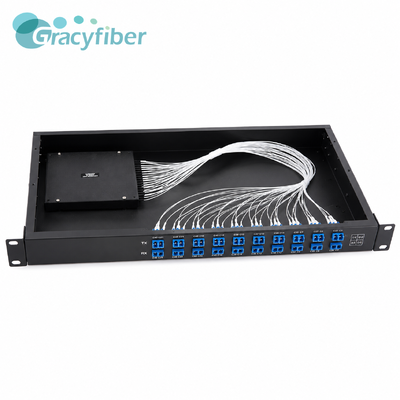

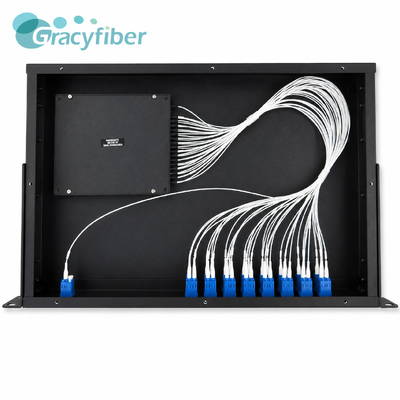

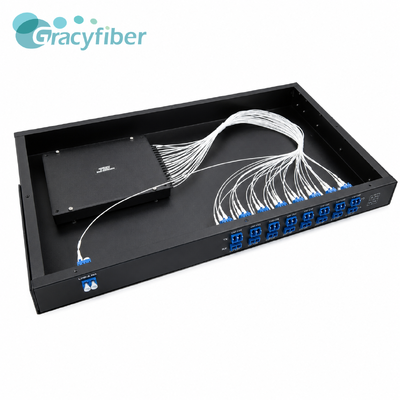

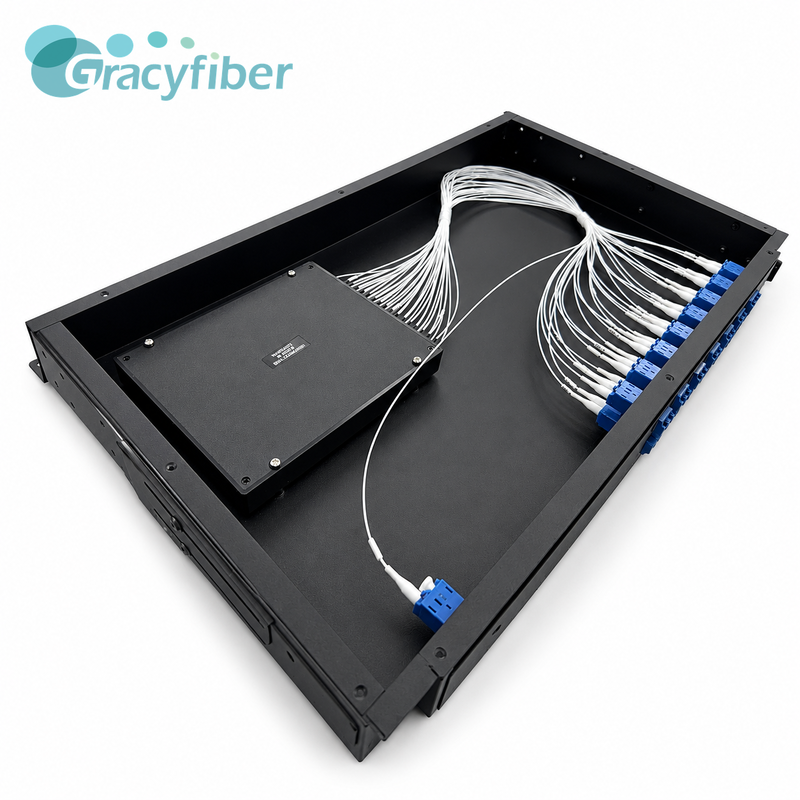

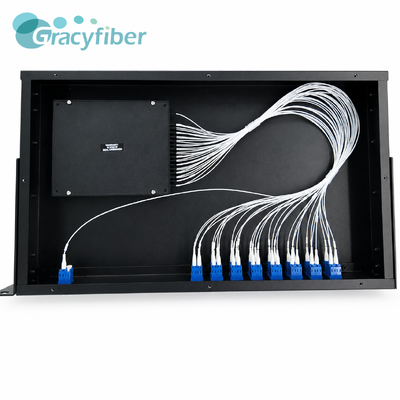

The module features a 32-channel port configuration in a 19-inch 1U rack-mount package. Both the COM and Port ends use LC/UPC interfaces, making it suitable for high-capacity DWDM wavelength division multiplexing and demultiplexing systems.
| Parameters | Unit | Specification | ||||
|---|---|---|---|---|---|---|
| Min | Type | Max | ||||
| Channel Space | GHz | 150 | ||||
| Nos of Channel | CH | 32 | 40 | |||
| Channel Frequencies | THz | ITU Grid | ||||
| Available Channel Frequency Range | THz | 191.45 | - | 196.1 | ||
| Center Wavelength Accuracy | nm | -0.05 | - | +0.05 | ||
| GHz | -6.25 | - | -6.25 | |||
| PassBand @Center wavelength | nm | -0.10 | - | +0.10 | ||
| GHz | -12.5 | - | +-12.5 | |||
| Bandwidth | @-1.0dB | GHz | 115 | - | - | |
| @-3.0dB | GHz | 160 | - | - | ||
| @-20dB | GHz | - | - | 310 | ||
| Port Insertion Loss | dB | ≤5.3 | ||||
| Isolation | Adjacent | dB | ≥15 | |||
| Non-adjacent | dB | ≥28 | ||||
| Insertion Loss Uniformity at ITU | dB | ≤1.2 | ||||
| Port Insertion Loss Ripple | dB | ≤0.6 | ||||
| PDL | dB | ≤0.5 | ||||
| Return Loss | dB | ≥40 | ||||
| Directivity | dB | ≥50 | ||||
150GHz Channel Spacing Design
Utilizes 150GHz channel spacing, with channel frequencies conforming to ITU Grid standards, suitable for 800G-ZR high-speed wavelength division transmission applications.
Wide C-Band Coverage Capability
Supports the C14.5–C61 channel range, covering wavelengths from 1528.77–1565.9 nm, meeting the multiplexing and demultiplexing requirements of multi-wavelength DWDM systems.
32CH Mux/Demux Port Configuration
Provides 32 channels, enabling multiplexing and demultiplexing of multiple customer-side optical signals, suitable for paired deployment at both ends of a link.
