Name: 2CH SMFA Single-mode Fiber Array, 250μm Pitch, FC/APC, Low Insertion Loss
Brand: Shenzhen Gracyfiber Technology Co., Ltd.
SKU: 910001702-29
Availability: InStock

Model Number:	910001702-29

Detail Information

Product Description

Detail Information

Document:

2ch-sm-fa.pdf

Channel Spacing:

250μm

Polishing Angle:

0°

Insertion Loss:

≤0.3dB

Fiber Type:

Nufern UHNA7+G657A2

Highlight:

2CH SMFA single-mode fiber array

250μm pitch FC/APC fiber array

low insertion loss fiber array

Product Description

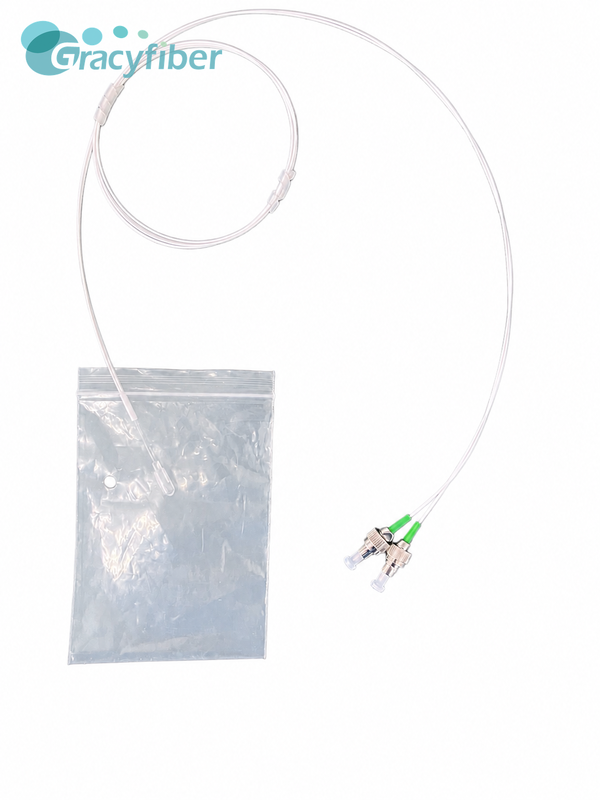

2CH SMFA Single-mode Fiber Array, 250μm Pitch, FC/APC, Low Insertion Loss

Product Overview

This product integrates FC/APC connectors and 0.9mm white loose tubes, featuring low insertion loss, compact structure, and stable and reliable optical coupling performance.

Features

Parameters	Unit	Spec.	Value
Channel	/	2	OK
Material	/	Quartz Glass	OK
Channel Spacing	μm	250	OK
Polishing Angle	Degree	A0°	OK
Package(L)X(W)X(H)	mm	102.52.5	OK
Insertion Loss	dB	≤0.3	0.15



Fiber Type	/	Nufern UHNA7+G657A2	OK
Length	m	1±0.1	OK
Connector	/	FC/APC	OK
Operating Temperature (℃)		0～65	OK
Storage Temperature (℃)		-40～85	OK

Low insertion loss, IL≤0.3dB, ensuring stable optical signal transmission.

Configured with Nufern UHNA7+G657A2 fiber, accommodating special optical field matching and bending performance.

2CH SMFA Single-mode Fiber Array, 250μm Pitch, FC/APC, Low Insertion Loss 0

Applications

Silicon photonics chip coupling and optical packaging
Optical module and transceiver testing
Fiber array coupling components
Integrated optical device packaging
Optical communication experimentation and R&D testing
High-precision fiber alignment systems
Optical passive device production and testing
