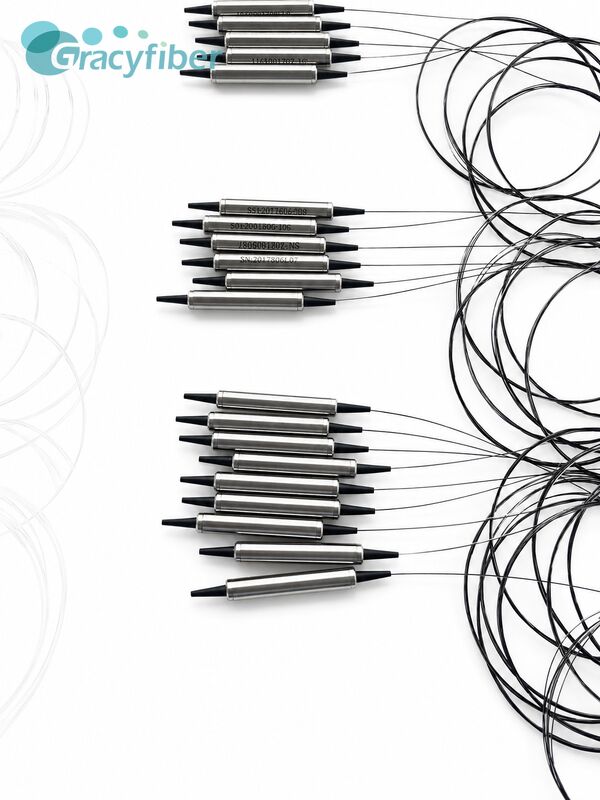

850nm 2x2 PM Filter Coupler
Ø Low Insertion Loss
Ø Low Extinction Ratio
Ø Dual Axis working
Ø High Stability and Reliability
Ø EDFA
Ø Fiber Optical Instrument
Ø Coherent Communication
Ø Power Monitoring
Ø Fiber Sensor
|
Parameters |
Unit |
Value |
|
|
Port Type |
/ |
2x2 |
|
|
Operating Wavelength |
nm |
850 |
|
|
Operating Bandwidth |
nm |
±20 |
|
|
Tap Ratio |
% |
50/50 |
|
|
Insertion loss |
dB |
≤4.3 |
|
|
Extinction Ratio |
CR＞5% |
dB |
≥20 |
|
CR≤5% |
dB |
≥18 |
|
|
Return Loss |
dB |
≥45 |
|
|
Power Handling |
mW |
≤500 |
|
|
Tensile Load |
N |
≤5 |
|
|
Operating Temperature |
℃ |
-5 ~ +70 |
|
|
Storage Temperature |
℃ |
-40～+80 |
|
|
Work axis |
/ |
Dual Axis |
|
|
Fiber Length |
m |
1.0±0.05 |
|
|
Fiber Type |
/ |
PM780-HP fiber of 900μm loose tube |
|
|
Connector |
/ |
FC/UPC |
|
|
Package Dimension |
mm |
Φ5.5×L38 |
|
4. Package Dimension
5. Ordering information
|
Coup er |
- |
XXX |
XXX |
XX |
XXX |
XXXXX |
XX |
XX |
- |
X |
X |
|
|
|
Port NO |
Wavelength |
Splitting Ratio |
Modules type |
Fiber type |
Fiber Type |
Fiber Length |
|
Com connector |
Port Connector |
|
PMC= PM Coupler |
|
22=2X2 |
131=1310nm |
50=50/50 |
ST1=Ф5.5X35 |
PM780=PM780-HP |
02=250um fiber |
10=1.0m |
|
0=None |
0=None |
|
|
|
155=1550nm |
90=90/10 |
ST2=Ф5.5X38 |
|
09=0.9mm Tube |
XX=Customized |
|
1=FC/UPC |
1=FC/UPC |
|
|
|
|
850=850nm |
99=99/01 |
ST3=Ф3.0X54 |
|
20=2.0mm Tube |
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
|
980=980nm |
|
XX=Customized |
|
30=3.0mm Tube |
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
|
106=1064nm |
|
|
|
XX=Customized |
|
|
4=SC/APC |
4=SC/APC |
|
|
|
|
780=780nm |
|
|
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
|
|
|
|
|
|
|
|
|
|
X=Customized |
X=Customized |
|
Part Number |
Product Description |
|
PMC-2278050ST3PM7800910-11 |
2*2 PM Filter 850nm Coupler,Splitting Ratio 50/50,Steel Tube type, PM780-HP Fiber With 0.9mm Hytrel White Tube,fiber Length 1m (with connector), connector FC/UPC,Dual Axis working. |
