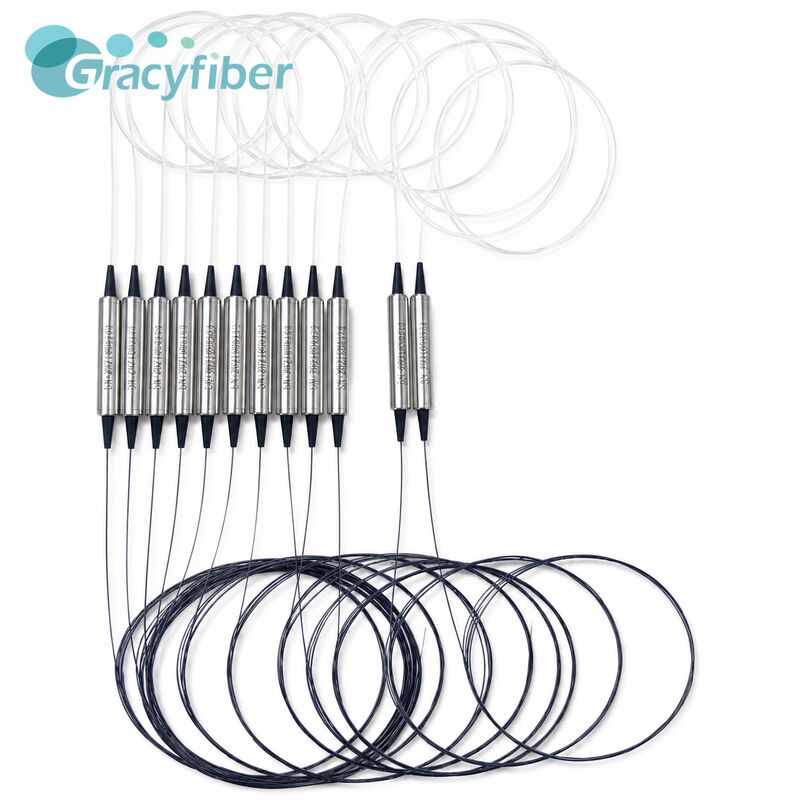

(2x2) Filter PM Fiber Standard Coupler
Ø Low Insertion Loss
Ø Low Extinction Ratio
Ø Available for Slow Only or Fast Axis App
Ø High Stability and Reliability
Ø EDFA
Ø Fiber Optical Instrument
Ø Coherent Communication
Ø Power Monitoring
Ø Fiber Sensor
|
Parameters |
Unit |
Value |
|
Operating Wavelength |
nm |
1550 |
|
Operating Bandwidth |
nm |
+/-40 |
|
Splitting Ratio |
dB |
10/90 |
|
Insertion loss |
dB |
≤11.3/1.0 |
|
Typical Excess Loss |
dB |
≤0.7 |
|
Uniformity |
dB |
≤0.5 |
|
Polarization Extinction Ratio |
dB |
≥22 |
|
Return Loss |
dB |
≥55 |
|
Power Handling |
mW |
≤300 |
|
Directivity |
dB |
≥55 |
|
|
Operating Temperature |
℃ |
-5~+65 |
|
|
Storage Temperature |
℃ |
-40～+80 |
|
|
Port Type |
/ |
2x2; |
|
|
Fiber Type |
/ |
Corning Panda fiber |
|
|
Fiber Length |
m |
1.0±0.05 |
|
|
Connector |
/ |
FC/APC |
|
|
Package Dimension |
900μm Loose Tube |
mm |
Φ5.5×38 |
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.
4. Package Dimension
5. Ordering information
|
Coup er |
- |
XXX |
XXX |
XX |
XXX |
XX |
XX |
- |
X |
X |
|
|
|
Port NO |
Wavelength |
Splitting Ratio |
Modules type |
Fiber Type |
Fiber Length |
|
Com connector |
Port Connector |
|
PMC= PM Coupler |
|
12=1X2 |
131=1310nm |
50=50/50 |
ST1=Ф5.5X35 |
02=250um fiber |
10=1.0m |
|
0=None |
0=None |
|
|
22=2X2 |
155=1550nm |
10=10/90 |
ST2=Ф5.5X38 |
09=0.9mm Tube |
XX=Customized |
|
1=FC/UPC |
1=FC/UPC |
|
|
|
|
980=980nm |
01=01/99 |
SB=90 X20 X10 |
20=2.0mm Tube |
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
|
106=1064nm |
|
XX=Customized |
30=3.0mm Tube |
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
|
780=780nm |
|
|
XX=Customized |
|
|
4=SC/APC |
4=SC/APC |
|
|
|
|
|
|
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
|
|
|
|
|
|
|
|
|
X=Customized |
X=Customized |
|
Part Number |
Product Description |
|
PMC-2215510ST20910-22(S) |
2*2 Filter PM Fiber Coupler,Splitting Ratio 10/90, Steel Tube type, PM 1550nm Panda fiber With 0.9mm Hytrel White Tube, fiber Length 1m (with connector), connector FC/APC, connector key is aligned to slow axis. |
