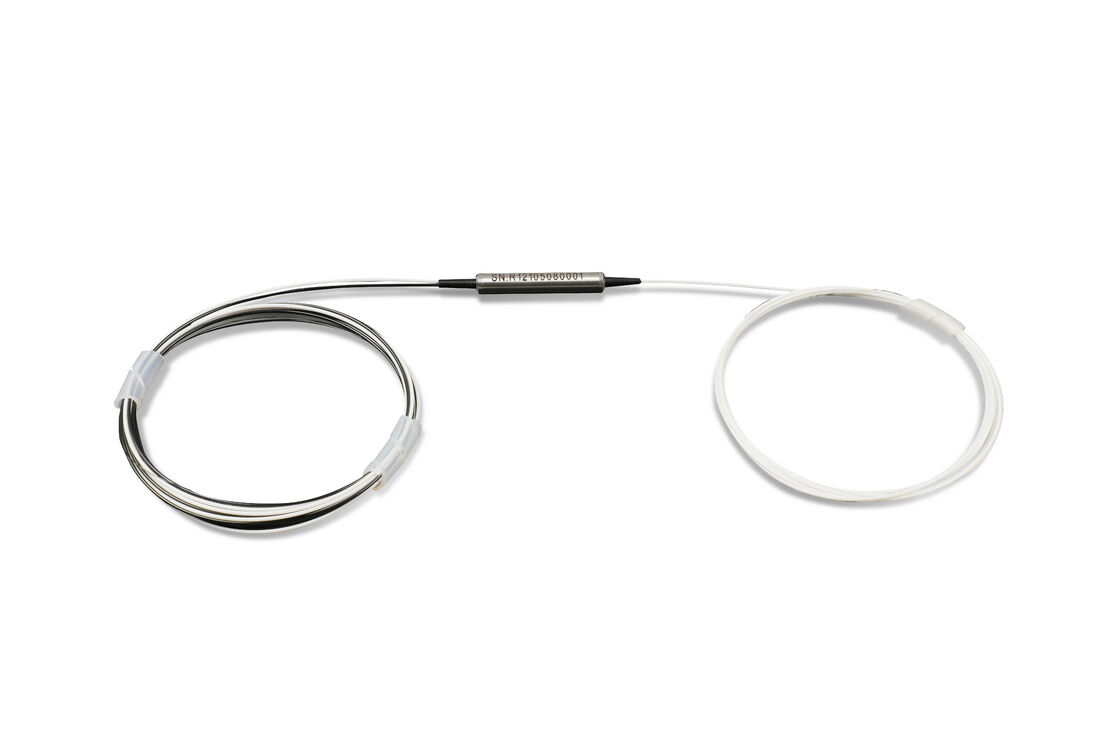

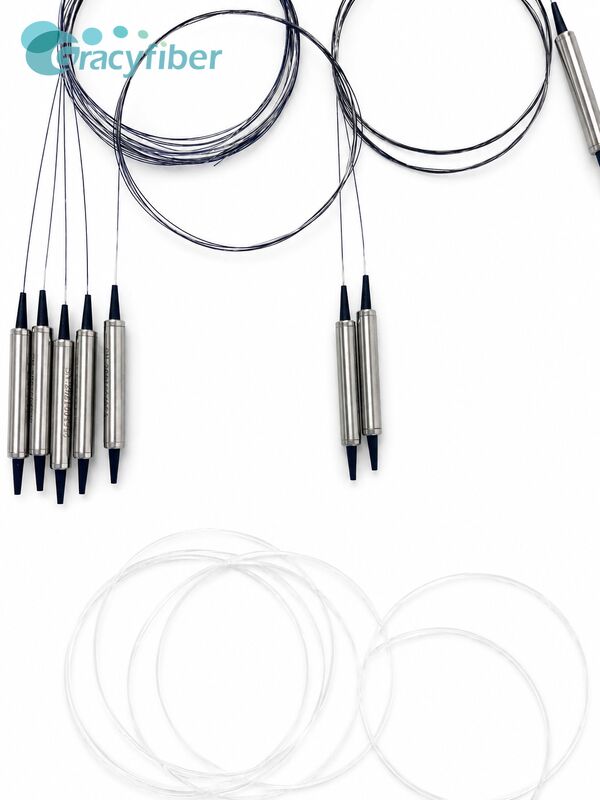

1x2 Fused PM Fiber Standard Coupler
1. Features
Ø Low Insertion Loss
Ø Low Extinction Ratio
Ø Available for Slow Only or Fast Axis App
Ø High Stability and Reliability
2. Applications
Ø EDFA
Ø Fiber Optical Instrument
Ø Coherent Communication
Ø Power Monitoring
Ø Fiber Sensor
3. Specifications
|
Parameters |
Unit |
Grade P |
|
Operating Wavelength |
nm |
1020 |
|
Operating Bandwidth |
nm |
+/-15 |
|
Splitting Ratio |
% |
50/50 |
|
Insertion loss |
nm |
≤3.8 |
|
Polarization Extinction Ratio |
dB |
≥20 |
|
Return Loss |
dB |
≥55 |
|
Power Handling |
W |
≤2 |
|
Directivity |
dB |
≥55 |
|
Operating Temperature |
℃ |
-5~+65 |
|
Storage Temperature |
℃ |
-40～+80 |
|
Port Type |
/ |
1x2; 2x2; |
|
Fiber Type |
/ |
Panda fiber 980nm |
|
Fiber Length |
m |
1.0±0.1m with Blue Tube |
|
Connector |
/ |
FC/APC |
|
Package Dimension |
mm |
φ3.0×54 |
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
The default connector key is aligned to slow axis.
Package Dimension
4．Package Dimension(Reference )
5. Ordering information
|
Couper |
- |
XXX |
XXX |
XX |
XXX |
XX |
XX |
- |
X |
X |
|
|
|
Port NO |
Wavelength |
Splitting Ratio |
Modules type |
Fiber Type |
Fiber Length |
|
Com connector |
Port Connector |
|
PM FBT= Coupler
|
|
12=1X2 |
131=1310nm |
50=50/50 |
ST1=Ф3.0X45 |
02=250um fiber |
10=1.0m |
|
0=None |
0=None |
|
|
22=2X2 |
155=1550nm |
90=90/10 |
ST2=Ф3.0X54 |
09=0.9mm Tube |
XX=Customized |
|
1=FC/UPC |
1=FC/UPC |
|
|
|
|
980=980nm |
99=99/01 |
SB=90 X20 X10 |
20=2.0mm Tube |
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
|
102=1020nm |
|
XX=Customized |
30=3.0mm Tube |
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
|
780=780nm |
|
|
XX=Customized |
|
|
4=SC/APC |
4=SC/APC |
|
|
|
|
|
|
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
|
|
|
|
|
|
|
|
|
X=Customized |
X=Customized |
|
Part Number |
Product Description |
|
PMFBT-1210250ST10910-22(S5) |
1*2 Fused PM Fiber Coupler,Splitting Ratio 50/50,Steel Tube type, PM 11020 nm Panda fiber With 0.9mm Hytrel Blue Tube, fiber Length 1m (with connector), connector FC/APC, connector key is aligned to slow axis. Power Handling Max is 5W |
FAQ
1. What should I be aware of with the version with connector?
The page states that adding a connector typically increases insertion loss by 0.3dB, reduces return loss by 5dB, and reduces extinction ratio by 2dB. The default connector key is aligned with the slow axis. For polarization-maintaining systems, it is recommended to specify the axis, connector type, and port definition during procurement.
2. How do you ensure product quality and consistency before shipment?
As a professional supplier of polarization-maintaining passive components, we can test insertion loss, splitting ratio, extinction ratio, return loss, directivity, axial alignment, port definition, connector end face, and appearance. This page shows that the product is ISO9001 and RoHS certified, with an MOQ of 1 piece and a monthly supply capacity of 100,000 pieces, supporting both sample verification and bulk delivery.
