| Brand Name: | Gracyfiber |
| MOQ: | 1pieces |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100,000 pieces per month |

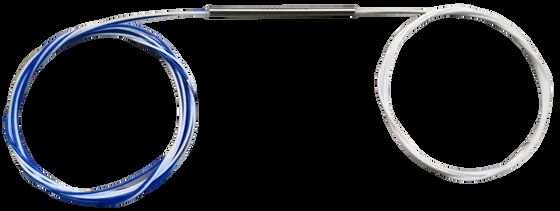

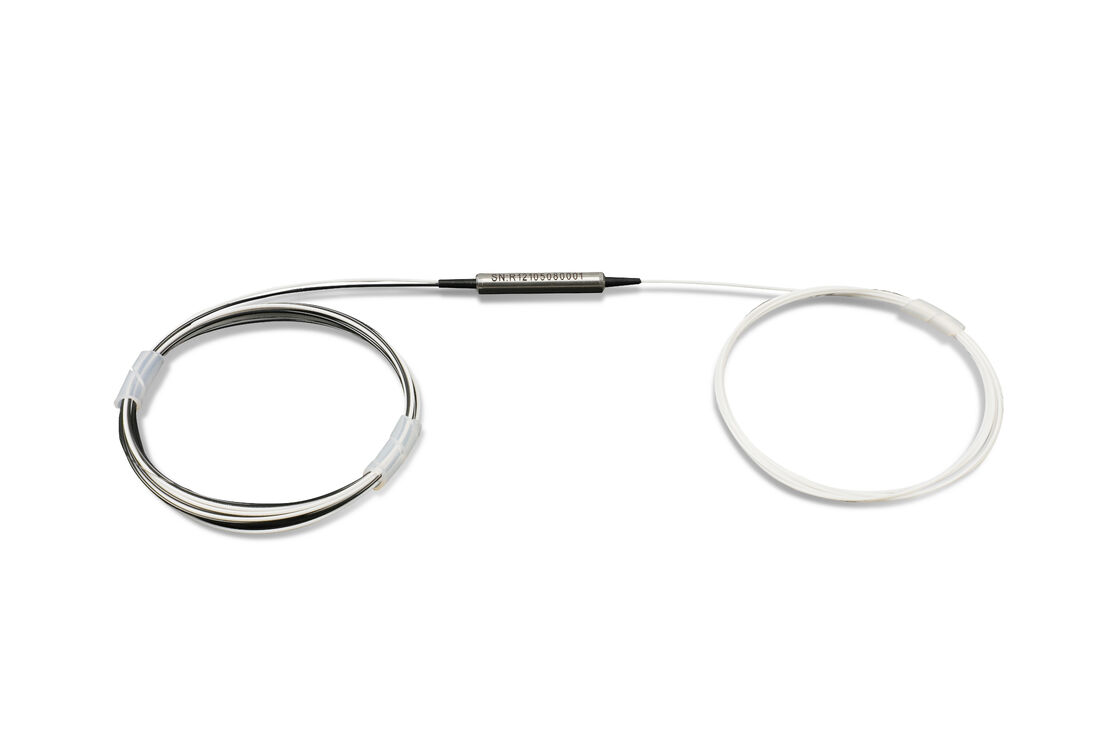

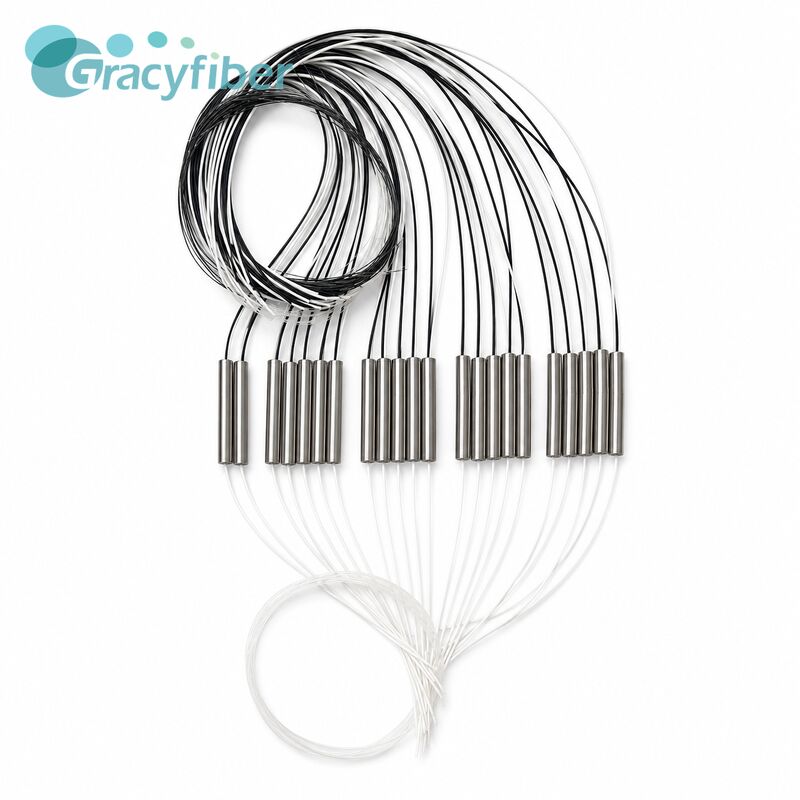

1x2(2x2) Fused PM Fiber Standard Coupler
1. Features
Ø Low Insertion Loss
Ø Low Extinction Ratio
Ø Available for Slow Only or Fast Axis App
Ø High Stability and Reliability
2. Applications
Ø EDFA
Ø Fiber Optical Instrument
Ø Coherent Communication
Ø Power Monitoring
Ø Fiber Sensor
3. Specifications
|
Parameters |
Unit |
Grade P |
Grade A |
Grade P |
Grade A |
|
|
Operating Wavelength |
nm |
1310,1550 |
980,1064 |
|||
|
Operating Bandwidth |
nm |
+/-15 |
||||
|
Typical Excess Loss |
nm |
≤0.6 |
≤0.8 |
≤0.6 |
≤0.8 |
|
|
Polarization Extinction Ratio |
dB |
≥20 |
≥18 |
≥20 |
≥18 |
|
|
Return Loss |
dB |
≥55 |
||||
|
Power Handling |
W |
≤1, ≤3, ≤5, ≤10 |
||||
|
Directivity |
dB |
≥55 |
||||
|
Operating Temperature |
℃ |
-5~+65 |
||||
|
Storage Temperature |
℃ |
-40～+80 |
||||
|
Port Type |
/ |
1x2; 2x2; |
||||
|
Fiber Type |
/ |
Panda fiber |
||||
|
Fiber Length |
m |
1.0±0.1m, others on request |
||||
|
Connector |
/ |
FC/APC,FC/UPC, others on request |
||||
|
Package Dimension |
250μm Bare Fiber |
mm |
φ3.0×45 |
|||
|
900μm Loose Tube |
mm |
φ3.0×54 |
||||
|
2mm/3mm Loose Tube |
mm |
90×20×10 |
||||
|
Splitting Ratio |
Unit |
Insertion loss |
|||
|
GradeP |
GradeA |
||||
|
50/50 |
dB |
≤3.6 |
≤3.8 |
≤3.8 |
≤4.0 |
|
20/80 |
dB |
≤7.8/1.6 |
≤8.2/1.7 |
≤8.2/1.7 |
≤8.4/1.9 |
|
10/90 |
dB |
≤11.4/0.86 |
≤11.8/1.0 |
≤11.8/1.4 |
≤12.0/1.6 |
|
5/95 |
dB |
≤14.4/0.8 |
≤14.9/0.9 |
≤15.0/0.9 |
≤15.2/1.0 |
|
1/99 |
dB |
≤21.7/0.4 |
≤22.2/0.6 |
≤22.2/0.7 |
≤22.5/0.8 |
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
The default connector key is aligned to slow axis.
4．Package Dimension
5. Ordering information
|
Couper |
- |
XXX |
XXX |
XX |
XXX |
XX |
XX |
- |
X |
X |
|
|
|
Port NO |
Wavelength |
Splitting Ratio |
Modules type |
Fiber Type |
Fiber Length |
|
Com connector |
Port Connector |
|
PM FBT= Coupler
|
|
12=1X2 |
131=1310nm |
50=50/50 |
ST1=Ф3.0X45 |
02=250um fiber |
10=1.0m |
|
0=None |
0=None |
|
|
22=2X2 |
155=1550nm |
90=90/10 |
ST2=Ф3.0X54 |
09=0.9mm Tube |
XX=Customized |
|
1=FC/UPC |
1=FC/UPC |
|
|
|
|
980=980nm |
99=99/01 |
SB=90 X20 X10 |
20=2.0mm Tube |
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
|
106=1064nm |
|
XX=Customized |
30=3.0mm Tube |
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
|
780=780nm |
|
|
XX=Customized |
|
|
4=SC/APC |
4=SC/APC |
|
|
|
|
|
|
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
|
|
|
|
|
|
|
|
|
X=Customized |
X=Customized |
|
Part Number |
Product Description |
|
PMFBT-1213150ST10910-22(S5) |
1*2 Fused PM Fiber Coupler,Splitting Ratio 50/50,Steel Tube type, PM 1310nm Panda fiber With 0.9mm Hytrel White Tube, fiber Length 1m (with connector), connector FC/APC, connector key is aligned to slow axis. Power Handling Max is 5W |
FAQ
1. What specifications can be customized?
Customizable port structure, operating wavelength, splitting ratio, package size, fiber sheath, fiber length, and connector type. Standard fiber length is 1.0±0.1m. Connectors include FC/APC, FC/UPC, and SC, LC, or other custom connectors can also be provided upon request. The default connector key alignment is with the slow axis.
2. How do you ensure quality and batch consistency before shipment?
This product page shows ISO9001 and RoHS certifications, an MOQ of 1 piece, and a monthly supply capacity of 100,000 pieces. As a professional supplier of polarization-maintaining passive components, we can test insertion loss, additional loss, splitting ratio, extinction ratio, return loss, directivity, axial alignment, port definition, connector endface, and appearance. We support sample verification, small-batch trial production, and mass production.
