Parameters	Unit	Value
Operating Wavelength	nm	1310
Operating Bandwidth	nm	±15
Insertion Loss	dB	≤14.4/0.8 (5/95)
Excess Loss at 23℃	dB	≤0.4
Extinction Ratio	dB	≥22
Return Loss	dB	≥50
Directionality	dB	≥50
Power	W	1
Operating Temperature	℃	-5~+65
Storage Temperature	℃	-40～+80
Port Type	/	1x2
Fiber Type	/	PM 13-U25D
Fiber Length	m	1.0±0.1m, others on request
Connector	/	FC/APC, others on request
Package Dimension	mm	φ3.0x54 (900μm Loose Tube )

4．Package Dimension

5. Ordering information

Couper	-	XXX	XXX	XX	XXX	XX	XX	-	X	X
		Port NO	Wavelength	Splitting Ratio	Modules type	Fiber Type	Fiber Length		Com connector	Port Connector
PM Fusion= PM FBT		12=1X2	131=1310nm	50=50/50	ST1=Ф3.0X45	02=250um fiber	10=1.0m		0=None	0=None
		22=2X2	148=1480nm	90=90/10	ST2=Ф3.0X54	09=0.9mm Tube	XX=Customized		1=FC/UPC	1=FC/UPC
			155=1550nm	99=99/01	SB=90 X20 X10	20=2.0mm Tube			2=FC/APC	2=FC/APC
			980=980nm	95=95/5	XX=Customized	30=3.0mm Tube			3=SC/UPC	3=SC/UPC
			106=1064nm			XX=Customized			4=SC/APC	4=SC/APC
			780=780nm						5=LC/UPC	5=LC/UPC
									6=LC/APC	6=LC/APC
									X=Customized	X=Customized

Part Number

Product Description

PMFBT-1213195ST20910-22(S)

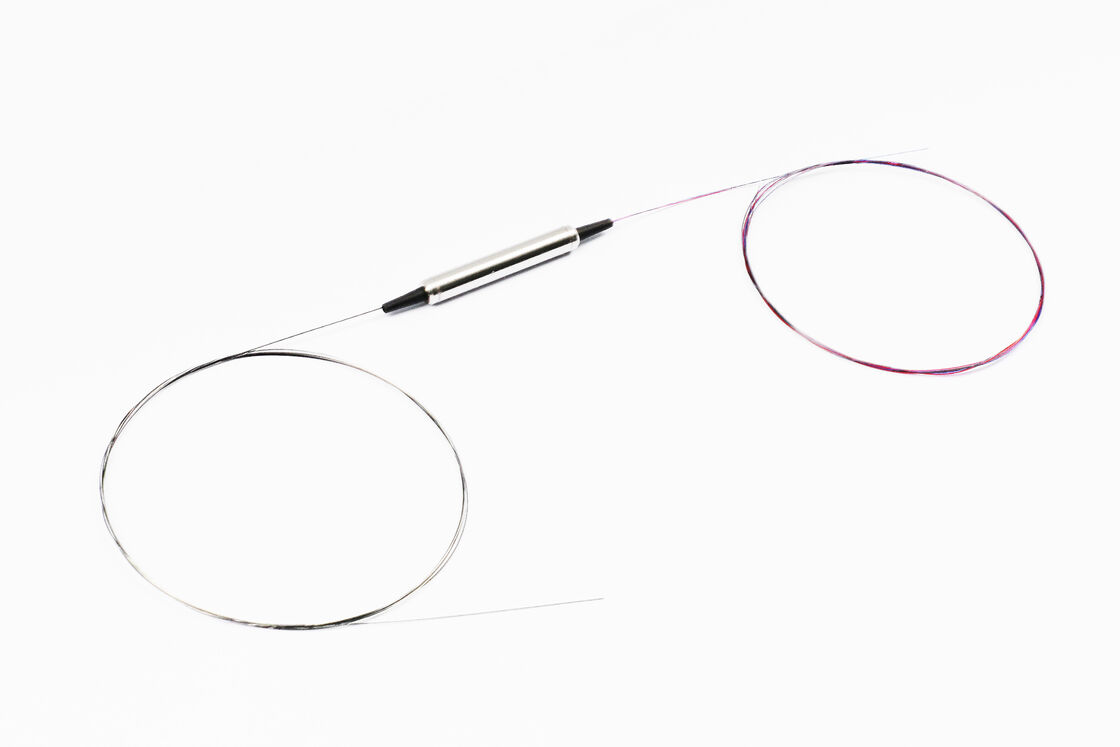

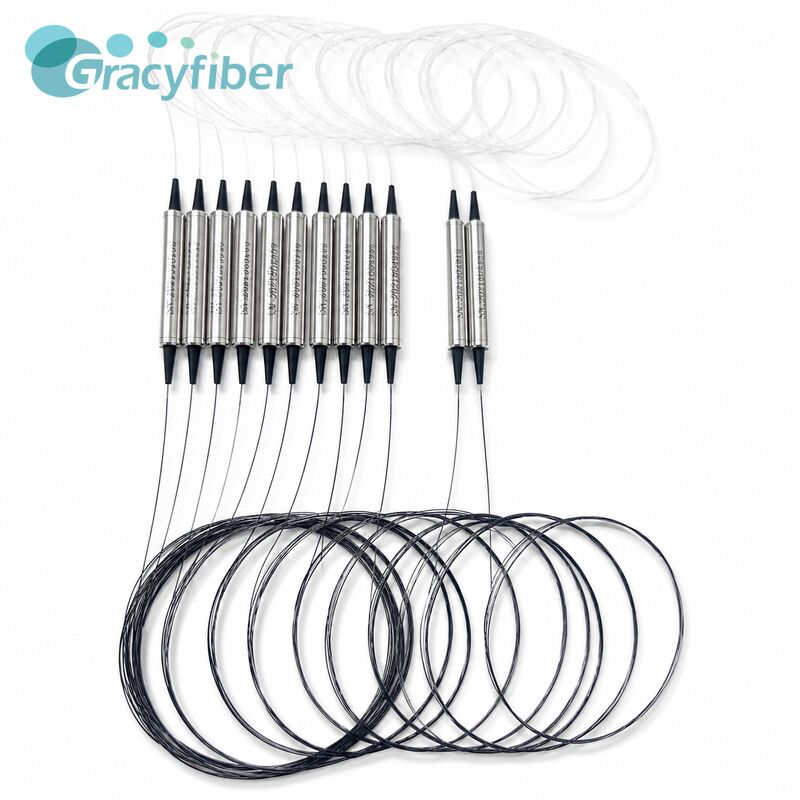

1*2 PM Fusion Coupler, Splitting Ratio 95/5, Steel Tube type,

PM13-U25D fiber with 0.9mm Hytrel White Tube, fiber Length 1m (with connector), connector FC/APC, connector key is aligned to slow axis, fast axis blocked.
