1. Features
Achieves exceptional low insertion loss alongside high stability and reliability.
Delivers a high extinction ratio and high optical isolation for superior signal integrity.
Versatile design available for both slow axis and fast axis applications.
2. Applications
Erbium-Doped Fiber Amplifiers (EDFA).
Precision fiber optical instruments and measurement systems.
High-performance fiber laser integration.
Advanced fiber optic sensing equipment.
3. Specifications
Operating Wavelength: 1550 nm with a broad bandwidth of ±30 nm.
Optical Isolation: Typical isolation of 46 dB (≥ 40 dB minimum).
Insertion Loss: Typical ≤ 0.7 dB (≤ 0.9 dB across -5°C to +70°C).
Polarization & Crosstalk: Extinction Ratio ≥ 22 dB, with Return Loss and Cross Talk ≥ 50 dB.
Fiber & Power: Built with Corning PM1550 Panda fiber, supporting power handling up to 300 mW.

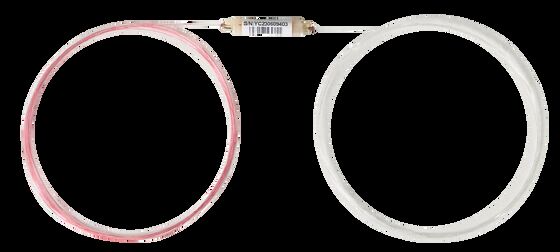

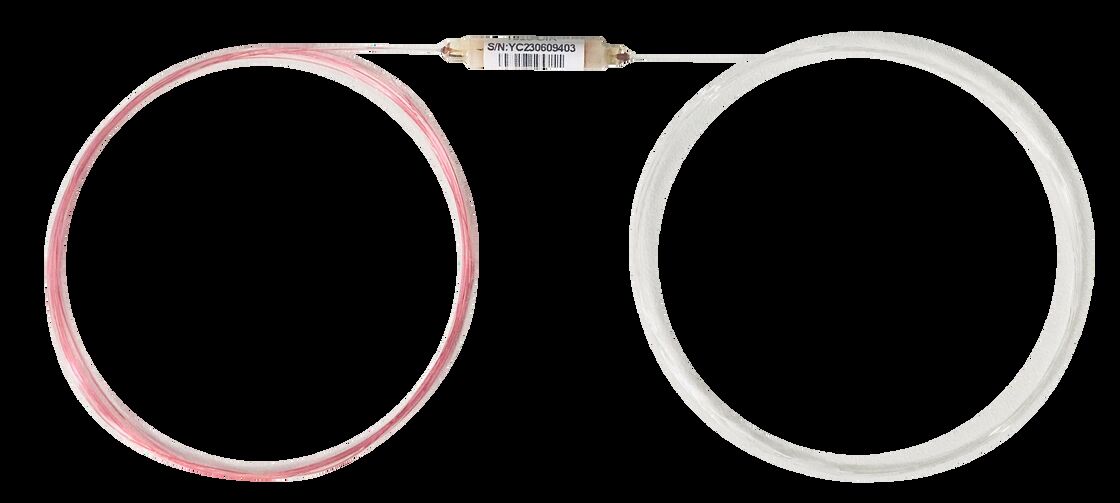

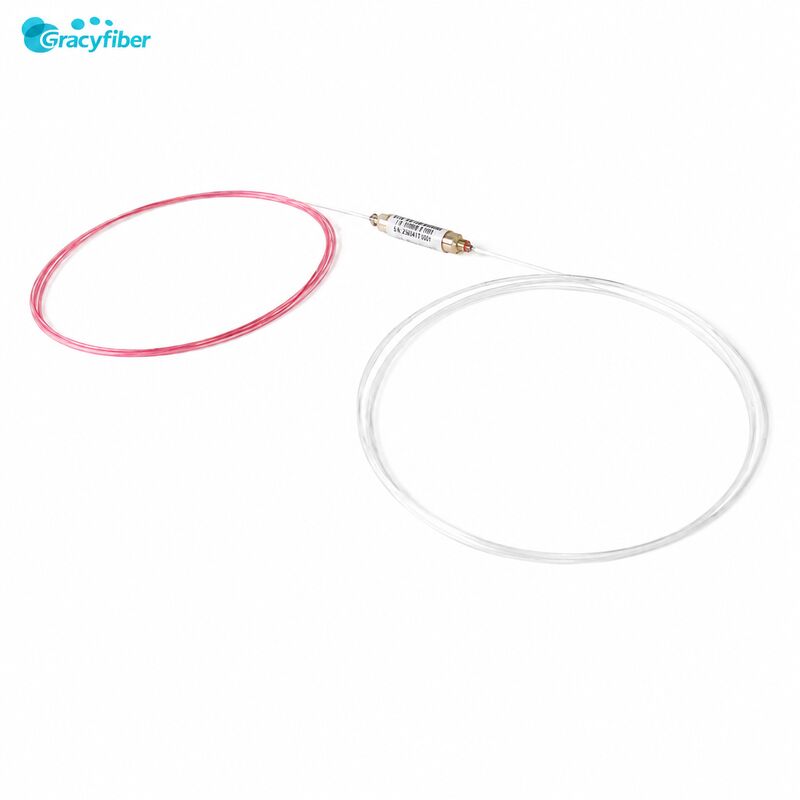

Package Dimensions: Compact steel tube form factor measuring 5.5 x 50 mm.
4. Google SEO Keywords
1550nm PM Optical Circulator
Polarization Maintaining Fiber Circulator
High Extinction Ratio Optical Circulator
3-Port PM Circulator 1550nm
EDFA Fiber Optic Circulator
PM1550 Circulator Manufacturer
