3 Port PM Fiber Optical Circulator 1550nm For EDFA Fiber Laser / Fiber Sensing

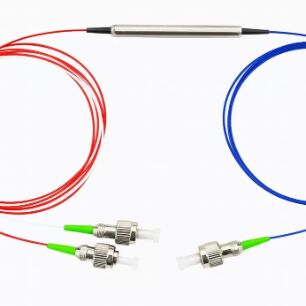

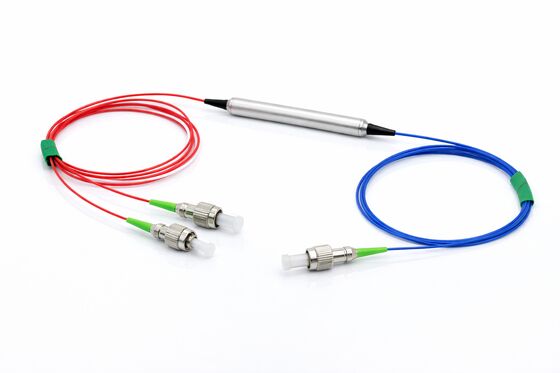

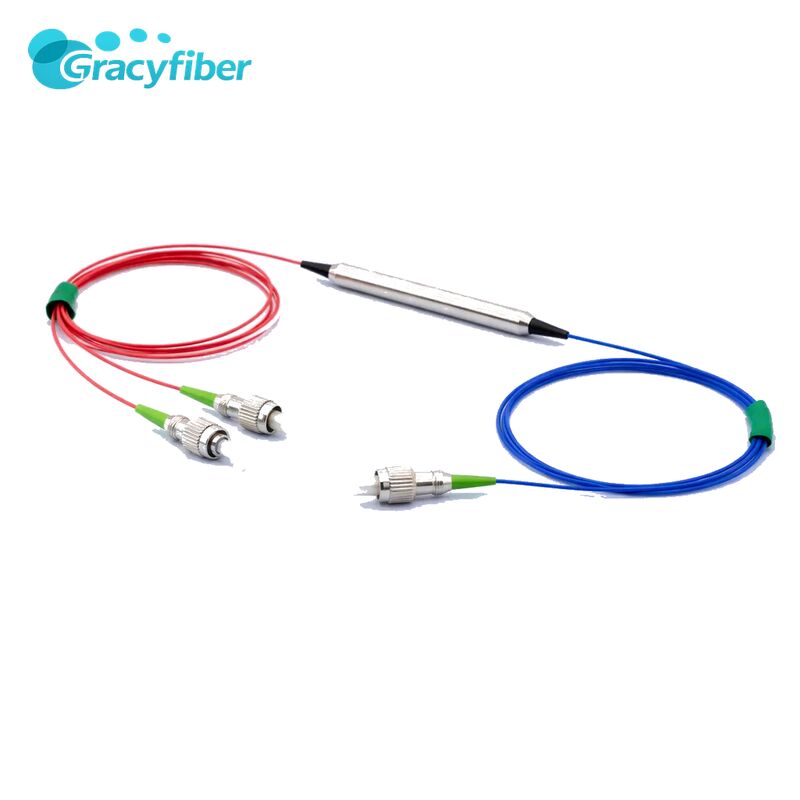

The Polarization Maintaining Optical Circulator is a three-port passive device specifically designed for C-band 1550nm applications. It typically operates at 1550nm with a bandwidth of ±30nm. Employing a unidirectional transmission topology of Port1→Port2 and Port2→Port3, it is used to orderly separate and guide optical signals propagating in different directions within the same system. The device uses Corning PM1550 panda-type polarization-maintaining fiber as its pigtail material, ensuring excellent polarization maintenance capability during slow-axis operation. Typical insertion loss is ≤0.7dB, and the maximum insertion loss does not exceed 0.9dB within the operating temperature range of -5 to +70℃, achieving a good balance between low loss and environmental stability. The steel tube enclosure measures φ5.5 * L50mm, supporting various sheath sizes (0.25/0.9/2.0/3.0mm) and different lengths of pigtails and connectors, facilitating flexible integration and cabling in modules, chassis, or experimental platforms.

At the system application level, polarization-maintaining fiber optic circulators are widely used in polarization-sensitive scenarios such as EDFA fiber amplifiers, fiber lasers, fiber optic sensing systems, and various optical instruments. For EDFAs, they can achieve directional separation of forward and backward amplified spontaneous emission (ASE) for gain monitoring and protection control; in fiber lasers, they can construct unidirectional resonant cavities, suppress reflection feedback, and improve laser stability; in fiber optic sensing and measurement systems, they can guide incident and reflected light along fixed paths to different ports, facilitating the construction of interferometric, reflective, or distributed sensing links; in precision optical testing instruments, circulators are commonly used for transmitting/receiving channel separation and multi-stage optical path direction management, making the system structure clearer and easier to debug and maintain.

From a core performance perspective, this polarization-maintaining circulator features low insertion loss, high isolation, high extinction ratio, and high return loss. Typical isolation is 46dB, with a minimum isolation of ≥40dB, effectively blocking reverse leakage and multipath reflections, significantly improving the system's optical signal-to-noise ratio. Typical insertion loss is ≤0.7dB, and ≤0.9dB under full temperature conditions, helping to alleviate link power budget pressure. The device's polarization extinction ratio is ≥22dB, ensuring good polarization selectivity and stability in slow-axis operation mode. Simultaneously, crosstalk is ≥50dB, and return loss is ≥50dB, effectively suppressing port reflections and bypass signals from interfering with the transmitter and pre-amplifier optical devices. The maximum handled optical power is ≤300mW, meeting the needs of most medium-power C-band applications. It's important to note that the specifications are for the unconnector version. Adding a connector increases insertion loss by approximately 0.3dB, reduces return loss by approximately 5dB, and decreases extinction ratio by approximately 2dB, facilitating accurate evaluation by engineers during link budgeting.

From a system integration and optical path design perspective, this polarization-maintaining circulator can be used independently or combined with other passive/active devices to form various functional modules. Typical applications include: cascading with FBGs (fiber gratings) or narrowband filters to achieve unidirectional loading/unloading of specific wavelength signals—for example, extracting a signal from the main optical path to the monitoring port, or injecting a specific wavelength into an existing link; in fiber lasers or amplification modules, directionally separating the monitoring optical path from the main signal channel to build an online power monitoring and fault diagnosis channel; in reflective sensing systems, probe light can be sent through Port1, reflected back to Port2 via the sensing arm, and then output to the probe end from Port3, achieving a clear division of the "transmit-sensor-receive" path and simplifying the optical path topology. In laboratories and R&D platforms, engineers often use it to build unidirectional ring cavities, suppress echo paths, or construct complex interference structures, allowing experimental optical paths to have higher controllability while maintaining polarization consistency.

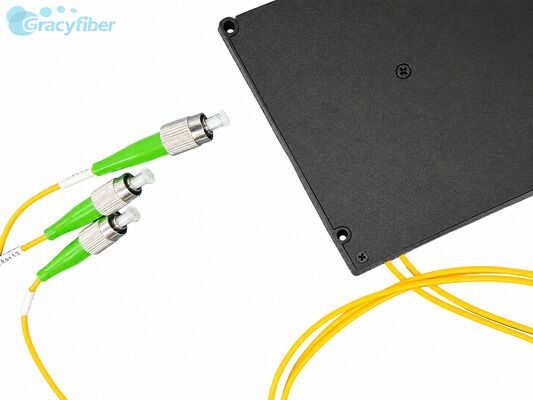

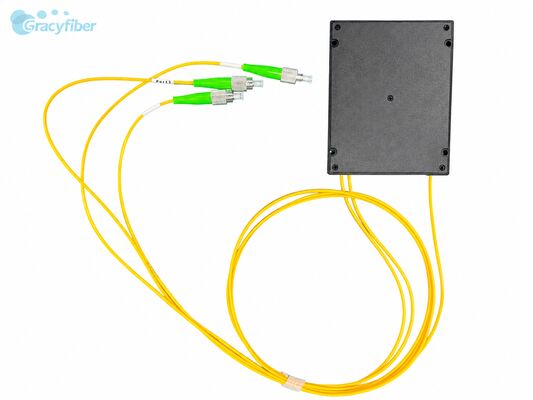

Compared to ordinary single-mode fiber circulators, this polarization-maintaining circulator has significant advantages in polarization control and system predictability. It uses panda-type PM fiber, and its structure aligns the PM fiber and connector keying with the slow axis while suppressing the fast axis, allowing engineers to clearly identify and maintain a uniform polarization direction during splicing and installation. This significantly reduces power fluctuations, phase errors, or measurement instability caused by random polarization drift. The combination of high isolation, high return loss, and low insertion loss enables it to reduce additional noise and crosstalk in complex optical networks and high-precision measurement systems, improving the overall signal-to-noise ratio and long-term stability. Meanwhile, through standardized ordering information coding, users can customize multiple dimensions such as the number of ports (3-port/2*2), operating wavelength (1064/1310/1480/1550/1650nm), number of stages (single-stage/dual-stage), package type (steel tube/cassette), pigtail type and length, sheath specifications, and connector type, reducing design costs and improving project adaptability.

Overall, the 1550nm Polarization Maintaining Optical Circulator is a key fundamental component for polarization-sensitive fiber optic systems, exhibiting excellent performance in low insertion loss, high isolation, high extinction ratio, high return loss, and environmental adaptability. It can reliably manage unidirectional optical paths in EDFAs, fiber lasers, sensing systems, and optical instruments, and its flexible packaging and diverse customization options can meet different structural and interface requirements in various experimental and engineering projects. For device manufacturers and system integrators looking to achieve stable orientation control, polarization maintenance, and power management within a limited space, this polarization-maintaining circulator offers a mature, reliable, and easy-to-integrate solution, laying a solid device foundation for building high-performance C-band optical links and next-generation photonic systems.
