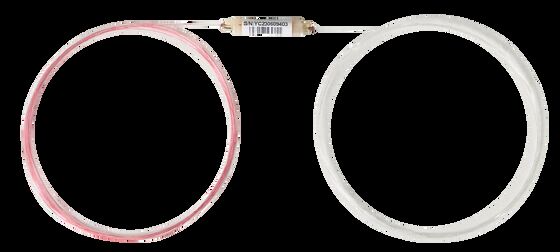

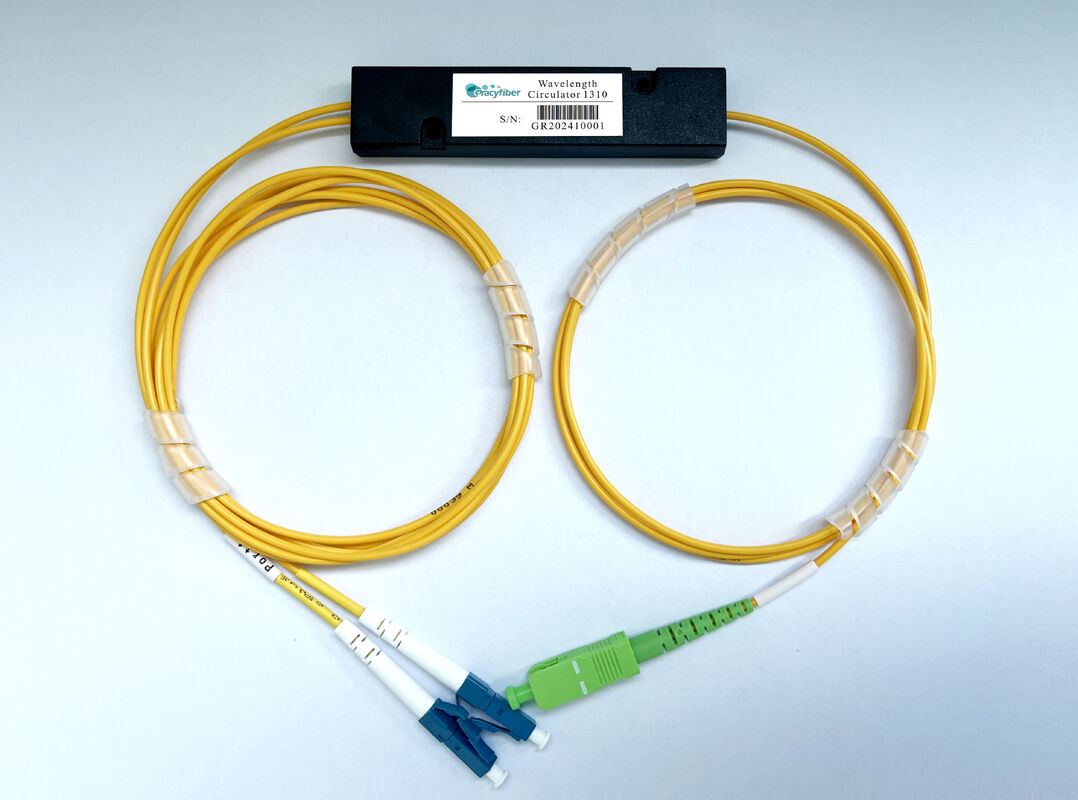

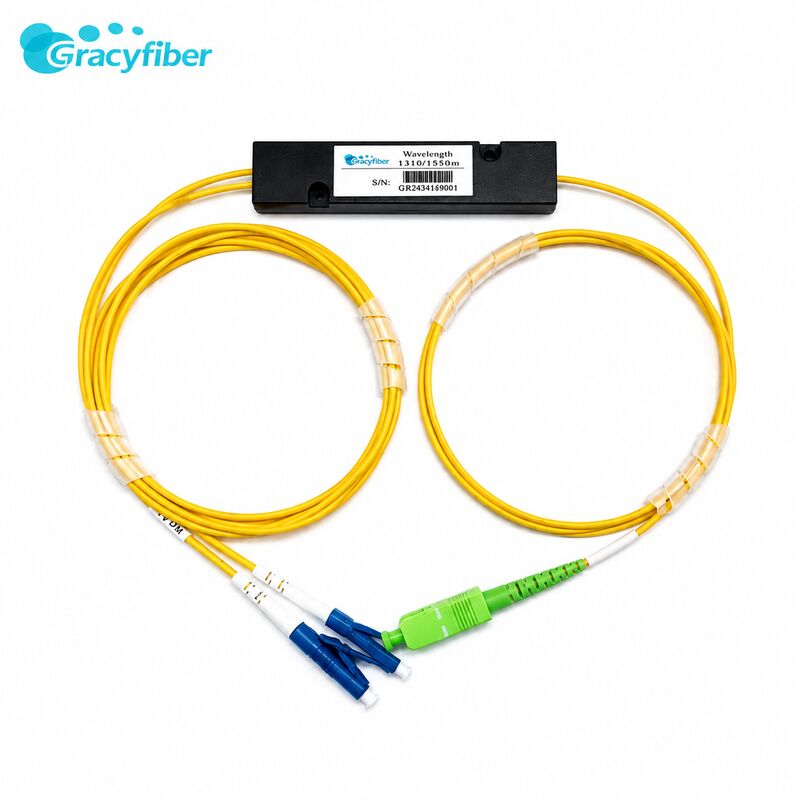

Polarization Maintaining Optical Circulator
Ø Low Insertion Loss
Ø High Extinction Ratio and High Isolation
Ø Available for Slow or Fast Axis App
Ø High Stability and Reliability
Ø EDFA
Ø Fiber Optical Instrument
Ø Fiber Laser
Ø Fiber Sensor
|
Parameters |
Unit |
Value |
|
Operating wavelength |
nm |
1550 |
|
Bandwidth |
nm |
±30 |
|
Typ. Isolation |
dB |
46 |
|
Isolation |
dB |
≥40 |
|
Typ. Insertion Loss |
dB |
≤0.7 |
|
Insertion Loss@-5 to +70 |
dB |
≤0.9 |
|
Extinction Ratio |
dB |
≥22 |
|
Cross Talk |
dB |
≥50 |
|
Return loss |
dB |
≥50 |
|
Power handling |
mW |
≤300 |
|
Fiber Type(panda Fiber) |
/ |
Corning PM1550 |
|
Operating temperature |
℃ |
-5 ~ +70 |
|
Storage temperature |
℃ |
-40 ~ +85 |
|
Dimensions |
mm |
φ5.5 × L50 |
*Above specifications are for devices without the connectors.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.
*The PM fiber and the connector key are aligned to the slow axis, fast axis is blocked.
4. Package Dimension
5. Ordering information
|
PMCIR |
- |
XXX |
XXX |
XX |
XX |
XXX |
XX |
XX |
- |
X |
X |
|
|
|
Port NO |
Wavelength |
Type Stage |
Axis |
Modules type |
Fiber Type |
Fiber Length |
|
Com connector |
Port Connector |
|
PMCIR= PM Circulator |
|
03=3 Ports |
106=1064nm
|
S= Single Stage |
SA= slow axis |
ST1=Ф5.5X50 |
02=250um fiber |
10=1.0m |
|
0=None |
0=None |
|
|
22=2X2 |
131=1310nm |
P= Daul Stage |
|
SB=90 X20 X10 |
09=0.9mm Tube |
XX=Customized |
|
1=FC/UPC |
1=FC/UPC |
|
|
|
|
155=1550nm |
|
|
XX=Customized |
20=2.0mm Tube |
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
|
165=1650nm |
|
|
|
30=3.0mm Tube |
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
|
148=1480nm |
|
|
|
XX=Customized |
|
|
4=SC/APC |
4=SC/APC |
|
|
|
|
|
|
|
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
|
|
|
|
|
|
|
|
|
|
X=Customized |
X=Customized |
|
Part Number |
Product Description |
|
PMCIR-03155PSAST10910-22 |
PM Circulator Steel Tube Device,dual stage, Corning PM 1550nm Panda fiber with 0.9mm red loose Tube, length fiber 1m , FC/APC connector, P grade, slow axis working only |
