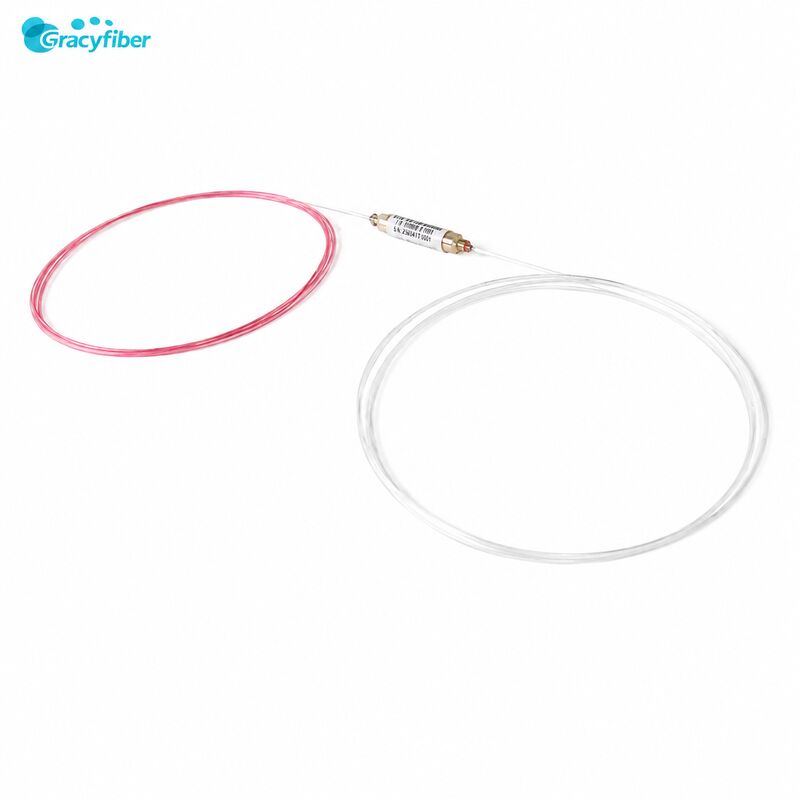

1550nm PM Circulator 3-Port Optical Device Low IL High Channel Isolation Telcordia Compliant for CATV DWDM Systems Custom
1Specifications
|
Parameters |
Value |
|
Configuration |
Port 1 to Port2; Port 2 to Port 3 |
|
Operating Wavelength (nm) |
1550±30 |
|
Insertion Loss (dB)@23℃ |
≤0.9 |
|
Isolation(min)(dB) @23℃ |
≥40 |
|
PDL (dB) |
≤0.15 |
|
PMD (dB) |
≤0.1 |
|
RL (dB) |
≥50 |
|
Cross Talk (dB) |
≥50 |
|
Max Power Handling (mW) |
500 |
|
Fiber Type |
SMF-28e with 900um Hytrel Tube |
|
Fiber Length(m) |
1.0 |
|
Packaging Dimensions(mm) |
Φ5.5*L38 |
|
Connector |
FC/APC |
|
Operating Temperature (℃) |
0~+70 |
|
Storage Temperature (℃) |
-40~+85 |
|
Port Mark |
Port1:Red, Port 2:Blue, Port3:White |
2 Mechanical Dimensions
3 Ordering information
|
CIR |
- |
X |
X |
XX |
XX |
XX |
- |
X |
X |
|
|
|
Type Stage |
Operating Wavelength |
Package Type |
Fiber Type |
Fiber Length |
|
Input Connector |
Output Connector |
|
CIR |
|
S= Single |
O=Oband |
ST=Φ5.5×L38
|
09=0.9mm tube |
10=1.0m |
|
0=No |
0=No |
|
|
|
D=Daul |
C=Cband |
XX= Customized |
20=2.0mm tube |
|
|
1=FC/UPC |
1=FC/UPC |
|
|
|
|
L=Lband |
|
NA=No Tube |
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
|
|
|
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
|
|
|
|
|
|
4=SC/APC |
4=SC/APC |
|
|
|
|
|
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
Part Number |
Product Description |
|
CIR-DCST0910-22 |
Circulator Steel Tube Device,Dual stage ,Fiber Length 1m with 0.9mm Hytrel Tube,FC/APC connectors. |
5 Ordering information
|
CIR |
- |
X |
X |
XX |
XX |
XX |
- |
X |
X |
|
|
|
Type Stage |
Operating Wavelength |
Package Type |
Fiber Type |
Fiber Length |
|
Input Connector |
Output Connector |
|
CIR |
|
S= Single |
O=Oband |
ST=Φ5.5×L38
|
09=0.9mm tube |
10=1.0m |
|
0=No |
0=No |
|
|
|
D=Daul |
C=Cband |
XX= Customized |
20=2.0mm tube |
|
|
1=FC/UPC |
1=FC/UPC |
|
|
|
|
L=Lband |
|
NA=No Tube |
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
|
|
|
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
|
|
|
|
|
|
4=SC/APC |
4=SC/APC |
|
|
|
|
|
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
Part Number |
Product Description |
|
CIR-DCST0910-22 |
Circulator Steel Tube Device,Dual stage ,Fiber Length 1m with 0.9mm Hytrel Tube,FC/APC connectors. |
