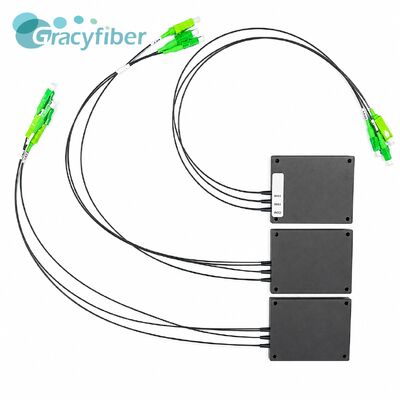

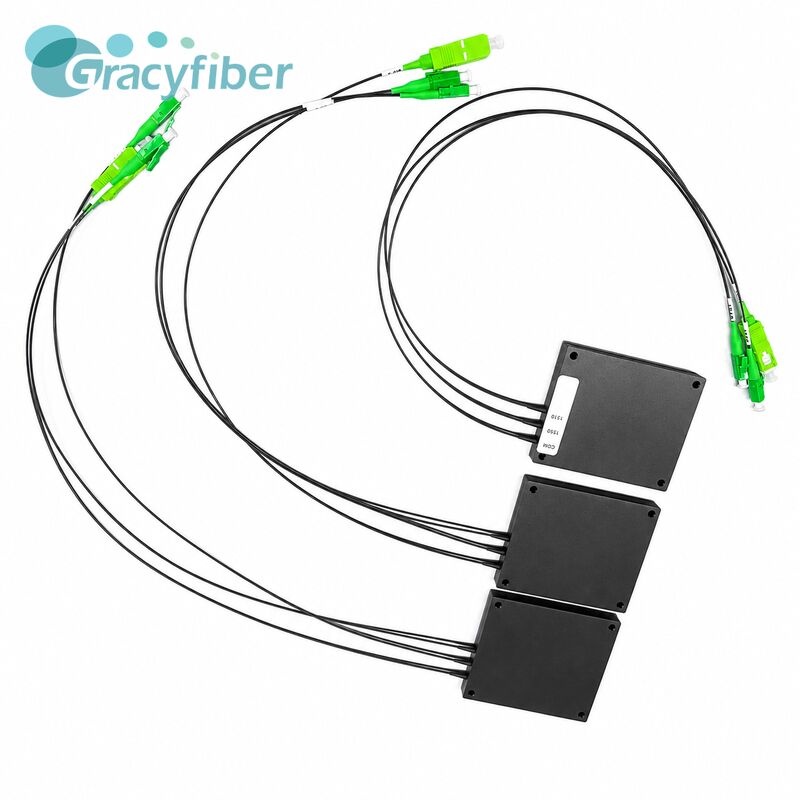

Perfectly suited for integration into advanced communication infrastructures, including broadband networks, PON networks, CATV systems, and DWDM systems.
1 Specifications
|
Specification |
||
|
Operating Wavelength (nm) |
CH1- 1308.94~1309.34nm CH2- 1310.08~1310.48nm |
|
|
Channel spacing |
200G |
|
|
Number of Channel |
2 |
|
|
Pass band (nm) |
λC±0.2 |
|
|
Ripple (dB) |
＜0.5 |
|
|
Port |
Channel |
Mux |
|
CH1- 1308.94~1309.34nm |
≤1.0 |
|
|
CH2- 1310.08~1310.48nm |
≤1.3 |
|
|
Isolation (dB) |
Adjacent |
> 25 |
|
Non-adjacent |
> 35 |
|
|
Extinction Ratio (dB) |
≥18 |
|
|
RL (dB) |
≥45 |
|
|
Directivity (dB) |
≥50 |
|
|
Power (mw) |
<300 |
|
|
Fiber Type |
PM 1310nm Fiber (9/125/250) |
|
|
Fiber Length(m) |
1.0+/-0.1(0.9mm Hytyrel Blue Tube) |
|
|
Connector |
FC/APC |
|
|
Operating Temperature (℃) |
-5~+70 |
|
|
Storage Temperature (℃) |
-40~+85 |
|
|
Housing(mm) |
100*80*10 |
|
2 Mechanical Dimensions
3 Ordering information
|
PM DWDM |
- |
XX |
XXX |
X X |
XXXX |
XX |
- |
X |
X |
|
|
|
Channel No. |
MUX/DEMUX Type |
ITU |
Initial CW |
Package Type |
|
Input Connector |
Output Connector |
|
PM DWDM |
|
02=02CH |
M =Mux |
O2=200G |
309=1309.14 |
PS=100x80x10 |
|
0=No |
0=No |
|
|
|
|
|
|
311=1311.43 |
XX= Customized |
|
1=FC/UPC |
1=FC/UPC |
|
|
|
|
|
|
|
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
|
|
|
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
|
|
|
|
|
|
4=SC/APC |
4=SC/APC |
|
|
|
|
|
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
Part Number |
Product Description |
|
PMDWDM-02MO308PS-22(S) |
200G Oband PM DWDM Mux&Demux Module, 1309.14~1310.23 ,2 Port , ABS Box(100*80*10mm), 0.9mm Blue Tube FC/APC connectors. Slow Axis Works. |
