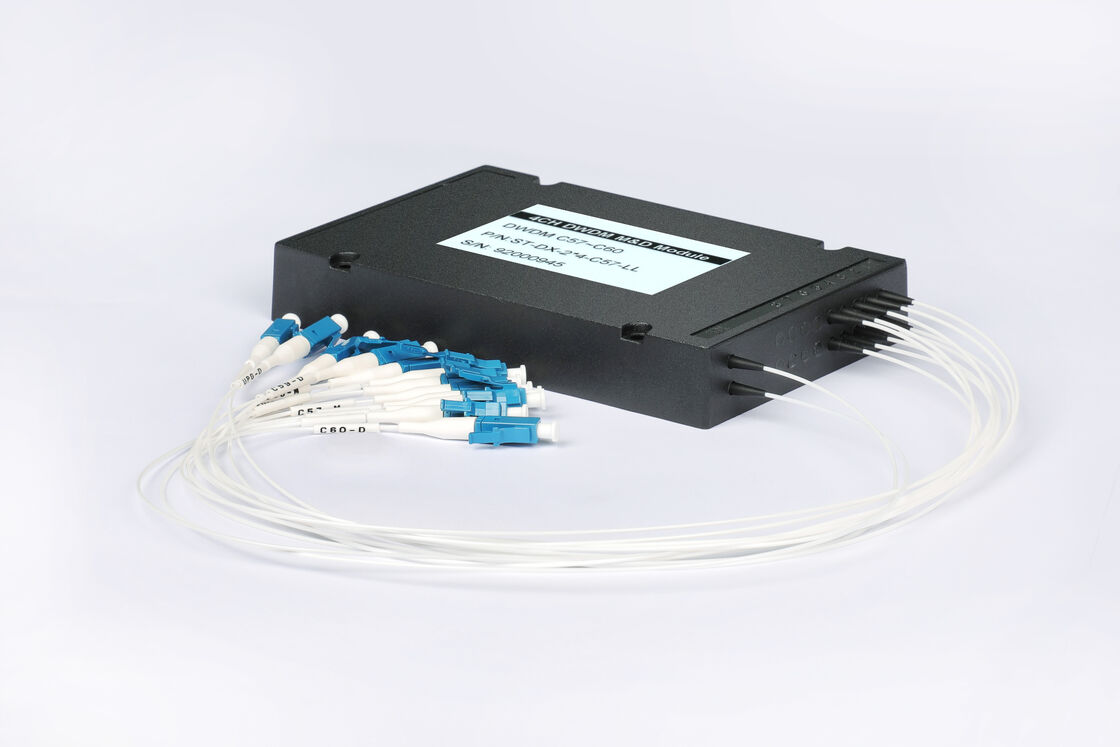

8CH 200G Oband PM DWDM Module

Product Description

8CH 200G Oband PM DWDM Module

1 Features

ü Low Insertion loss and High Extinction Ratio

ü High channel Isolation

ü Good channel-to-channel uniformity

ü High Reliability and Stability

ü Telcordia Compliant

ü RoHS Compliant

2 Applications

ü Broadband networks

ü PON Networks

ü CATV system

ü DWDM system

3 Specifications

Parameters		8CH Mux
Operating Wavelength (nm)		1260~1380
Channel spacing		200G(Oband)
953115409产品波长		1295.56/1297.8/1300.05/1302.31/1304.58/1306.85/1309.14/1311.43
953115410产品波长		1296.68/1298.93/1301.18/1303.45/1305.72/1308.00/1310.28/1312.58
Pass band (nm)		λC±0.2
Ripple (dB)		＜0.5
Insertion Loss (dB)		< 2.5
Extinction Ratio (dB)		> 18
Isolation (dB)	Adjacent	> 28
	Non-adjacent	> 40
RL (dB)		>45
Directivity (dB)		>50
Power (mw)		<300
Fiber Type		PM 13-U25D Fiber
Fiber Length(m)		1.0+/-0.1(0.9mm Hytyrel Blue Tube)
Connector		FC/APC
Operating Temperature (℃)		-5~+65
Storage Temperature (℃)		-40~+85
Housing(mm)		1008010

4 Structure Diagram

8CH 200G Oband PM DWDM Module 0

5 Mechanical Dimensions

8CH 200G Oband PM DWDM Module 1

6 Ordering information

PM DWDM	-	XX	XXX	X X	XXXX	XX	-	X	X
		Channel No.	MUX/DEMUX Type	ITU	Initial CW	Package Type		Input Connector	Output Connector
PM DWDM		04=04CH	M =Mux	O2=200G	306=1306.85	PS=100x80x10		0=No	0=No
					311=1311.43	XX= Customized		1=FC/UPC	1=FC/UPC
								2=FC/APC	2=FC/APC
								3=SC/UPC	3=SC/UPC
								4=SC/APC	4=SC/APC
								5=LC/UPC	5=LC/UPC
								6=LC/APC	6=LC/APC

Part Number

Product Description

PMDWDM-04MO306PS-22(S)

200G Oband PM DWDM Mux&Demux Module,

1305.85~1312.58 ,4 Port ,

ABS Box(100*80*18mm), 0.9mm Blue Tube FC/APC connectors.
