| Brand Name: | Gracyfiber |
| MOQ: | 1pieces |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100,000 pieces per month |

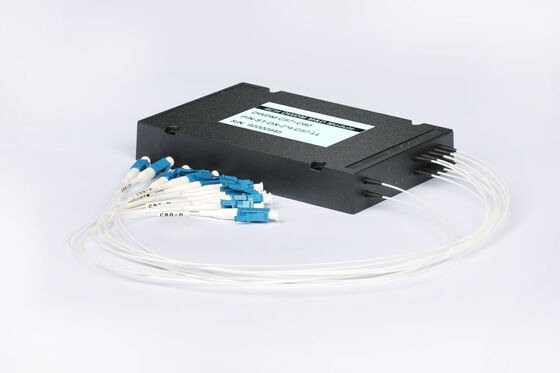

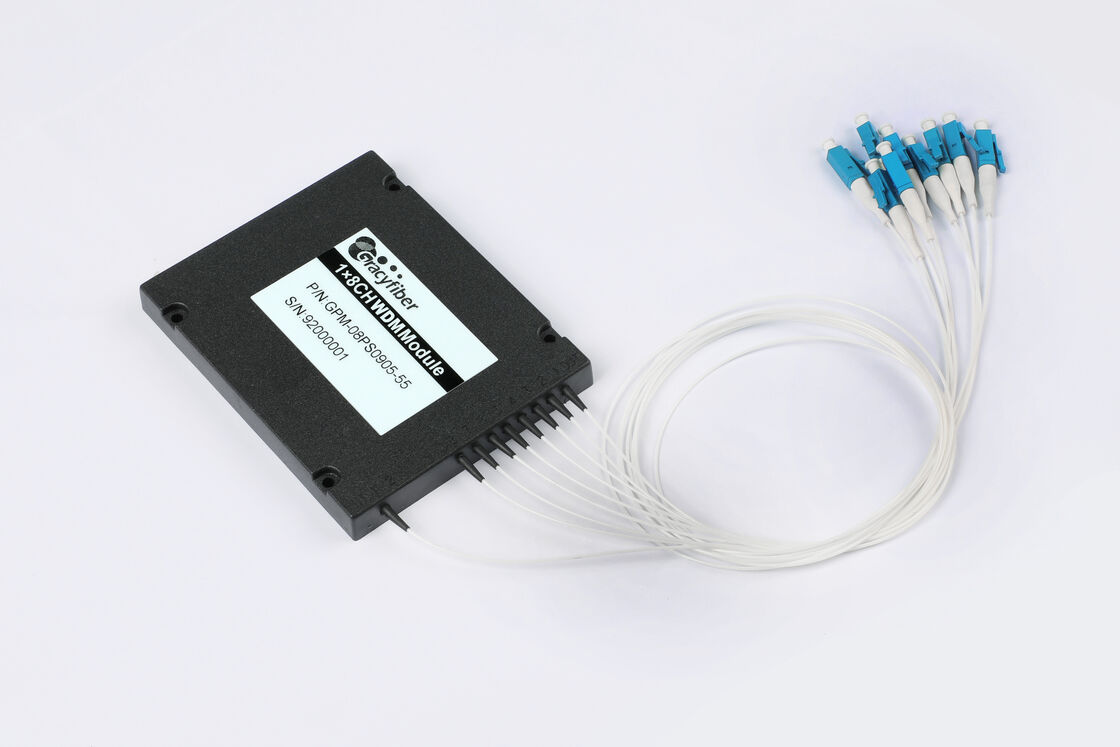

4CH 200G Oband PM DWDM Module
1 Features
ü Low Insertion loss and High Extinction Ratio
ü High channel Isolation
ü Good channel-to-channel uniformity
ü High Reliability and Stability
ü Telcordia Compliant
ü RoHS Compliant
2 Applications
ü Broadband networks
ü PON Networks
ü CATV system
ü DWDM system
3 Specifications
|
Parameters |
4CH Mux |
|
|
Operating Wavelength (nm) |
1260~1380 |
|
|
Channel spacing |
200G(Oband) |
|
|
Wavelength (nm) |
1306.85(1306.65~1307.05 ) 1309.14(1308.94~1309.34 ) 1311.43(1311.23~1311.63) 1312.58(1312.38~1312.78) |
|
|
Pass band (nm) |
λC±0.2 |
|
|
Ripple (dB) |
＜0.5 |
|
|
Insertion Loss (dB) |
< 1.8 |
|
|
Extinction Ratio (dB) |
> 18 |
|
|
Isolation (dB) |
Adjacent |
> 28 |
|
Non-adjacent |
> 40 |
|
|
RL (dB) |
>45 |
|
|
Directivity (dB) |
>50 |
|
|
Power (mw) |
<300 |
|
|
Fiber Type |
PM 13-U25D Fiber |
|
|
Fiber Length(m) |
1.0+/-0.1(0.9mm Hytyrel Blue Tube) |
|
|
Connector |
FC/APC |
|
|
Operating Temperature (℃) |
-5~+65 |
|
|
Storage Temperature (℃) |
-40~+85 |
|
|
Housing(mm) |
100*80*10 |
|
4 Structure Diagram
5 Mechanical Dimensions
6 Ordering information
|
PM DWDM |
- |
XX |
XXX |
X X |
XXXX |
XX |
- |
X |
X |
|
|
|
Channel No. |
MUX/DEMUX Type |
ITU |
Initial CW |
Package Type |
|
Input Connector |
Output Connector |
|
PM DWDM |
|
04=04CH |
M =Mux |
O2=200G |
306=1306.85 |
PS=100x80x10 |
|
0=No |
0=No |
|
|
|
|
|
|
311=1311.43 |
XX= Customized |
|
1=FC/UPC |
1=FC/UPC |
|
|
|
|
|
|
|
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
|
|
|
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
|
|
|
|
|
|
4=SC/APC |
4=SC/APC |
|
|
|
|
|
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
Part Number |
Product Description |
|
PMDWDM-04MO306PS-22(S) |
200G Oband PM DWDM Mux&Demux Module, 1305.85~1312.58 ,4 Port , ABS Box(100*80*18mm), 0.9mm Blue Tube FC/APC connectors. Slow Axis Works. |
FAQ
1: What tests are performed before product shipment?
A: As an engineering-driven passive optical device manufacturer, Gracyfiber focuses on PM components, WDM solutions, optical design, precision coupling, and mass production packaging capabilities. Before shipment, we can confirm key indicators such as insertion loss, extinction ratio, channel isolation, return loss, center wavelength, and appearance according to customer requirements to ensure the product meets project integration requirements.
2: What is the warranty policy? How are quality issues handled?
A: "PM DWDM module with warranty" and it is ISO9001 and RoHS certified. If the product has non-human-caused quality issues within the warranty period, we can provide technical analysis, repair, or replacement support; the specific warranty period, RMA process, and scope of responsibility are subject to confirmation in the quotation or purchase contract.
