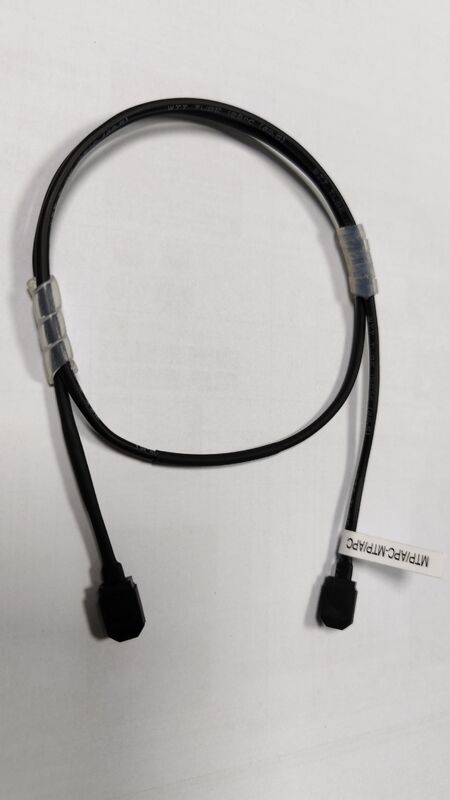

MT/MPO

MT/MPO

Detail Information
Product Description
Detail Information
Operating Wavelength:
1310nm
Fiber Type:
Corning PM13-U25D
Port Configuration:
8-core Polarization-maintaining Fiber
MT-MT IL:
≤ 0.35dB
MT-MT ER:
≥ 25dB
MPO-MPO IL:
≤ 0.5dB
Highlight:

MT/MPO fiber optic connector

,

MT/MPO cable components

,

MT/MPO fiber optic adapter

Product Description

1. Features

  • Built with premium Corning PM13-U25D polarization-maintaining fiber.
  • Features Senko low-loss MT and MPO ferrules for optimal physical contact.
  • Guarantees high polarization extinction ratio (ER ≥ 25dB) at 1310nm.
  • Strict fast-axis alignment to the K-key with a precise ±3° angle tolerance.
  • Available in unpinned MT/APC (Female) or pinned MPO/APC (Male) configurations.
  • Adheres to strict Grade A end-face visual standards and neutral interference requirements.

2. Applications

  • Silicon Photonics (SiPh) transceiver packaging and coupling.
  • Coherent optical module manufacturing (400G/800G).
  • High-density optical routing requiring strict polarization maintenance at 1310nm.
  • Multi-channel PM fiber testing and measurement systems.

3. Specifications

Operating Wavelength: 1310nm.
Fiber Type: Corning PM13-U25D.
Port Configuration: 8-core polarization-maintaining fiber.
Optical Performance (MT-MT): IL ≤ 0.35dB, ER ≥ 25dB.
Optical Performance (MPO-MPO): IL ≤ 0.5dB, ER ≥ 25dB.
Connector Options: MT/APC to MT/APC (Female/No pins) or MPO/APC to MPO/APC (Male/With pins).

4. Google SEO Keywords

  • 8-Core PM MPO Patch Cord
  • PM1300 MT/APC Fiber Cable
  • Polarization Maintaining MPO Connector 1310nm
  • Corning PM13-U25D MPO Assembly
  • Low Loss PM Fiber Array
  • High ER PM MT Patchcord Manufacturer
