| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |

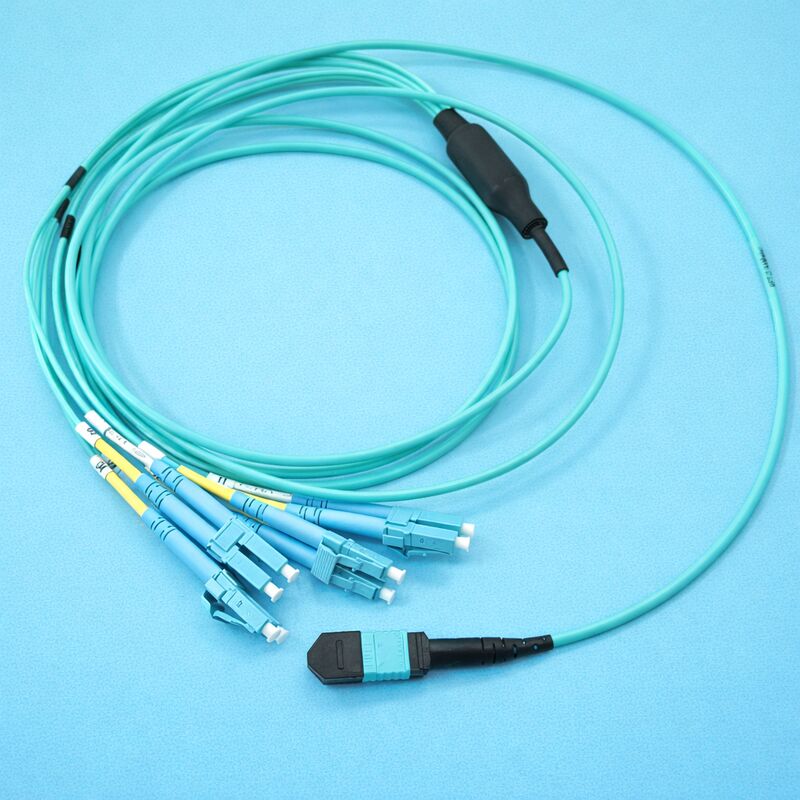

MTP®/MPO Harness: High-Density Multi-Fiber Breakout Cable (12F, 24F, 48F, 72F, 96F, 144F) For Data Centers And 40G/100G/200G/400G/800G Networks
This MTP®/MPO Harness is a pre-terminated, multi-fiber breakout cable assembly designed for high-density data center cabling and parallel optical transmission systems. It is suitable for network upgrades and deployments ranging from 40G to 800G. The page title clearly identifies the product as an MTP®/MPO Harness, and its key selling points include support for both single-mode and OM3/OM4/OM5 multi-mode configurations, customizable fiber counts ranging from 12F to 144F, and an optional "pulling eye" feature designed to protect the cables and connectors during the installation process.
| Connector | Mode | Endface | Standard | Elite | ||
|---|---|---|---|---|---|---|
| IL (max) dB | RL (min) dB | IL (max) dB | RL (min) dB | |||
| MPO/MTP® | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.75 | ≥60 | ||||
| MM | 12F/PC | ≤0.50 | ≥30 | ≤0.35 | ≥30 | |
| 24F/PC | ≤0.50 | ≥30 | ≤0.35 | ≥30 | ||
| 48F/PC | ≤0.50 | ≥30 | ||||
| LC / SC / FC / ST | SM | APC | ≤0.30 | ≥60 | ≤0.15 | ≥60 |
| UPC | ≤0.20 | ≥50 | ≤0.15 | ≥50 | ||
| MM | PC | ≤0.20 | ≥30 | ≤0.15 | ≥30 | |
| Item | Criteria | Conformance | ||
|---|---|---|---|---|
| ΔIL After 50 Matings | MPO/MTP® | ≤0.3dB | GR-1435 | |
| ΔIL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 | |
| Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) | |||
| Min Bend Radius (Static) | 15*OD (Cable Diameter) | |||
| Item | Criteria | Conformance | |
|---|---|---|---|
| Operation Temperature | -20~70°C | IEC 61753-1 | |
| Storage Temperature | -40~85°C | ||
