| Brand Name: | Gracyfiber |
| MOQ: | 1pieces |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100,000 pieces per month |

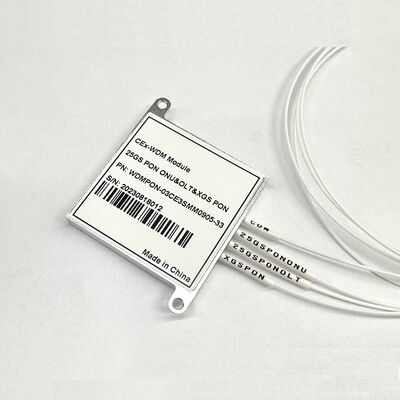

WDM-PON Module: Multi-Service Wavelength Division Multiplexing Module (2CH, 3CH, 5CH, 6CH, 7CH) For GPON, XGS-PON, NG-PON2, 25GS-PON, And RF Video
This WDM-PON Module is a multi-service Wavelength Division Multiplexing (WDM) module designed for next-generation access networks.
| Parameter | Unit | Value | |||||
|---|---|---|---|---|---|---|---|
| Operating Wavelength | GPON | nm | 1290~1330&1480~1500 | ||||
| XGS-PON | nm | 1260-1280 & 1575-1581 | |||||
| NG-PON2 | nm | 1524-1544 & 1595-1603 | |||||
| 25GS-PON OLT | nm | 1356~1360) | |||||
| 25GS-PON ONU | nm | 1284~1288) | |||||
| RF Video | nm | 1550-1560 | |||||
| NG-PON2 PtP | nm | 1610-1625 | |||||
| Channel | - | 2CH | 3CH | 5CH | 6CH | 7CH | |
| Port Insertion Loss | Max | dB | 1.0 | 1.3 | 1.8 | 2.0 | 2.3 |
| Isolation | Adjacent | dB | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 |
| Non-adjacent | dB | ≥35 | ≥35 | ≥35 | ≥35 | ≥35 | |
| Ripple | Max | dB | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| PDL | Max | dB | 0.5 | ||||
| Return Loss | Min | dB | 40 | ||||
| Directivity | Min | dB | 50 | ||||
| Power Handing | Max | mW | 300 | ||||
| Fiber Type | - | G67A1/ A2/ B3 or SMF-28 | |||||
| Fiber Coating | um | 250 µm / 900 µm loose tube | |||||
| Fiber Length | mm | 1000 | |||||
| Connector | - | LC/UPC or Customized | |||||
| Dimensions (HxWxD) | mm | 80x58x8, 120x80x18, 155x129x29, 482x250x44 | |||||
| Operating Temperature | °C | -5~65 | |||||
| Storage Temperature | °C | -40~85 | |||||
1: What packaging and fiber optic configurations are available?

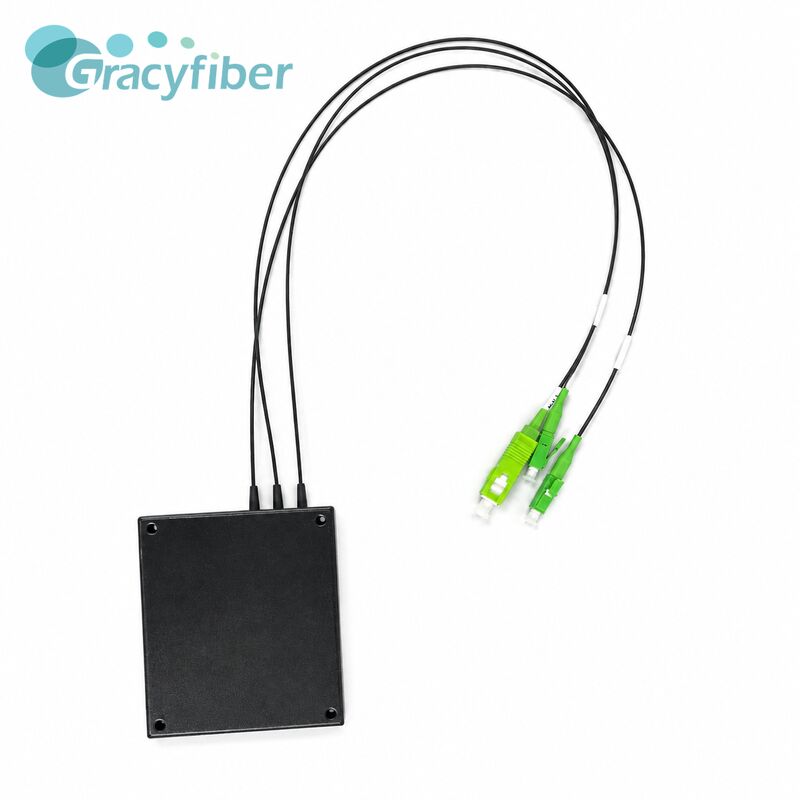

A: This product supports modular and rack-mount packaging, with dimensions including 80×58×8 mm, 120×80×18 mm, 155×129×29 mm, and 482×250×44 mm. Fiber optic options include 250 μm bare fiber or 900 μm loose tube, with a standard length of 1000 mm, facilitating internal integration, box-type modules, and 19-inch rack deployment.
2: Can I purchase samples for testing first? How are lead times and discounts confirmed for bulk orders?
A: Yes. The MOQ for this product is 1 piece, suitable for engineers to conduct sample verification, link budget testing, PON service coexistence testing, and system compatibility assessments. The page shows a monthly supply capacity of 100,000 pieces; lead times and discounts for bulk orders will be assessed based on channel configuration, wavelength combination, packaging form, connectors, testing requirements, and purchase quantity. Tiered pricing and partial deliveries are supported.
