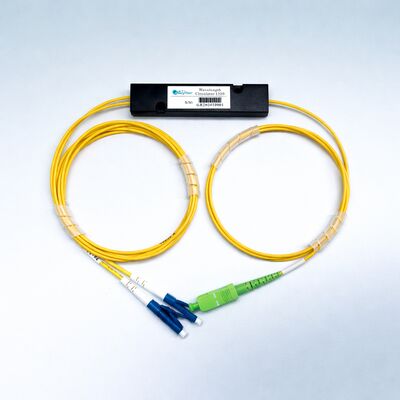

3 Port PM Circulator 1064nm 1310nm 1480nm 1650nm For Optical Instruments

Brand Name:	Gracyfiber
MOQ:	1pieces
Payment Terms:	L/C, T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong , China

Certification:

ISO9001 , ROHS

Port Type:

3 Port

Operating Wavelength:

1064/1310/1480/1550/1650nm

Insertion Loss:

0.7dB (typ), 0.9dB (max)

Peak Isolation:

50dB

Power Handling:

300mW

Fiber Length:

100cm

Name:

PM Circulator

Supply Ability:

100,000 pieces per month

Highlight:

3 Port PM Circulator

PM Circulator 1064nm

PM Circulator 1310nm

Product Description

PM Circulator, A 3-Port Polarization-Maintaining Fiber Optic Circulator (1064/1310/1480/1550/1650nm) For Fiber Lasers, Optical Instruments, And PM Fiber Systems.

1. Product Description

This PM Circulator is a 3-port in-line circulator suitable for polarization-maintaining fiber optic systems.

2. Key Features

Parameter		Unit		Value
Port Type		-		3 Port
Operating Wavelength		nm		1064		1310	1480	1550	1650
Operating Bandwidth		nm		±5		±30	±30	±30	±20
Stage		-		Singe Stage	Dual Stage	Dual Stage
Typ. Insertion Loss		Max	nm	1.8	3.0	0.7
Insertion Loss		Max	nm	2.1	3.5	0.9
Peak Isolation		Min	nm	30	40	50	50	50	45
Typ.Isolation		Min	nm	25	35	40	40	40	35
Extinction Ratio		Min	dB	20
Operating Axis		-		Single Axis or Dual Axis
Return Loss		Min	dB	50
Crosstalk		Min	dB	50
Power Handing		Max	mW	300
Fiber Type		-		PM980		PM1300	PM 1550
Fiber Coating		mm		0.25 / 0.9/2.0/3.0mm Red/Blue loose tube
Fiber Length		cm		100
Connector		-		FC/APC,FC/UPC,or Customized
Dimensions (HxWxD)	250μm Bare Fiber	mm		φ5.5×35
	900μm Loose Tube	mm		φ5.5×38
	2mm/3mm Tube	mm		90×20×10,100×80×10
Operating Temperature		°C		-5~65
Storage Temperature		°C		-40~85

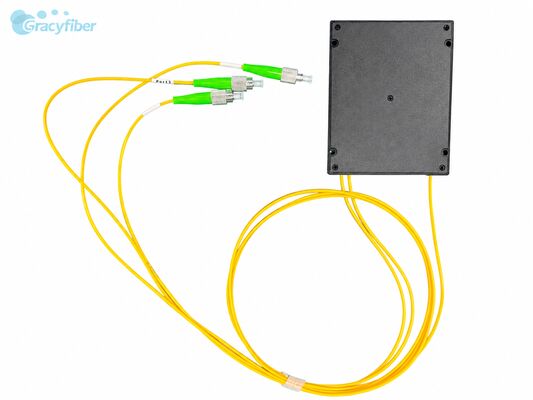

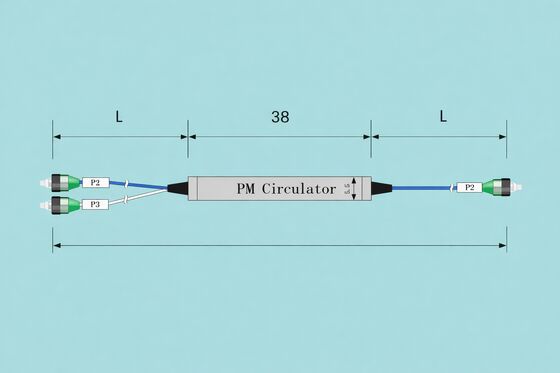

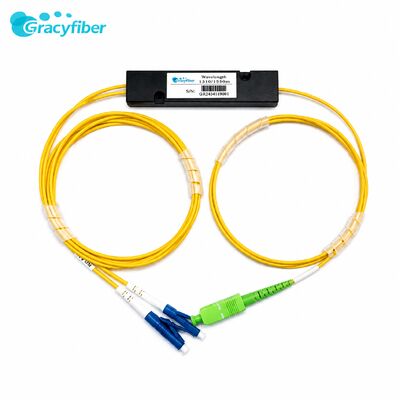

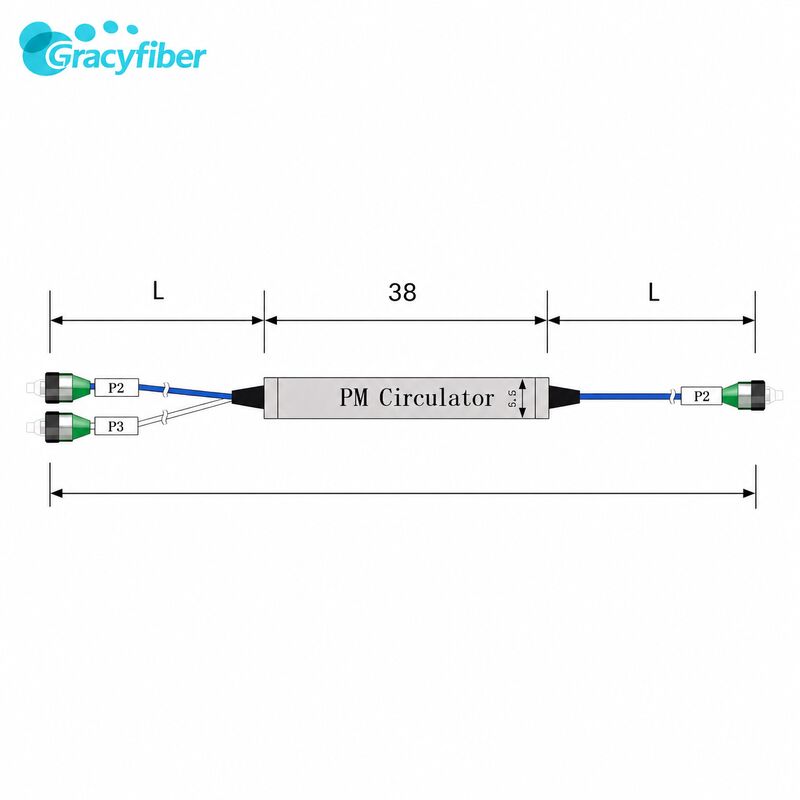

3-Port Polarization-Maintaining In-line Circulator Structure

Supports 1064/1310/1480/1550/1650nm wavelengths
Selectable Single Stage or Dual Stage
Low typical insertion loss, high isolation
Return loss ≥50dB, crosstalk suppression ≥50dB
Supports Single Axis or Dual Axis
Uses PM980, PM1300, and PM1550 fiber
Supports various packages, pigtails, and connector customization

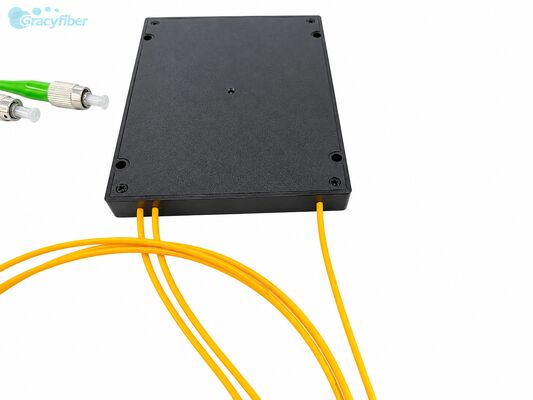

3 Port PM Circulator 1064nm 1310nm 1480nm 1650nm For Optical Instruments 0

3. Applications

Polarization-Maintaining Fiber Systems
Fiber Lasers
Fiber Amplifiers
Optical Communication Equipment
Optical Test Instruments
Fiber Optic Sensing
Precision Optical Platforms
OEM Photonic Modules

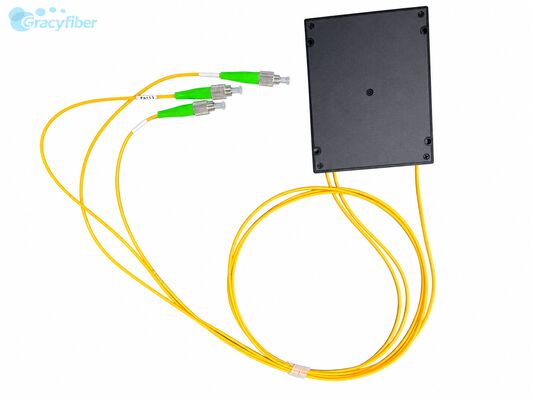

3 Port PM Circulator 1064nm 1310nm 1480nm 1650nm For Optical Instruments 1

3 Port PM Circulator 1064nm 1310nm 1480nm 1650nm For Optical Instruments 3

4.Part Number Configuration

Circulator	-	1	2	3	4	5	6	7	-	8	9
	-	Working Wavelength	Stage Type	Package Dimension	Fiber Type	Jacket Type	Jacket Color	Fiber Length	-	Connector Type	Working Axis
	-	XX	XX	XX	XXX	XX	XX	XX	-	X	X
PM CIR		10=1060nm	S=Single Stage	53=Ø5.5 × 35	P98=PM980	02=250um Bare fiber	BR=Blue/Red	01=0.1m		0=No	B=Dual Axis
		13=1310nm	D=Daul Stage	54=Ø5.5 × 38	P13=PM1300	06=0.6mm Loose Tube	BW=Blue/White	05=0.5m		1=FC/UPC	S=Slow Axis
		15=1550nm	X= Customized	90=90 × 20× 10	P15=PM1550	09=0.9mm Loose Tube	BB=Blue/Blue	10=1.0m		2=FC/APC	F=Fast Axis
		XX= Customized		PS=100 ×80× 10	XXX= Customized	20=2.0mm PVC Tube	X= Customized	30=3.0m		3=SC/UPC	X= Customized
				XX= Customized		30=2.0mm PVC Tube		XX= Customized		4=SC/APC
										5=LC/UPC
										6=LC/APC
										X= Customized

Example Part Number
PMCIR-13D54P1309BW10-2S
PM Inline Circulator ,Center wavelength 1310 nm,Daul Stage,Steel housing Ø5.5 × 38, Fiber is PM 1300, Fiber length 1 m with 0.9mm Losse Tube(Color=Port1:Blue,Port2:Blue,Port3:White) ,FC/APC connector, slow axis aligned to key.
