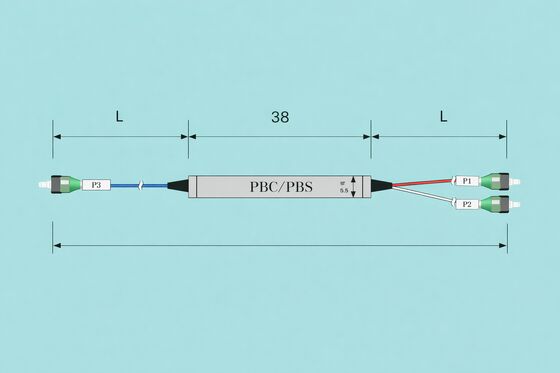

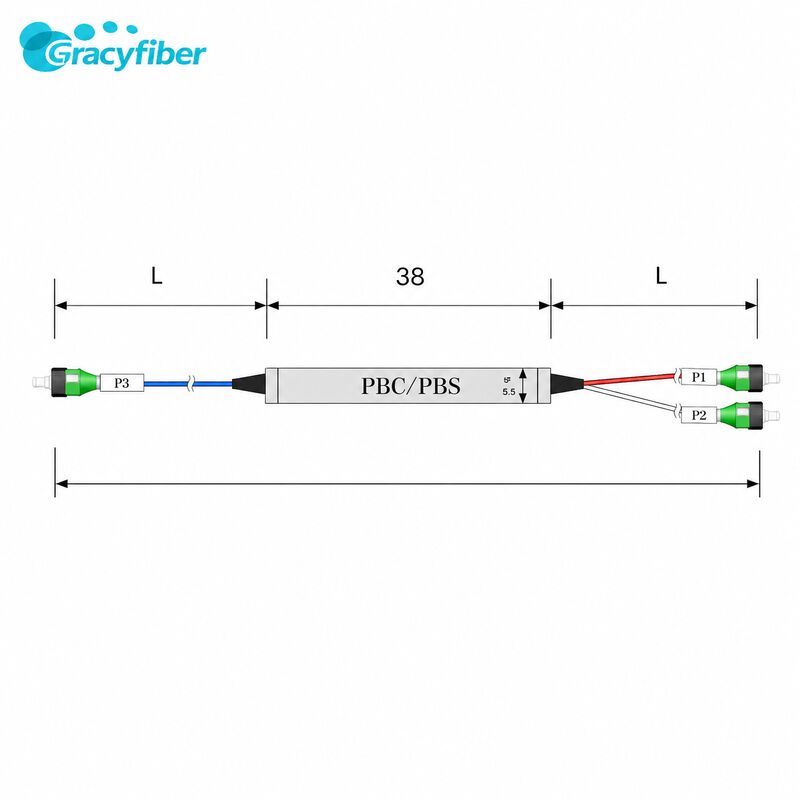

This PBS/PBC is a 1x2 in-line polarization beam splitter/combiner suitable for polarization-maintaining fiber systems, supporting multiple operating bands including 980nm, 1030/1064nm, 1310/1480/1550nm, and 1260~1620nm.
| Parameter | Unit | Value | |||||||||
| Port Type | - | 1x2 | |||||||||
| Operating Wavelength | nm | 980 | 1030,1064 | 1310, 1480, 1550 | 1260~1620 | ||||||
| Operating Bandwidth | nm | ±30 | ±20 | ±40 | / | ||||||
| Grade | - | P | A | P | A | P | A | P | A | ||
| Typ. Insertion Loss | Max | nm | 0.6 | 0.7 | 0.6 | 0.7 | 0.4 | 0.5 | 0.5 | 0.6 | |
| Insertion Loss | Max | nm | 0.8 | 0.9 | 0.8 | 0.9 | 0.6 | 0.7 | 0.7 | 0.8 | |
| Extinction Ratio (Onlyf or PBS) | Min | nm | 22 | 20 | 22 | 20 | 22 | 20 | 20 | 18 | |
| Return Loss | Min | dB | 50 | ||||||||
| Directivity | Min | dB | 50 | ||||||||
| Power Handing | Max | mW | 300 | ||||||||
| Fiber Type | Port1&2 | - | PM980 | PM1300 / PM 1550 | |||||||
| Port3 | - | HI 1060 | SMF-28e | ||||||||
| Fiber Coating | mm | 0.25 / 0.9/2.0/3.0mm Red/Black loose tube | |||||||||
| Fiber Length | cm | 100 | |||||||||
| Connector | - | FC/APC,FC/UPC,or Customized | |||||||||
| Dimensions (HxWxD) |
250μm Bare Fiber | mm | φ5.5×35 | ||||||||
| 900μm Loose Tube | mm | φ5.5×38 | |||||||||
| 2mm/3mm Tube | mm | 90×20×10,100×80×10 | |||||||||
| Operating Temperature | °C | -5~65 | |||||||||
| Storage Temperature | °C | -40~85 | |||||||||
| PBS/PBC | - | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | - | 9 | 10 |
| - | Working Wavelength |
Package Dimension | Port1&2 Fiber |
Port3 Fiber |
Jacket Type | Port1&2 Color | Output Color | Fiber Length |
- | Connector Type | Working Axis |
|
| - | XX | XX | XXX | XXX | XX | XX | X | XX | - | X | X | |
| PBC/S | 98=980nm | 53=Ø5.5 × 35 | P98=PM980 | 98=Hi1060 | 02=250um Bare fiber | RW=Red/White @PM Fiber |
W=White @SM Fiber |
01=0.1m | 0=No | B=Dual Axis | ||
| 10=1060nm | 54=Ø5.5 × 38 | P13=PM1300 | SM=SMF-28e | 06=0.6mm Loose Tube | WW=White @1060/SM Fiber |
R=Hi 1060 Fiber | 05=0.5m | 1=FC/UPC | S=Slow Axis | |||
| 13=1310nm | 90=90 × 20× 10 | P15=PM1550 | P1=PM Fiber, Slow Axis Align to Port 1 |
09=0.9mm Loose Tube | XX= Customized | B=Blue @PM Fiber |
10=1.0m | 2=FC/APC | F=Fast Axis | |||
| 15=1550nm | PS=100 ×80× 10 | XXX= Customized | P2=PM Fiber, Slow Axis Align 45° to Port |
20=2.0mm PVC Tube | XX= Customized | 30=3.0m | 3=SC/UPC | X= Customized | ||||
| XX= Customized | XX= Customized | XXX= Customized | 30=2.0mm PVC Tube | XX= Customized | 4=SC/APC | |||||||
| XX= Customized | 5=LC/UPC | |||||||||||
| 6=LC/APC | ||||||||||||
| X= Customized | ||||||||||||
PBS-1354P13P109RWB10-2S
PM Polarization Beam Splitter,Center wavelength 1310 nm,Steel housing Ø5.5 × 38, Fiber is PM 1300,Port 3 fiber type PM1310 with slow axis aligned to Port 1,Fiber length 1 m with 0.9mm Losse Tube (Color= Port1:Red,Port2:White,Port3:Blue) ,FC/APC connector, slow axis aligned to key.
FAQ
Q1: What operating wavelengths does this polarization beam combiner/splitter support?
A: This product supports common wavelengths such as 980nm, 1064nm, 1310nm, 1480nm, and 1550nm, and also covers a wide band of 1260–1620nm, suitable for various laser, amplification, and optical communication system needs.
Q2: What are the main performance advantages of this product?
A: This product features low insertion loss, high extinction ratio, high directivity, high reliability, and high stability. Return loss is ≥50dB, directivity is ≥50dB, and maximum power handling is ≤500mW, making it suitable for systems with high requirements for polarization control and signal stability.
Q3: Does this Polarization Beam Combiner/Splitter support customization?
A: Customization is supported. Customers can select parameters such as operating wavelength, P/A rating, pigtail type, Port 3 fiber type, and input/output connector type according to system requirements. Connectors are available in FC/UPC, FC/APC, etc., with a standard package size of Φ5.5 × L34mm.
