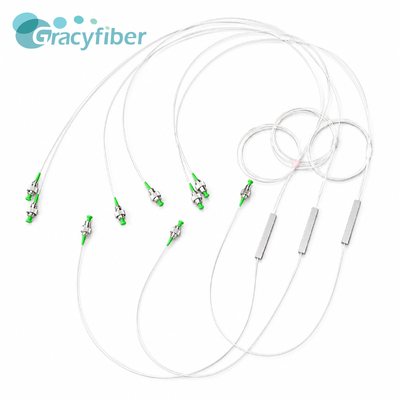

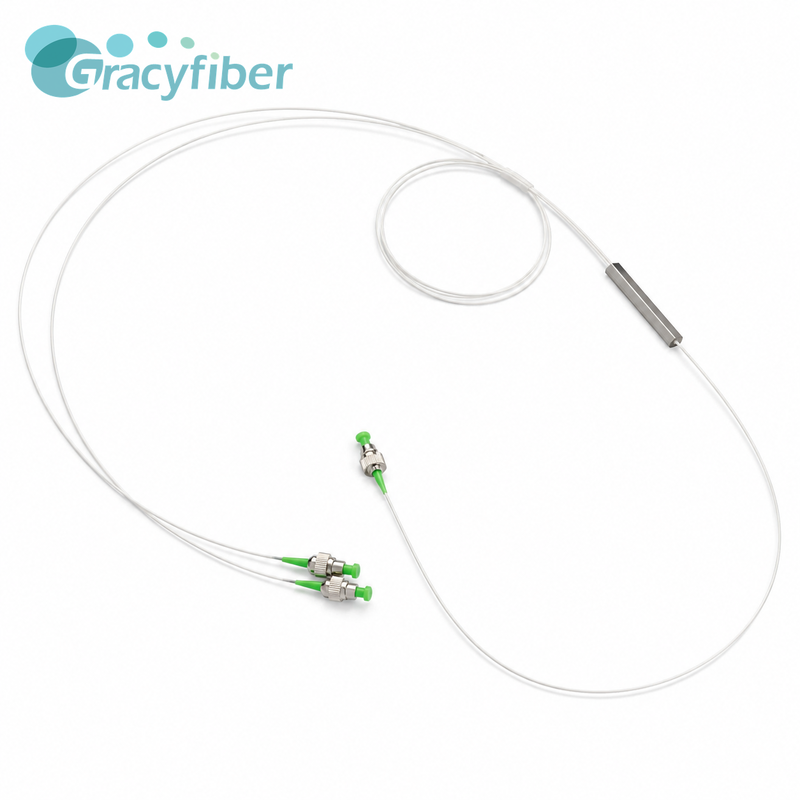

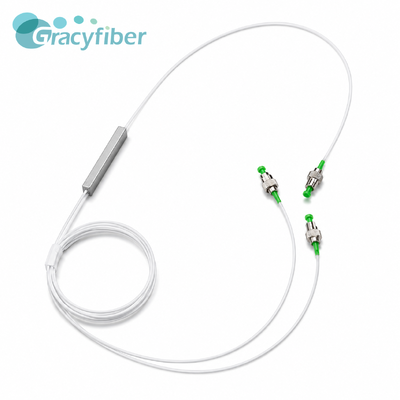

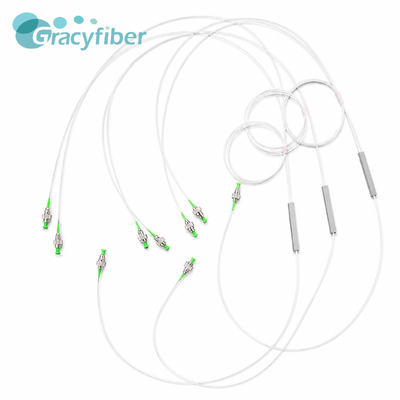

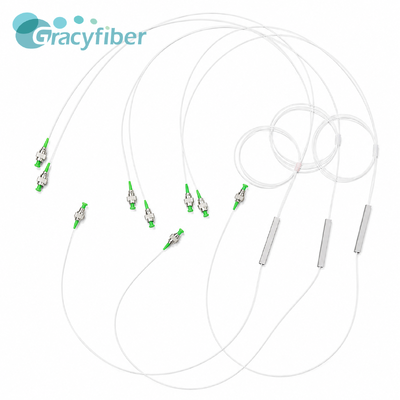

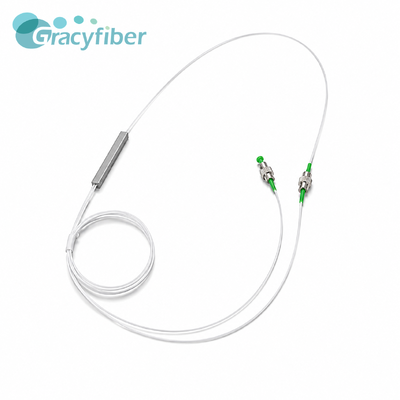

Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument

Detail Information

Product Description

Detail Information

Wavelength:

1310 Nm

Insertion Loss:

≤3.9 DB

Extinction Ratio:

≥20 DB

Power Handling:

≤300 MW

Highlight:

Polarization Maintaining PLC Splitter FC APC

PM1310 Panda Fiber Splitter low loss

High Extinction Ratio Optical Instrument Splitter

Product Description

Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument

1. Product Description

This 1*2 PM PLC splitter is a polarization-maintaining, equal-ratio PLC splitter designed for polarization-sensitive optical systems.

2. Key Features

Parameter	1*2
Wavelength (nm)	1310
Operating Bandwidth (nm)	±15
Insertion Loss (dB)	≤3.9
Tap Ratio (%)	50%
Polarization Extinction Ratio PER (dB)	≥20
Fiber Type	PM1310 Panda fiber for 1310nm
Pigtail	Input 0.5m, Output 1m, 900um Loose tube/FC/APC
Return Loss (dB)	≥50
Power Handling (mW)	≤300
Operating Temperature (°C)	-5～+70
Storage Temperature (°C)	-40～+80
Dimensions (mm LWH)	6074

1*2 Polarization-Maintaining (PM) PLC equal-split configuration
Operating wavelength: 1310 nm
50/50 equal optical power split
Insertion loss: ≤4.2 dB
Measured insertion loss: 3.99–4.10 dB
Extinction ratio: ≥20 dB
Measured extinction ratio: 21.15–21.92 dB
Return loss: ≥50 dB
Maximum optical power handling: ≤300 mW
Uses PM1310 Panda fiber
Input: 0.5 m; Output: 1.0 m
0.9 mm white Hytrel loose tube; FC/APC connectors
Slow axis aligned to K-key; fast axis blocked
Package dimensions: 60 * 7 * 4 mm

3. Applications

EDFA
Coherent communication
Power monitoring
Fiber sensors
Fiber optic instruments
PM optical power distribution
Polarization-maintaining test platforms
