| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |
Gracyfiber Optical PLC Splitters provide low-loss, high-uniformity optical power splitting for passive fiber optic networks.
Designed for FTTX, PON, CATV, and other fiber optic systems, these splitters offer reliable optical performance, wide wavelength operation from 1260 nm to 1650 nm, and proven environmental stability. The product family supports 1×N and 2×N configurations up to 64 ports and is available in a wide range of package types, including bare fiber, fan-out, mini module, ABS module, LGX module, tray type, and rack-mount module. Telcordia GR-1209 and GR-1221 compliance, along with 100% temperature cycle testing from -40°C to +85°C, helps ensure long-term field reliability.
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260～1650nm | |||||
| Insertion Loss(dB) | 3.8 | 7.1 | 10.2 | 13.5 | 16.6 | 20.1 |
| Uniformity(dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| PDL(dB) | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Return Loss | ≥50 dB (PC/UPC) | |||||
| Fiber Type | ITU-T G.657.A or Customized | |||||
| Fiber Length | Customized | |||||
| Operating Temperature | -40 ～ +85°C | |||||
| Storage Temperature | -40 ～ +85°C | |||||
| Parameter | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260～1650nm | |||||
| Insertion Loss(dB) | 4.1 | 7.4 | 10.6 | 13.9 | 17.1 | 20.4 |
| Uniformity(dB) | 0.8 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| PDL(dB) | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Return Loss | ≥50 dB (PC/UPC), ≥55 dB (APC / No Connector) | |||||
| Fiber Type | G.657.A or Customized | |||||
| Fiber Length | Customized | |||||
| Operating Temperature | -40 ～ +85°C | |||||
| Storage Temperature | -40 ～ +85°C | |||||
Low Insertion Loss – Helps preserve optical budget and improve network transmission efficiency.
Excellent IL Uniformity – Supports more balanced output across channels for stable passive network performance.
Low Polarization Dependent Loss – Improves signal consistency and helps maintain transmission quality.
Wide Operating Wavelength Range – Covers 1260–1650 nm for broad compatibility across optical access networks.
High Reliability – Tested for demanding environmental conditions and compliant with Telcordia GR-1209 and GR-1221.

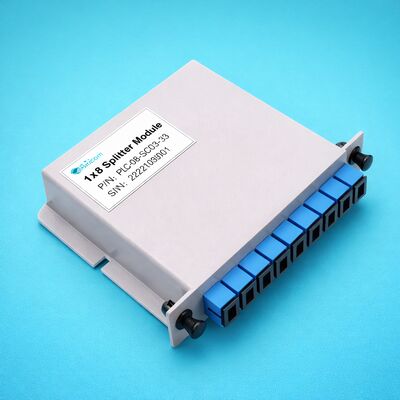

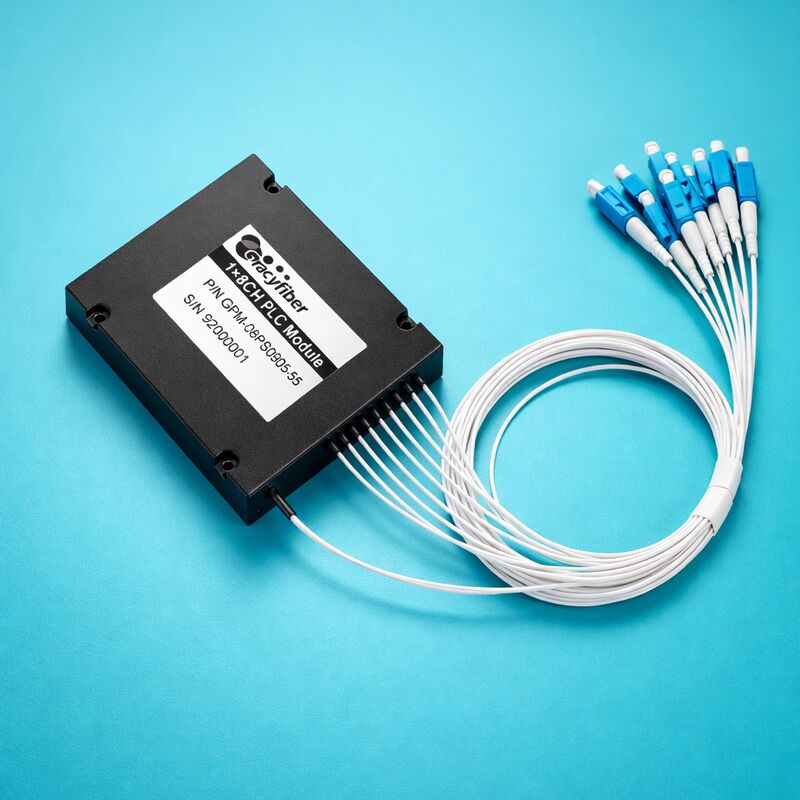

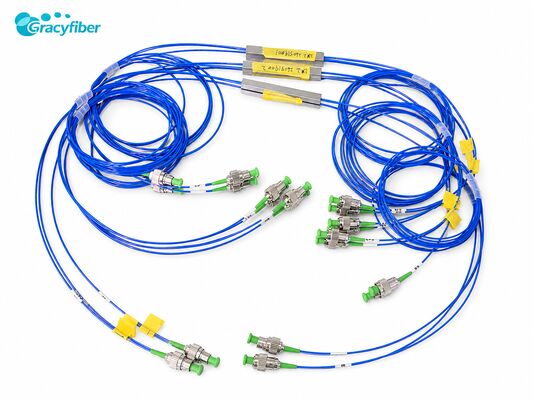

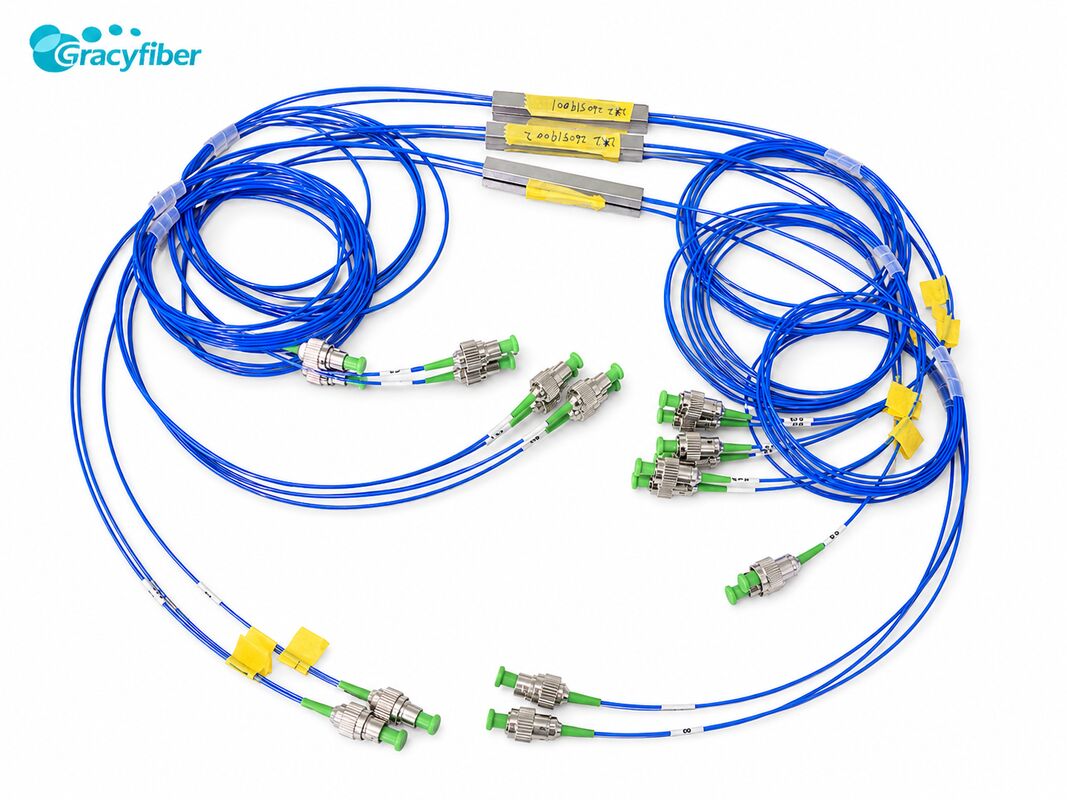

Flexible Packaging Options – Available in bare fiber, fan-out, mini module, ABS, LGX, tray, and rack-mount formats.
Connector and Fiber Customization – Supports multiple connector types and customized fiber configurations for project-specific needs.
