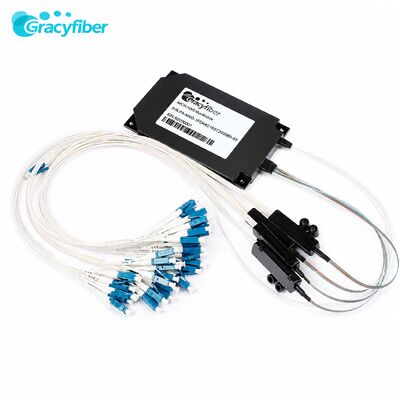

GRACYFIBER's polarization-maintaining, heat-free arrayed waveguide grating (PM AAWG) module is an ultra-high-density passive multiplexer/demultiplexer based on advanced planar optical waveguide (PLC) technology.
| Parameter | Unit | Value | |||||
|---|---|---|---|---|---|---|---|
| Operating Wavelength | nm | 1525~1565 | |||||
| Center Wavelength | nm | ITU Grid(C13 ~C64) or Customized | |||||
| Channel Port | nm | 32,40 | 32,40,44,48,60 | 80,88,96 | |||
| Channel Spacing | nm | 150GHz (1.2nm) | 100GHz (0.8nm) | 50GHz(0.4nm) | |||
| Channel Passband | Min | nm | ±0.11 | ±0.11 | ±0.05 | ||
| Technology | - | Flat-top | Flat-top | Gaussian | Flat-top | ||
| Pass band @1dB | Min | nm | 0.92 | 0.38 | 0.2 | 0.2 | |
| Pass band @3B | Min | nm | 1.2 | 0.58 | 0.4 | 0.26 | |
| Port Insertion Loss | Max | dB | 5.5 | 5.5 | 3.8 | 6.0 | |
| Isolation | Adjacent | Min | dB | ≥11 | ≥25 | ≥27 | ≥25 |
| Non-adjacent | Min | dB | ≥23 | ≥29 | ≥30 | ≥29 | |
| Uniformity | Max | dB | 1.5 | 1.5 | 1.5 | 1.5 | |
| Ripple | Max | dB | 0.5 | 0.5 | 1.5 | 0.5 | |
| Extinction Ratio | Min | dB | 18 | 18 | 18 | 16 | |
| Return Loss | Min | dB | 40 | ||||
| Directivity | Min | dB | 50 | ||||
| Power Handing | Max | mW | 300 | ||||
| Fiber Type | - | PM 1550 Fiber | |||||
| Fiber Coating | um | 250 µm / 900 µm loose tube | |||||

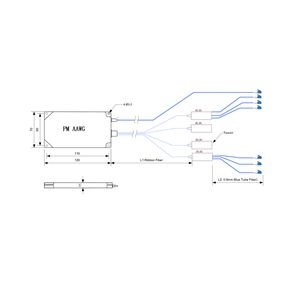

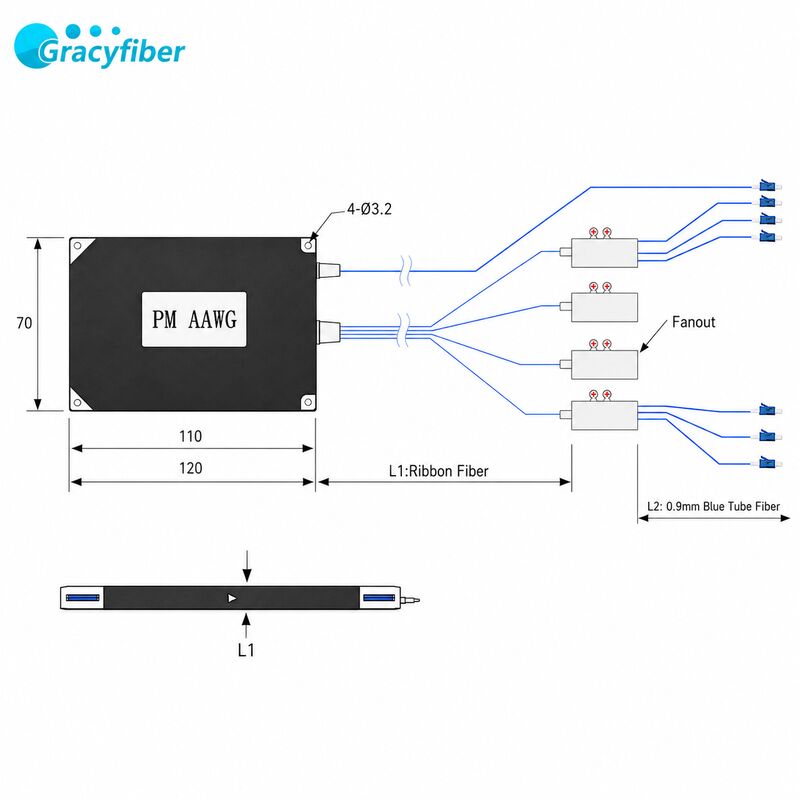

| Fiber to fan-out Length | L1 | mm | 500 | ||||
| Fan-out to Conector Length | L2 | mm | 500 | ||||
| Connector | - | LC/UPC or Customized | |||||
| Dimensions (HxWxD) | mm | 120x70x11,482x250x44, 482x230x44 | |||||
| Operating Temperature | °C | -5~65 | |||||
| Storage Temperature | °C | -40~85 | |||||
| Remark: * Above specifications are for devices without the connectors. * For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower. * The PM fiber and the connector key are aligned to the slow axis. fast axis is blocked. |
Coherent Optical Transport
Data Center Interconnect (DCI)
Dense Optical Communication Networks
Optical Amplifier Systems (EDFA)
Polarization-Sensitive Optical Platforms
Optical Test & Measurement
| AAWG | - | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | - | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Port | Channel Spacing | Pass Band Type | Initial Pass Channel |
Mux/ Demux |
Package Dimension | Jacket Type | Fiber Length |
- | Connector Type | Working Axis |
|
| - | XX | X | X | XXX | XX | XX | XX | XX | - | X | X | |
| PM AAWG | 20=20CH | X=100Ghz | F=Flat top | C21=21CH | 00=No | MT=120 ×70× 11 | RB=Ribbon | 05=0.5m | 0=No | B=Dual Axis | ||
| 32=32CH | Y=20Ghz | G=Gaussian | H21=21CH | MU=MUX | PM=120 ×80× 18 | 09=0.9mm Loose Tube | 10=1.0m | 1=FC/UPC | S=Slow Axis | |||
| 40=40CH | ....... | ....... | DE=Demux | LG=155 ×129×29 | 20=2.0mm PVC Tube | 30=3.0m | 2=FC/APC | F=Fast Axis | ||||
| 48=40CH | A=50Ghz | C60=61CH | MD=Mux&Demux | 19=484 ×250×44 | 30=2.0mm PVC Tube | XX= Customized | 3=SC/UPC | X= Customized | ||||
| 88=88CH | B=75Ghz | L75=75CH | AD=Add/Drop | XX= Customized | XX= Customized | 4=SC/APC | ||||||
| 96=96CH | C=150Ghz | XX=Customized | 5=LC/UPC | |||||||||
| 6=LC/APC | ||||||||||||
| X= Customized |
| Example Part Number | ||||||||||||
| PMAAWG-40XC21FMUST0910-2S | ||||||||||||
| PM AAWG ,100Ghz 40Channel Port ,Wavlelength C21~C60,Mux Module,Matel BOX 120 ×70× 11, Fiber is PM1550nm, Fiber length 1 m with 0.9mm Blue Losse Tube ,FC/APC Connector, slow axis aligned to key. |
||||||||||||
Q1: What is the main purpose of this Ultra-High Density PM AAWG Module?
A: This product is mainly used in high-capacity DWDM wavelength division multiplexing/demultiplexing systems.
Q2: How many channels and channel spacing does this PM AAWG support?
A: This module supports ultra-high density channel configurations from 32CH to 96CH, with selectable channel spacing of 150GHz, 100GHz, and 50GHz. With a 50GHz spacing, a single module can support multiplexing and demultiplexing of up to 96 independent wavelengths, suitable for increasing the capacity of existing fiber optic networks.
Q3: What are the advantages of the PM AAWG compared to a regular AAWG?
A: PM AAWG utilizes PM1550 polarization-maintaining fiber and high-precision PLC planar waveguide technology, maintaining a stable polarization state during multi-channel multiplexing/demultiplexing, reducing polarization-dependent crosstalk and bit error risks. It is particularly suitable for coherent optical communication, polarization-sensitive test platforms, and high-end optical transmission systems.
Q4: Does this product support customization?
A: Customization is supported. Customers can customize the number of channels, channel spacing, passband type, starting channel, Mux/Demux type, package size, sheath type, fiber length, connector type, and working axis direction according to system requirements. Connectors available include FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, LC/APC, or other customized specifications.
