| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |

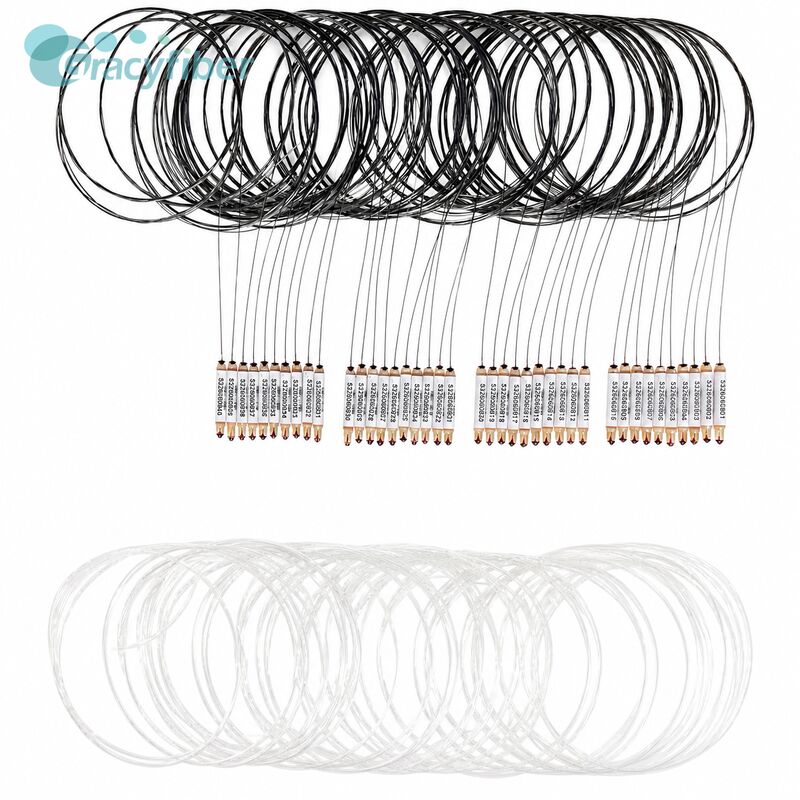

GRACYFIBER's polarization-maintaining dense wavelength division multiplexer (PM DWDM) is a high-density, high-precision optical routing engine designed for wavelength multiplexing and demultiplexing within extremely tight channel spacing while maintaining absolutely stable polarization states. This series comprehensively covers the 1260–1360 nm spectrum and the C-band 1525–1565 nm spectrum, strictly adhering to ITU Grid standards (C11–C64). Manufactured using precisely aligned polarization-maintaining fibers (PM 1300 / PM1550), it supports flexible configurations from 3 ports to up to 16 channels (16CH). Whether used to enhance coherent communication capacity in backbone networks or in fiber optic amplifier systems and high-sensitivity sensor arrays, this module delivers sharp filtering performance while ensuring high-fidelity transmission of polarized signals.
| Parameter | Unit | Value | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Operating Wavelength | nm | 1260~1360,1525~1565 | |||||||
| Center Wavelength | nm | ITU Grid(C11 ~C64) or Customized | |||||||
| Channel Spacing | - | 100GHz (0.8nm), 200G(0.8nm) | |||||||
| Channel Passband | Min | nm | ±0.11 (100GHz), ±0.25 (200GHz), | ||||||
| Channel | - | 3Port | 2CH | 4CH | 8CH | 16CH | |||
| Insertion Loss | Max | nm | Pass | Ref | 1.2 | 1.6 | 3.0 | 4.5 | |
| 0.8 | 0.6 | ||||||||
| Isolator | Adjacent | Min | nm | 30 (Pass) | 30 | 30 | 30 | 30 | |
| Non-adjacent | Min | nm | 15 (Ref) | 40 | 40 | 40 | 40 | ||
| Extinction Ratio | Min | nm | 20 | 20 | 20 | 18 | 16 | ||
| Operating Axis | - | Dual Axis or Pass Port Single Axis | |||||||
| Return Loss | Min | dB | 50 | 45 | 45 | 40 | 40 | ||
| Directivity | Min | dB | 50 | ||||||
| Power Handing | Max | mW | 300 | ||||||
| Fiber Type | - | PM 1300/ PM1550 | |||||||
| Fiber Coating | mm | 0.25 / 0.9/2.0/3.0mm Red/Blue loose tube | |||||||
| Fiber Length | cm | 100 | |||||||
| Connector | - | FC/APC,FC/UPC,or Customized | |||||||

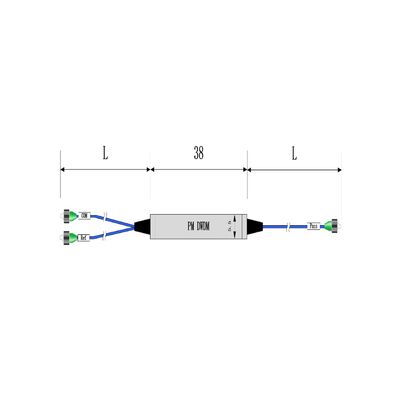

| Dimensions (HxWxD) |
250μm Bare Fiber | mm | φ5.5×35 | ||||||
| 900μm Loose Tube | mm | φ5.5×38 | |||||||
| 2mm/3mm Tube | mm | 80×58×8,100×80×10,120×80×18 | |||||||
| Rack Mount | mm | 155×129×29,482×250×44 | |||||||
| Operating Temperature | °C | -5~65 | |||||||
| Storage Temperature | °C | -40~85 | |||||||
|
Remark: * Above specifications are for devices without the connectors. * For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower. * The PM fiber and the connector key are aligned to the slow axis. fast axis is blocked. |
(Designed to address the dual challenges of dense band crosstalk and polarization drift)
Addresses Pain Points/Value: Supports industry-standard 100GHz (0.8 nm) and 200GHz channel spacing, with channel passbands reaching 0.11 nm (100GHz) and 0.25 nm (200GHz) respectively. This empowers network architects to extract maximum transmission capacity from limited C-band resources, perfectly matching the large-scale expansion needs of backbone networks.
Pain Points Solved/Value Boost: A minimum polarization extinction ratio (ER) of 20 dB is achieved in 3-port, 2-CH, and 4-CH configurations (Note: ER decreases by 2 dB with connectors). At the factory, both the polarization-maintaining fiber and connector key are precisely aligned to the slow axis, blocking the fast axis. This industrial-grade single-axis alignment control completely eliminates polarization mode dispersion (PMD) crosstalk in polarization-mux coherent systems.
Pain points addressed/value: The maximum insertion loss of the 2-channel module is only 1.2 dB, and even the fully loaded 16-channel module has its maximum insertion loss strictly controlled within 4.5 dB (Note: IL increases by 0.3 dB with connectors). Combined with extremely high isolation of at least 30 dB between adjacent channels and at least 40 dB between non-adjacent channels, it provides you with extremely high purity optical signal-to-noise ratio (OSNR) during multi-wavelength high-power concurrent operation.
Pain points addressed/value benefits: Capable of handling continuous optical power up to 300 mW, with a maximum return loss and directivity of 50 dB (Note: RL decreases by 5 dB with connectors). Supports stable operation over a wide temperature range of -5°C to 65°C, ensuring absolute safety for both internal high-power fiber amplifier use and field scientific research.
| DWDM | - | 1 | 2 | 2 | 3 | 5 | 7 | - | 8 | 9 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Port | Channel Spacing | Initial Pass Channel |
Mux/ Demux |
Package Dimension | Jacket Type | Fiber Length |
- | Connector Type | Working Axis |
|
| - | XX | X | XXX | XX | XX | XX | XX | - | X | X | |
| PM DWDM | A1=1*1 Device | X=100Ghz | C21=21CH | 00=No | 53=Ø5.5 × 35 | 02=250um Bare fiber | 01=0.1m | 0=No | B=Dual Axis | ||
| A2=1*2 Device | Y=20Ghz | H21=21CH | MU=MUX | 54=Ø5.5 × 38 | 06=0.6mm Loose Tube | 05=0.5m | 1=FC/UPC | S=Slow Axis | |||
| 24=2*4 Device | ....... | ....... | DE=Demux | 90=90 × 20× 10 | 09=0.9mm Loose Tube | 10=1.0m | 2=FC/APC | F=Fast Axis | |||
| 02=1×2 Module | A=50Ghz | C60=61CH | MD=Mux&Demux | MS=80 ×58× 8 | 20=2.0mm PVC Tube | 30=3.0m | 3=SC/UPC | X= Customized | |||
| 08=1×8 Module | B=75Ghz | L75=75CH | AD=Add/Drop | PS=100 ×80× 10 | 30=2.0mm PVC Tube | XX= Customized | 4=SC/APC | ||||
| 40=1×40 Module | C=150Ghz | XX=Customized | PM=120 ×80× 18 | XX= Customized | 5=LC/UPC | ||||||
| XX= Customized | XX= Customized | 6=LC/APC | |||||||||
| X= Customized |
| Example Part Number | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PMDWDM-08XC21MUPS0910-2S | ||||||||||
| PM DWDM ,100Ghz 8Channel Port ,Wavlelength C21~C28,Mux Module,ABS BOX 100 ×80× 10, Fiber is PM1550 Fiber length 1 m with 0.9mm Blue Losse Tube ,FC/APC Connector, slow axis aligned to key. |
![]()
![]()
![]()
![]()
