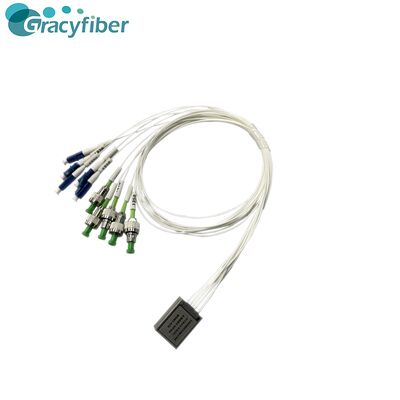

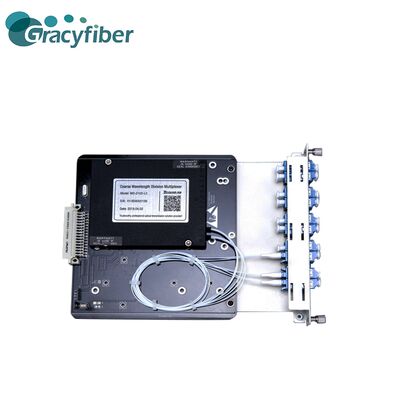

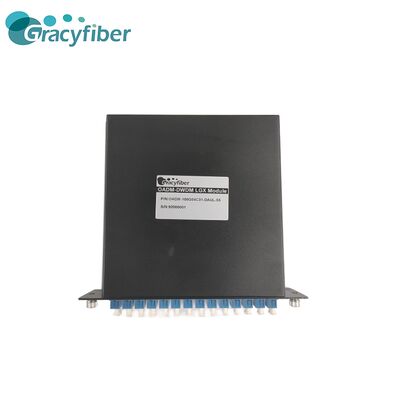

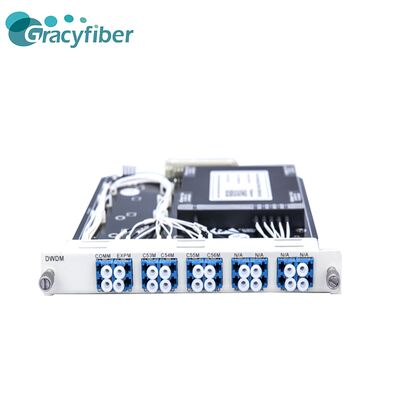

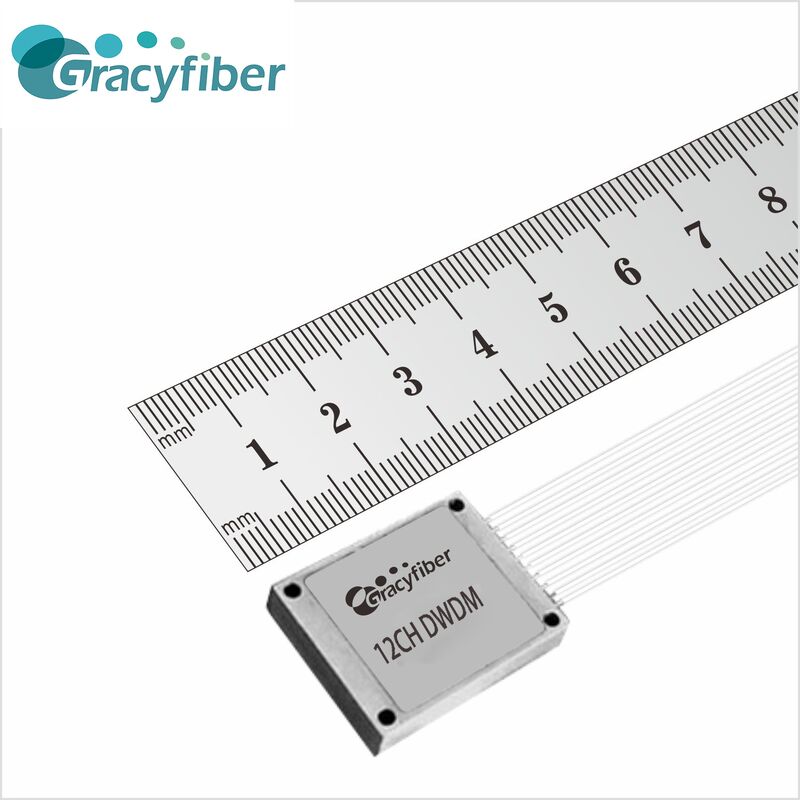

High-Performance DWDM Multiplexers And OADM Modules (2 To 32 Channels)
GRACYFIBER's high-performance DWDM Mux/Demux and OADM series are passive expansion engines designed for high-speed, high-capacity optical communication networks.
| Parameter | Unit | Value | |||||
|---|---|---|---|---|---|---|---|
| Operating Wavelength | nm | 1525~1565 | |||||
| Special Port | nm | Monitor,1310 (1260~1360) | |||||
| Center Wavelength | nm | ITU Grid(C11 ~C64) or Customized | |||||
| Channel Spacing | nm | 100GHz (0.8nm), 200G(0.8nm) | |||||
| Channel Passband | Min | nm | ±0.11 (100GHz), ±0.25 (200GHz), | ||||
| Channel | - | 2CH | 4CH | 8CH | 16CH | 32CH | |
| Port Insertion Loss | Max | dB | 1.3 | 1.8 | 2.8 | 4.5 | 4.8 |
| Isolation | Adjacent | dB | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 |
| Non-adjacent | dB | ≥40 | ≥40 | ≥40 | ≥40 | ≥40 | |
| 1310 Port | Max | dB | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Ripple | Max | dB | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| PDL | Max | dB | 0.5 | ||||
| Return Loss | Min | dB | 40 | ||||
| Directivity | Min | dB | 50 | ||||
| Power Handing | Max | mW | 300 | ||||
| Fiber Type | - | G67A1/ A2/ B3 or SMF-28 | |||||
| Fiber Coating | um | 250 µm / 900 µm loose tube | |||||
| Fiber Length | mm | 1000 | |||||
| Connector | - | LC/UPC or Customized | |||||
| Dimensions (HxWxD) | mm | 80x58x8, 120x80x18, 155x129x29, 482x250x44 | |||||
| Operating Temperature | °C | -5~65 | |||||
| Storage Temperature | °C | -40~85 | |||||
3. Application Scenarios
Metro and Regional Networks
Long-Haul & Backbone Networks
Data Center Interconnect (DCI)
5G Fronthaul/Midhaul/Backhaul
Enterprise & Campus Networks
CATV and Hybrid Networks
