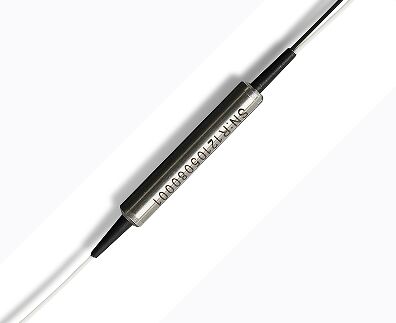

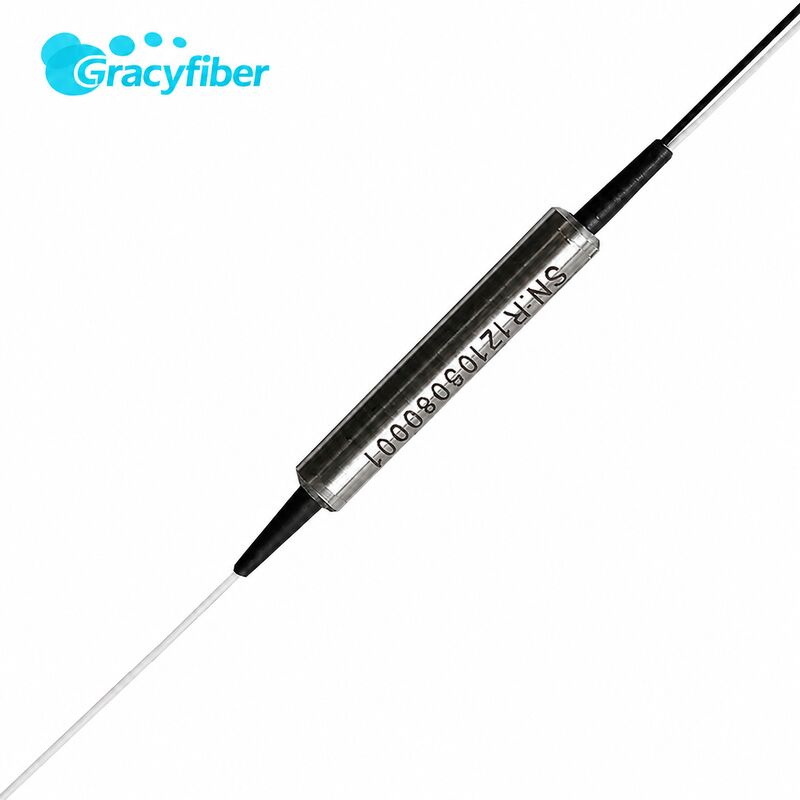

Panda Fiber Optic Coupler 1x2 2x2 Polarization Maintaining Splitter 1310nm 1550nm 1064nm

Brand Name:	Gracyfiber
Model Number:	PMC-2213150ST20910-00(S)
MOQ:	100pcs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE RoSH

Document:

A-2x2- Filter PM Fiber Coup...27.pdf

Name:

Polarization Maintaining Splitter

Fiber Type:

Panda Fiber

Coating Diameter:

245 µm

Cladding Diameter:

125 µm

Core Diameter:

3.0 µm

Operating Wavelength:

1310 Nm / 1550 Nm

Extinction Ratio:

≥ 20 DB

Packaging Details:

φ3.0×35 /φ3.0×38/ 90×20×10mm

Highlight:

Panda Fiber Optic Coupler

1064nm Fiber Optic Coupler

Polarization Maintaining Splitter 1310nm

Product Description

1x2 2x2 PM Fiber Coupler Polarization Maintaining Splitter With 1310nm 1550nm 1064nm Wavelength Panda Fiber And Extinction Ratio ≥20dB

Product Overview

1×2 / 2×2 Filter PM Fiber Standard Coupler, employing panda-type polarization-maintaining fiber and filter fusion processing, can achieve stable beam splitting or combining in the 1310nm / 1550nm / 1064nm bands. It supports both 1×2 and 2×2 port structures and various splitting ratios such as 50/50, 20/80, 10/90, 5/95, and 1/99. The device has a bandwidth of ± 40nm at 1310/1550nm and ± 20nm at 1064nm, with typical redundant loss as low as 0.7～1.2dB, return loss ≥50dB, and power handling ≤300mW. It is suitable for use as a basic beam splitter in various polarization-sensitive communication, amplification, and measurement systems.

Product Advantages

Multiple Splitting Ratios Available for Convenient Power Design - From 50/50 equal power allocation to 1/99 small tap splitting, the datasheet provides upper limits for insertion loss in 1×2 and 2×2 structures for each splitting ratio (e.g., 50/50: 1×2 ≤3.6dB, 2×2 ≤4.0dB; 1/99: 1×2 ≤21.7/0.4dB). Engineers can intuitively perform link power budgeting and solution selection.
Low Redundant Loss for Ample System Margin - Typical redundant losses are 1×2 ≤0.7/0.8dB and 2×2 ≤1.0/1.2dB. This results in less impact on OSNR and power margin when multiple devices are connected in series or during long-distance transmission, which is beneficial for high-performance system design.
Reliable Polarization-Maintaining Performance and Flexible Modes - Two polarization operating modes are provided:
- Type 1: Fast axis blocked (slow axis only), extinction ratio ≥22dB
- Type 2: Both axis working, 1×2 type ≥20dB, 2×2 type ≥18dB
Simultaneously, PM fiber and connector keying aligns with the slow axis, while the fast axis is blocked, facilitating unified polarization direction within the system, which is particularly beneficial for polarization-sensitive applications such as coherent communication, interferometry, and polarization-maintaining amplifiers.
High Return Loss and High Stability - Return loss ≥50dB effectively suppresses the impact of end-face reflections on the laser, amplifier, and detector; combined with an operating temperature range of -5～+65℃, a storage temperature range of -40～+80℃, and a power handling capacity of ≤300mW, it can operate stably for extended periods in computer rooms, laboratories, and most engineering environments.
Rich Interface and Structure Options for Easy Integration - Standard uses Panda polarization-maintaining fiber and 1.0±0.1m pigtails, with optional FC/APC, FC/UPC, and other connectors; supports 1×2 and 2×2 port structures, usable as a standard splitter, or for building redundant, bundled, or interference topologies, facilitating equipment manufacturers to create a series of products on the same platform.

Product Features

Parameters	Unit	1 x 2	2 x 2
Operating Wavelength	nm	1310, 1550, 1064	1310, 1550, 1064
Operating Bandwidth	nm	±40 (1310/1550) ±20 (1064)	±40 (1310/1550) ±20 (1064)
Typical Excess Loss	dB	≤0.7 (1310/1550) ≤0.8 (1064)	≤1.0 (1310/1550) ≤1.2 (1064)
Uniformity	dB	≥0.4 (1310/1550) ≥0.5 (1064)	≥0.6 (1310/1550) ≥0.8 (1064)
Extinction Ratio Type 1 (Fast axis blocked)	dB	≥22	≥22
Extinction Ratio Type 2 (Both axis working)	dB	≥20	≥18
Return Loss	dB	≥50

Package Outline

Package Dimensions:

250 µm Bare Fiber Type: Steel tube packaging, approximately φ 3.0×35mm
0.9mm Loose Tube Type: Steel tube packaging, approximately φ 3.0×38mm
2.0 / 3.0mm Sheath Type: Box-type packaging, 90×20×10mm, suitable for chassis or tray mounting

The mechanical diagram shows that the pigtails at both ends are 1000±50mm long, the central steel tube is approximately 38mm long, and the total length is approximately 55mm. The overall structure is compact and easy to arrange within the module.

Fiber Optics and Pigtails:

Fiber Type: Panda Polarization Maintaining Fiber
Standard Pigtail Length: 1.0±0.1m, customizable upon request
Optional Sheaths: 250µm bare fiber, 0.9mm tube, 2.0mm / 3.0mm loose tube

Connector and Axial Alignment:

Standard Connectors: FC/APC, FC/UPC, others such as SC/UPC, SC/APC, LC/UPC, LC/APC can be customized according to order information
The specifications state that with connectors, insertion loss IL increases by approximately 0.3dB, return loss RL decreases by approximately 5dB, and extinction ratio ER decreases by approximately 2dB. Allow for margins when designing link budgets.

Applications

EDFA (Erbium-Doped Fiber Amplifier)
Fiber Optic Instrument
Coherent Communication
Power Monitoring
Fiber Sensor
