| Brand Name: | Gracyfiber |
| Model Number: | PMC-121350ST20910-22(S) |
| MOQ: | 100pcs |
| Payment Terms: | T/T |
1x2 TFF Filter PM Fiber Coupler 50 50 1310nm Polarization Maintaining Splitter Low Insertion Loss For EDFA Coherent Communication And Power Monitoring
This product is a 1*2 TFF Filter PM Fiber Coupler 50/50 (1*2 Filtered Polarization-Maintaining Fiber Standard Coupler), operating wavelength 1310nm, bandwidth ±40nm. It employs a thin-film filter (TFF) structure and Corning panda-type polarization-maintaining fiber to achieve two 50/50 outputs while maintaining polarization characteristics of one input light. Typical insertion loss ≤3.8dB, extinction ratio ≥20dB, return loss ≥50dB, directivity ≥50dB, and maximum power handling capacity ≤500mW. It is suitable for polarization-sensitive systems such as EDFA, fiber optic instruments, coherent communication, power monitoring, and fiber optic sensing.
Within the 1310nm±40nm range, the maximum insertion loss for 50/50 splitting is ≤3.8dB. Clear upper limits for insertion loss are also given for different splitting ratios such as 20/80, 10/90, 5/95, and 1/99 (e.g., ≤8.2/1.7dB for 20/80, ≤22.2/0.6dB for 1/99), facilitating link power budgeting and solution selection.
The coupler extinction ratio is ≥20dB. It uses Corning Panda polarization-maintaining fiber. The specifications state that PM fiber and connector key alignment is on the slow axis, supporting dual-axis operation. This allows it to maintain polarization in the classic "slow axis operation" mode while also meeting the needs of some dual-polarization applications.
Return loss ≥50dB, directivity ≥50dB, effectively reducing the impact of end-face reflections and port-to-port crosstalk on lasers, amplifiers, or high-sensitivity detectors, improving system stability and signal quality.
Maximum power handling capacity ≤500mW, operating temperature -10~+65℃, storage temperature -40~+85℃, allowing for long-term stable operation in computer rooms, laboratories, and most engineering environments.
In addition to 50/50, the specification sheet provides insertion loss parameters for various splitting ratios, including 20/80, 10/90, 5/95, and 1/99. Customers can flexibly configure these according to their "main link + monitoring/extraction" requirements. Bare fiber, 0.9mm tube, 2.0/3.0mm sheath, and different packaging options are also available, reducing the difficulty of secondary development.
| Parameters | Unit | 1 x 2 |
|---|---|---|
| Splitting Ratio | nm | 50/50 |
| Operating Wavelength | nm | 1310 |
| Operating Bandwidth | nm | ±40 |
| Insertion loss | nm | ≤3.8 |
| Extinction Ratio | dB | ≥20 |
| Return Loss | dB | ≥50 |

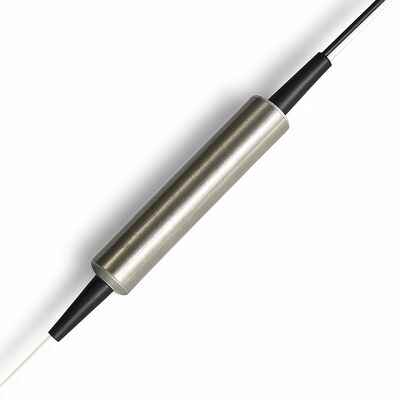

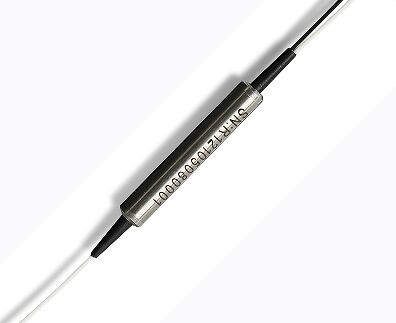

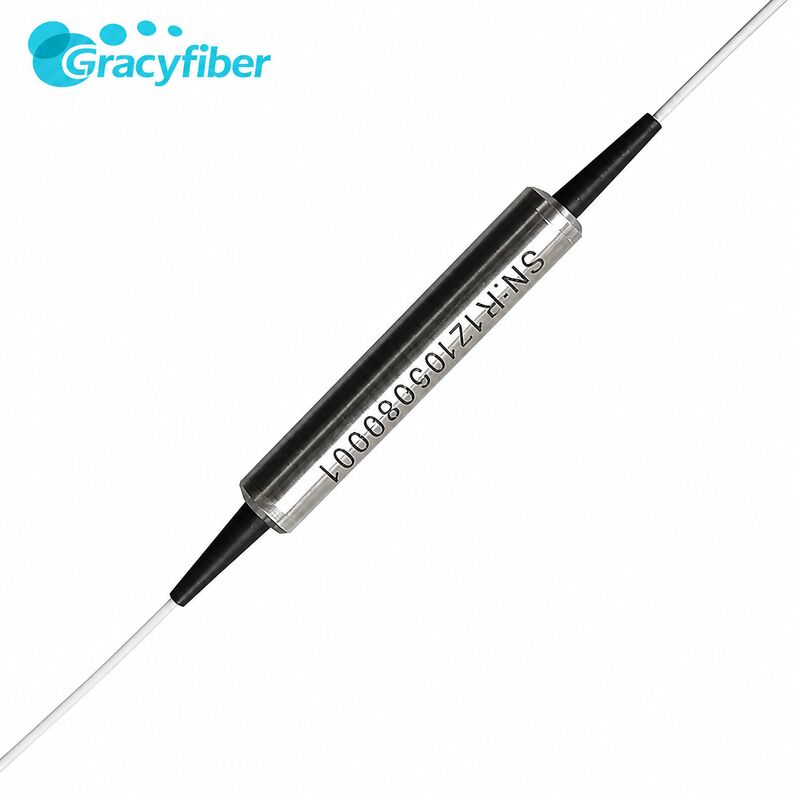

The structural diagram on page 2 of the specification shows that the main body consists of a φ5.5*38mm steel tube in the middle, with optical fibers extending from both ends for easy fixation in a tray or frame.
