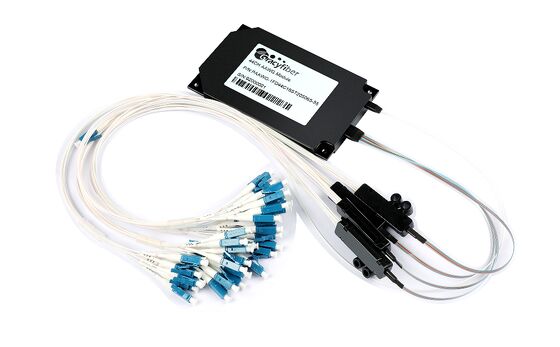

1525nm-1565nm Polarization Maintaining C Band DWDM Module 48CH 100G PM AAWG MUX DEMUX Metal Module

  The 48CH 100G PM AAWG MUX/DEMUX Metal Module is a high-density polarization-maintaining wavelength division multiplexing/demultiplexing module based on Arrayed Waveguide Grating (AAWG) technology. It operates in the C-band and supports 48 DWDM channels with a 100 GHz (approximately 0.8 nm) channel spacing. The product integrates multiple MUX/DEMUX ports within the same metal enclosure and offers two passband shapes: Flat-top for uniform bandwidth and Gaussian for systems more sensitive to insertion loss.

  The module operates over a wavelength range of 1525–1565 nm, covering ITU-T C15–C62 grid channels, and can be customized according to the ITU-T Grid (e.g., C21–C60) or customer-specified wavelength requirements. The product uses G657.A1 single-mode fiber with a 0.9 mm loose tube, features ribbon fiber input and fan-out output, with standard fiber lengths of 0.5 m (ribbon) + 0.5 m (fan-out). It comes factory-terminated with FC/APC connectors, keyed to align the slow axis, suitable for polarized system installation and use.

• High Integration, Space-Saving

  A single module provides 48CH MUX/DEMUX functionality, with a metal enclosure measuring only 120×70×11 mm. It is suitable for high-density chassis or compact module designs, reducing the number of boards and saving cabinet space.

• Optional Flat-Top/Gaussian Passband to Match Different System Requirements

  The flat-top type is better for high-speed modulated signals that require a "wide bandwidth + good uniformity"; the Gaussian type has advantages in insertion loss, suitable for scenarios sensitive to power budgeting. Customers can choose according to link planning.

• Polarization-Maintaining System Friendly

  The default slow-axis alignment key tail fiber design helps to form a unified polarization reference with polarization-maintaining amplifiers, couplers, jumpers, and other devices, reducing polarization-related fluctuations and laying the foundation for high-performance coherent systems and precision sensing.

• Easy Installation and Maintenance

  Ribbon fiber + fan-out structure facilitates in-chassis wiring and batch splicing, while the unified FC/APC interface is compatible with existing platforms. When replacing modules, only a few screws and connectors need to be removed, reducing maintenance costs.

• Supports Flexible Customization and Fast Delivery

  Channel ranges (e.g., C21–C60), passband types (Flat-top / Gaussian), tail fiber length, jacket color, connector types, and more can be customized according to project requirements, balancing standardization and flexibility, which is convenient for OEMs to plan series products.

For detailed specifications, please refer to the PDF.

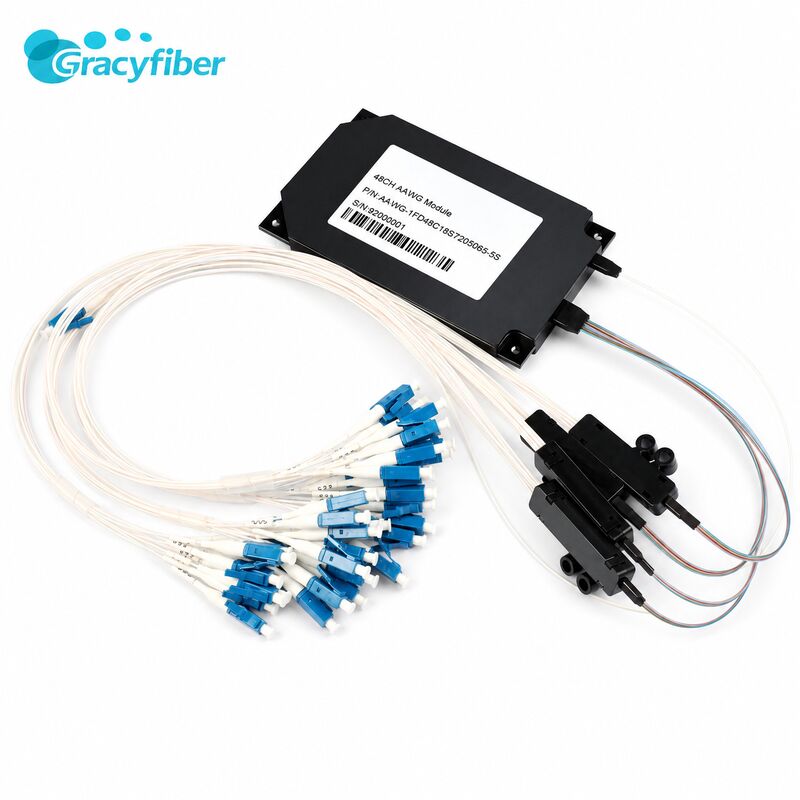

• Package Type: Metal Module
• Dimensions: Approximately 120 × 70 × 11 mm
• Structure:
  • One end is a common port (COM) using a single G657.A1 fiber lead-out.
  • The other end has a 48-core ribbon fiber, with fan-out single fibers to each channel port.
• Pigtail Configuration:
  • Ribbon fiber length: 0.5 m (customizable)
  • Fan-out fiber length: 0.5 m (customizable)
  • Fiber diameter and jacket: 0.9 mm loose tube, white as standard color
  • Connector: Standard FC/APC, LC/UPC, SC/APC, etc., available upon request

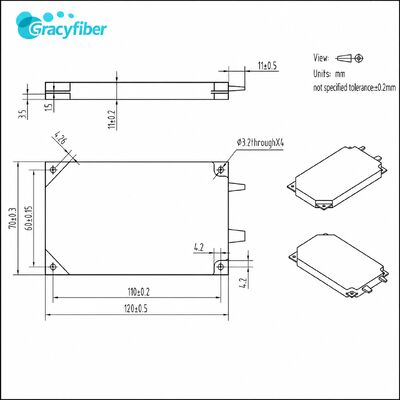

• Mechanical Drawing: The module has mounting holes at the four corners for easy installation in 1U/2U racks or trays (see page 3 of the specification for mechanical dimensions illustration).

• DWDM transmission system
• ROADM nodes
• Broadband bearer and aggregation network
• CATV / video distribution
• Coherent / polarization-maintaining fiber systems
