Corning Panda Fiber Optic Coupler 30/70 1550nm Polarization Maintaining Splitter

The 1*2 TFF Filter PM Fiber Coupler 30:70 is a 1*2 polarization-maintaining fiber coupler based on thin-film filtering technology and panda-type polarization-maintaining fiber. It is specifically designed for achieving stable and controllable unequal optical power distribution in the 1550nm band. The device has a standard splitting ratio of 30/70, with one output receiving approximately 30% of the optical power and the other approximately 70%. It is suitable for power ratio configurations between the main link and monitoring link, and between primary and auxiliary services. The product operates at a wavelength of 1550nm with a bandwidth of ±40nm, covering the typical C-band window while also accommodating a certain wavelength tolerance. The device uses Corning Panda polarization-maintaining fiber with a standard pigtail length of 1.0±0.1m. Options include bare fiber, 0.9mm loose tube, or 2.0/3.0mm sheath. Multiple connectors are available, including FC/APC and FC/UPC. The connector keying aligns with the slow axis of the polarization-maintaining fiber to ensure effective polarization maintenance.

In terms of overall application scenarios, this 30:70 splitting ratio polarization-maintaining coupler is primarily intended for various polarization-sensitive systems requiring "main power output + secondary power branching". Typical applications include use in EDFAs or other fiber optic amplification modules, where most of the optical power is used for main channel transmission, while a smaller portion is diverted to monitoring, power sampling, or cascaded systems; in fiber optic instruments, it can serve as a beam splitter for internal reference and working light, with one output used for illumination of the object under test or signal link, and the other output used as reference or monitoring light; in coherent communication systems, it can distribute the input signal to different branches in a 30/70 ratio for local oscillator links, phase reference, or online performance monitoring; in fiber optic sensing and power monitoring applications, it can be used to construct a "service + monitoring" dual-channel structure, achieving real-time detection without significantly affecting the main link power.

From the specifications, this 1*2 Filter PM Fiber Coupler 30:70 combines low insertion loss, high extinction ratio, and high return loss, among other advantages. For a 30/70 splitting ratio, the insertion loss of the two paths is limited to ≤5.8dB (30% end) and ≤2.0dB (70% end), respectively, maintaining a good power budget even in an asymmetric splitting structure. The device ensures stable operation within a 1550nm ±40nm bandwidth, making it suitable for use with C-band light sources and optical modules. An extinction ratio of at least 20dB effectively suppresses unwanted polarization components, ensuring good polarization selectivity in the polarization-maintaining link. Return loss ≥50dB helps reduce the impact of reflected light on the laser, amplifier, and high-sensitivity receiver. The maximum power handling is ≤500mW, covering most medium-power applications. The operating temperature range is -10～+65℃, and the storage temperature range is -40～+85℃. The enclosure and packaging structure are designed for reliability, making it suitable for long-term stable operation in computer rooms and most experimental environments.

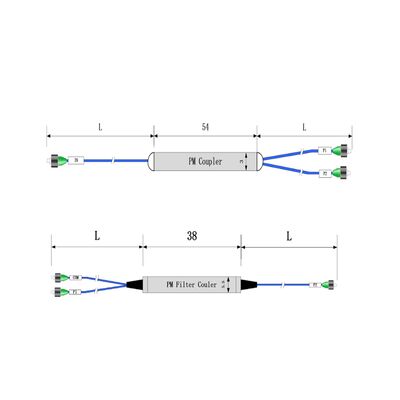

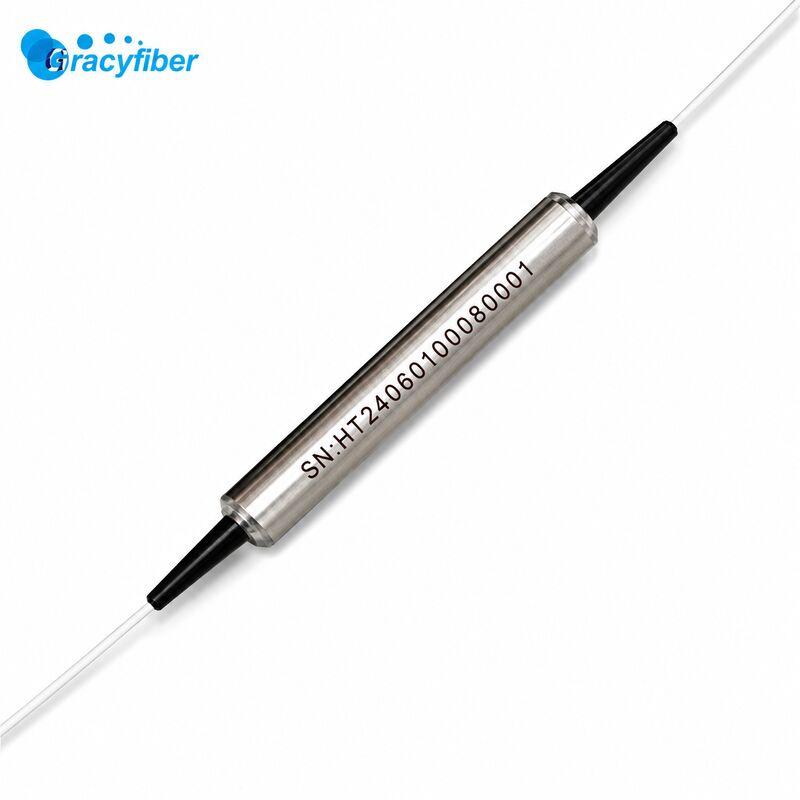

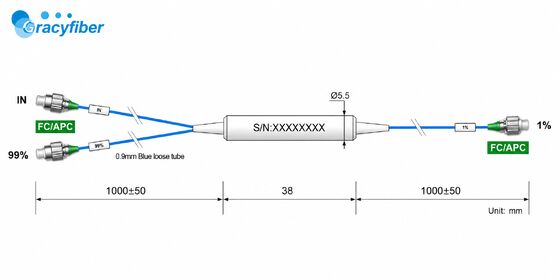

From a system integration and optical path design perspective, this 30:70 polarization-maintaining coupler is ideally suited for use as a "proportional beam splitting node" within modules or between systems. In overall system design, it can be placed at the output of a laser source or amplifier, sending 70% of the optical power to the main service channel and 30% to monitoring modules, optical power meters, or protection/bypass branches. In board or chassis-level systems, it can serve as a common distribution unit, providing different levels of input optical power to two boards with different functions. In the laboratory, engineers can use this device to quickly build a "main optical path + reference optical path" structure for interferometry experiments, link calibration, or multi-point measurements. The product supports three package sizes: 250μm bare fiber, 0.9mm loose-tube, and 2.0/3.0mm sheath. The bare fiber and 0.9mm versions are packaged in a Φ5.5*38mm steel tube, while the 2.0/3.0mm versions are packaged in a 90*20*10mm box, facilitating flexible installation in different spaces and mounting methods.

Compared to ordinary single-mode non-polarization fiber couplers, the advantage of this 1*2 30:70 Filter PM Fiber Coupler lies primarily in its polarization maintenance capability. The device uses Corning Panda polarization-maintaining fiber, and the PM fiber and connector key alignment is explicitly specified to suppress the slow axis and fast axis. This allows engineers to maintain a consistent polarization reference based on the key orientation during splicing and cabling, significantly reducing the impact of random polarization drift on system power, phase, and measurement stability. Secondly, compared to using multiple devices to achieve unequal splitting, this product can achieve a fixed ratio allocation with a single device, reducing fusion splices and connection points, and lowering cumulative insertion loss and potential failure risks from the source. Thirdly, the specifications not only provide detailed specifications for 30/70, but also list insertion loss ranges for various splitting ratios such as 50/50, 20/80, 10/90, 5/95, and 1/99, facilitating users to expand models within the same series as needed and maintain and manage them uniformly. Combined with clear ordering codes (covering fields such as number of ports, operating wavelength, splitting ratio, package type, fiber type, length, and connector type), the selection process can be greatly simplified, improving project implementation efficiency.

Overall, the 1*2 TFF Filter PM Fiber Coupler 30:70 is a high-performance polarization-maintaining splitter for polarization-sensitive applications such as EDFA, fiber optic instruments, coherent communication, power monitoring, and fiber optic sensing. It provides stable 30/70 power distribution within the 1550nm ±40nm band, while also featuring low insertion loss, high extinction ratio, high return loss, and good environmental adaptability. It allows for ample power and design margins for the system while maintaining polarization stability. Whether used as a fixed functional module in mass-produced equipment or as a flexible splitter node on experimental platforms, this product helps users achieve a reasonable configuration of "main link + monitoring/reference link," improving the observability, maintainability, and overall optical performance of the system. It is one of the essential foundational components worthy of priority consideration when building high-quality polarization-maintaining fiber solutions.
