1x16 PM Fiber Splitter 420nm 456nm Polarization Maintaining Fiber Splitter For Multi Channel Systems

1x16 PM Fiber Splitter 420 456nm Polarization Maintaining Fiber Splitter for Blue Violet Laser Fiber Sensing Optical Testing and Multi Channel Systems

Product Overview

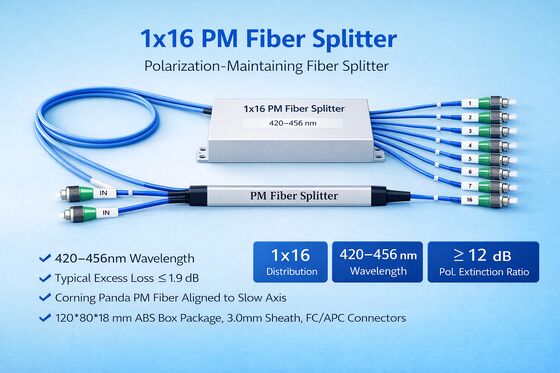

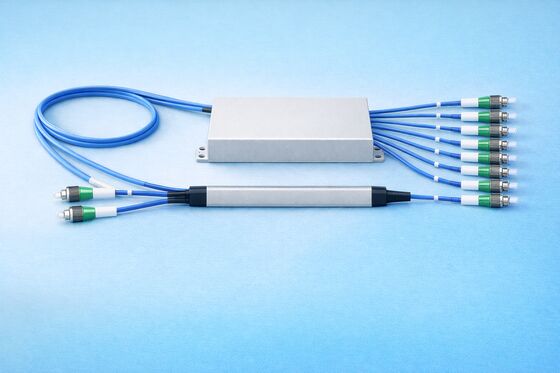

The 1*16 PM Fiber Splitter is a multi-channel optical power distribution device based on panda-type polarization-maintaining fiber. It is used to stably and evenly distribute one input beam to 16 output ports. The product operates in the 420–456 nm wavelength range, which is within the short-wavelength visible light band and is particularly suitable for applications related to blue-violet laser sources, such as precision optical instruments, fiber optic sensing, and scientific research systems. The device uses panda-type polarization-maintaining fiber as the input and output medium, with a standard pigtail length of 1.0±0.1 m. It can be fitted with 2.0 mm or 3.0 mm loose tube sheaths and uses a 120*80*18 mm box package. The default connector key alignment is on the slow axis, ensuring the consistency and controllability of polarization state across multiple outputs.

At the application level, the 1*16 polarization-maintaining splitter primarily serves system environments with requirements for polarization and multi-channel beam splitting. For fiber optic sensing systems requiring simultaneous multi-point illumination or multi-point detection, it can stably distribute a single blue-violet light source to 16 sensing probes for distributed monitoring of parameters such as stress, temperature, or displacement. In optical testing and metrology instruments, a highly stable light source can be proportionally distributed to multiple detection channels for synchronous calibration and multi-channel comparative testing. In coherent or polarization-dependent communication/experimental platforms, it can serve as a multi-user or multi-channel optical power distribution center, providing a unified light source for multiple experimental links or multiple local oscillator/signal channels. Furthermore, in power monitoring systems, some channels can be used for service optical paths, while others are used for online monitoring and backup, significantly improving system observability.

In terms of performance indicators, this 1*16 PM splitter possesses several key features. Its operating wavelength range is 420–456 nm, suitable for short-wavelength visible light sources, meeting the system requirements of special wavelength bands. Typical additional loss is strictly controlled (Excess Loss ≤19 dB), while loss uniformity ≤1.6 dB ensures relatively consistent power distribution among the 16 output ports, facilitating system calibration and algorithm compensation. The polarization extinction ratio is not less than 12 dB, maintaining good polarization differentiation among multiple outputs with the cooperation of polarization-maintaining fiber and key alignment design. Return loss ≥55 dB and directivity ≥50 dB effectively suppress end-face reflections and crosstalk signals, reducing interference to the pre-amplifier and sensitive devices. The maximum optical power handling is ≤0.3 W, the operating temperature range is -5～+65 ℃, and the storage temperature is -40～+80 ℃, allowing for long-term stable operation in conventional computer rooms, laboratories, and some industrial environments.

From a system integration perspective, the 1*16 PM Fiber Splitter is ideally suited as an "optical power distribution hub" within equipment or at the chassis level. In integrated modules or 1U/2U chassis, it can be installed after the light source output to evenly distribute a single 420–456 nm light source across 16 sub-modules, such as 16 detection channels, 16 sensor probes, or 16 independent test stations. On complex optical platforms, it can be used to unify the access of optical signals from different subsystems, then distribute them to different detection units via a main splitter, achieving a "main light source + multi-node" topology. Utilizing 2.0/3.0 mm loose tubing and standard connectors such as FC/APC, engineers can easily complete rack cabling and inter-device interconnection. Simultaneously, leveraging the default "slow axis alignment key" structural characteristic, a uniform polarization reference direction is maintained throughout the platform, reducing the difficulty of system debugging and maintenance.

Compared to a standard single-mode 1*16 splitter, this polarization-maintaining splitter's advantages primarily lie in polarization control and high reliability. First, the use of Panda polarization-maintaining fiber and alignment of the connector keys with the slow axis ensures a clear physical reference for the polarization direction between the input and the 16 outputs, significantly reducing the impact of random polarization drift on measurement accuracy, coherence contrast, and sensor sensitivity. Second, the standardized box-type packaging (120*80*18 mm) and standard pigtail length facilitate mass production and replacement, simplifying the overall system design. Third, the specifications clearly limit parameters such as insertion loss, loss uniformity, PER, return loss, and power handling capacity, and standardized ordering codes (number of ports, operating wavelength, packaging type, fiber sheath, length, connectors, etc.) help users quickly complete the selection process, making the overall solution more predictable and reproducible.

Overall, the 1*16 PM Fiber Splitter is a high-performance polarization-maintaining fiber splitter designed for multi-channel polarization-sensitive applications in the blue-violet light band, combining advantages such as multi-port power distribution, polarization maintenance, low reflection, and high reliability. It provides a stable and consistent light source distribution foundation for EDFA front-end optical paths, fiber optic sensor arrays, precision optical test systems, and multi-channel experimental platforms, significantly improving system scalability and test repeatability while ensuring controllable polarization characteristics. For equipment manufacturers and system integrators looking to build multi-channel, highly stable, and highly consistent optical systems in the 420–456 nm band, this 1*16 polarization-maintaining splitter is an ideal choice as a core component.
